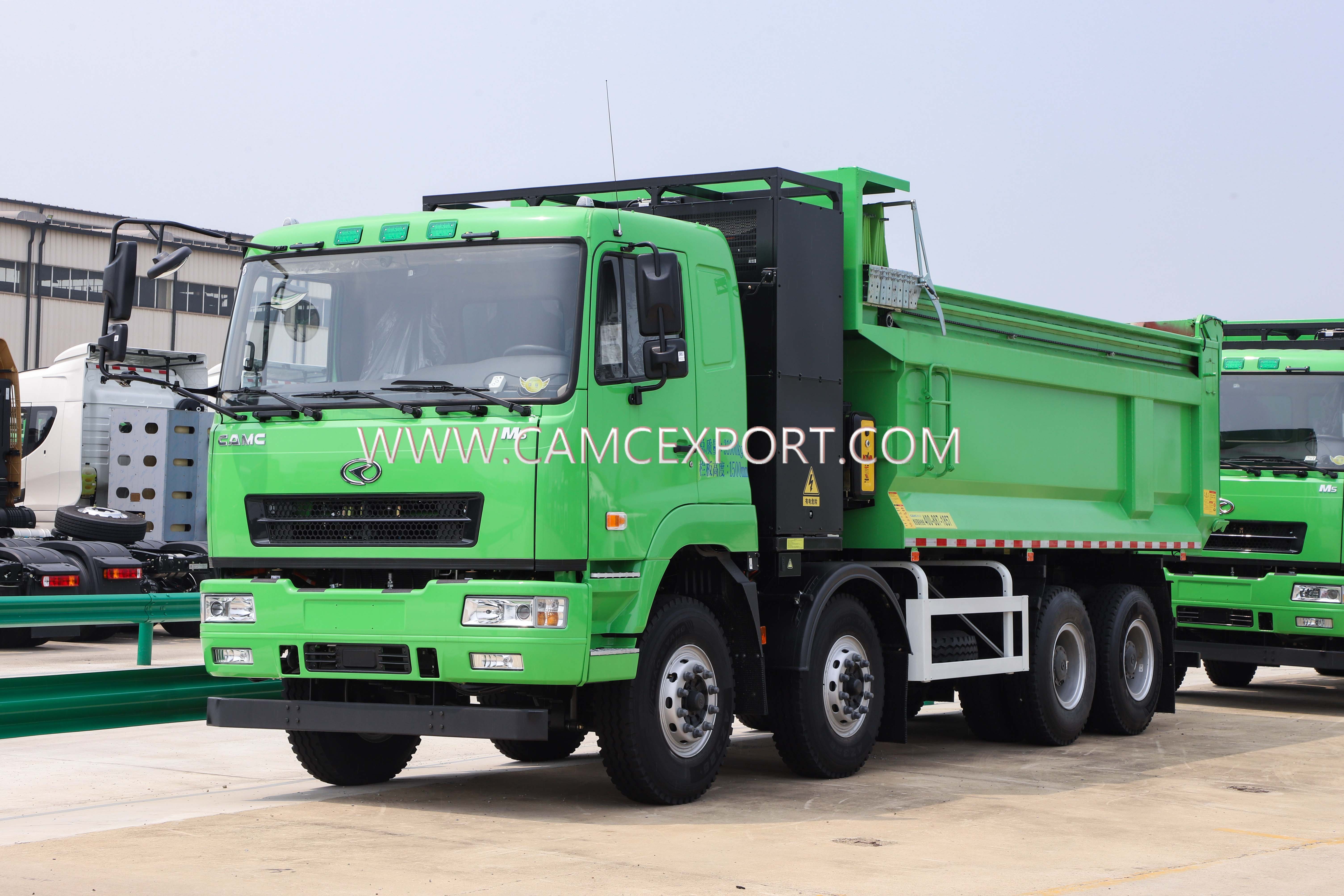

The CAMC M5 8 × 4 electric dump truck is a new energy benchmark vehicle designed specifically for heavy engineering transportation. With strong power, high efficiency, energy saving, and reliable quality, it has become the preferred equipment for heavy industries such as mining and urban construction. It has also passed the EU ECE R100 certification and become the preferred equipment for green infrastructure in markets such as Southeast Asia and the Middle East. It is exported in bulk to multiple overseas regions, in line with the global "dual carbon" strategy and the green operation needs of heavy engineering, demonstrating CAMC's technical strength and global market competitiveness in the field of new energy heavy commercial vehicles. The vehicle is equipped with a 600kWh high-density battery pack and a high-power electric drive system, which can continuously output 280kW of power, with a peak power of 450 horsepower/2000Nm of torque. The power output is strong and abundant, perfectly suitable for heavy transportation scenarios such as mining and urban construction; Innovative energy management technology achieves a single charge range of 350-420 kilometers (C-WTVC working condition), supports rapid charging to 80% in 1.5 hours, and is equipped with a multi-mode braking energy recovery system (efficiency ≥ 30%). Compared with traditional diesel engines, the comprehensive energy consumption is reduced by 40%, significantly reducing operating costs. The whole vehicle adopts a steel aluminum hybrid frame with a rated load of 35 tons. The structure is sturdy and lightweight, and has been rigorously verified to operate stably in all weather conditions from -30 ℃ to 50 ℃, adapting to complex climates and working conditions in different regions; The cab is equipped with panoramic monitoring and intelligent diagnostic system, and NVH silent technology ensures that the working noise is ≤ 62dB, balancing driving comfort and operational convenience. It comes standard with AEBS automatic emergency braking and tire pressure monitoring, providing comprehensive protection for the safety of heavy engineering operations in complex scenarios. Relying on CAMC's excellent overseas after-sales service system, it provides 24/7 service, multilingual technical support, and global spare parts supply, providing efficient, environmentally friendly, intelligent, and reliable new energy self dumping transportation solutions for global heavy engineering users.
| Horsepower: | 351 - 450hp |
| Forward Shift Number: | 9 |
| Maximum Torque(Nm): | 1500-2000Nm |
| Cargo Tank Dimension: | 5600*2350*1500MM |
| Capacity (Load): | 21 - 30T |
| Rear Camera: | 360° |
| ESC | Yes |
| Keywords: | ELECTRIC TRUCK |
| Wheelbase: | 1850+3200+1350 |
| Emission Standard: | ZERO |
| Fuel Type: | Electric |
| Dimensions (L x W x H) (mm): | 9520*2550*3360MM |
| Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | ≥30T |
| ABS | Yes |
| Touch Screen: | Yes |
Multimedia System: | Yes |
1. Strong power, suitable for heavy loads: Equipped with a 600kWh high-density battery pack and a high-power electric drive system, it can continuously output 280kW power and peak 450 horsepower/2000Nm torque, with strong power, perfectly suitable for heavy engineering transportation scenarios such as mining and urban construction.
2. Efficient and energy-saving, worry free range: Innovative energy management technology, 350-420km single charge range (C-WTVC working condition), 1.5-hour fast charging to 80%, braking energy recovery efficiency ≥ 30%, comprehensive energy consumption reduced by 40% compared to traditional diesel engines, outstanding economy.
3. Reliable and durable, with diverse scenarios: Steel aluminum hybrid frame, rated load of 35 tons, stable operation at -30 ℃ to 50 ℃ all day long; Standard AEBS automatic emergency braking, tire pressure monitoring, panoramic monitoring+intelligent diagnosis, safe and convenient, suitable for complex working conditions.
4. Global compliance and improved after-sales service: Passed the EU ECE R100 certification, it is the first choice for green infrastructure in markets such as Southeast Asia and the Middle East; Bulk export overseas, relying on a sound overseas after-sales system, 7 × 24-hour response, global spare parts supply, and worry free operation and maintenance.
1.Pre-Start Inspection：Carefully check whether the tire pressure meets the standard, whether the hydraulic oil level is within the standard range, and confirm that the cargo bed is fully reset without deviation.
2.Driving Precautions：Strictly prohibit overloading. Be sure to slow down when turning or driving on ramps, and keep a safe distance from the vehicle in front.
3.Unloading Operation Process：Park on a flat and solid ground, pull the handbrake tightly → unlock the cargo bed locking device → slowly operate the hydraulic lever to lift the cargo bed → reset the cargo bed after unloading and check again whether the locking state is firm.
4.Daily Maintenance Points：Clean the air filter regularly, inspect the tightness of the hydraulic system pipelines, and replace the engine oil in a timely manner according to the specified mileage.
1. Construction contractor in a Southeast Asian city: “Our main business is urban heavy engineering construction, and the CAMC M5 8 × 4 electric dump truck fully meets the needs. 450 horsepower/2000Nm torque power is strong, with a rated load of 35 tons that can easily handle heavy transportation. The 600kWh battery has a stable range of 350-420km, and a 1.5-hour fast charging greatly improves work efficiency. The comprehensive energy consumption has been reduced by 40%, saving a lot of costs. The adaptability is strong from -30 ℃ to 50 ℃, and the panoramic monitoring and silent design enhance the driving experience. It has been widely invested in urban construction projects. ”
2. Operations and procurement manager of a mine in the Middle East: “We focus on heavy-duty transportation in mines and have extremely high requirements for vehicle power, reliability, and environmental friendliness. This M5 8 × 4 electric dump truck performs outstandingly. The 280kW continuous output power is suitable for heavy loads in mines, and the braking energy recovery and low energy consumption characteristics significantly reduce operation and maintenance costs. The steel aluminum frame is sturdy and durable, and has been rigorously verified to adapt to extreme temperature differences. AEBS braking and tire pressure monitoring ensure operational safety. It has passed the EU ECE R100 certification, coupled with comprehensive overseas after-sales service, and has become the main dump truck type in mines. ”
