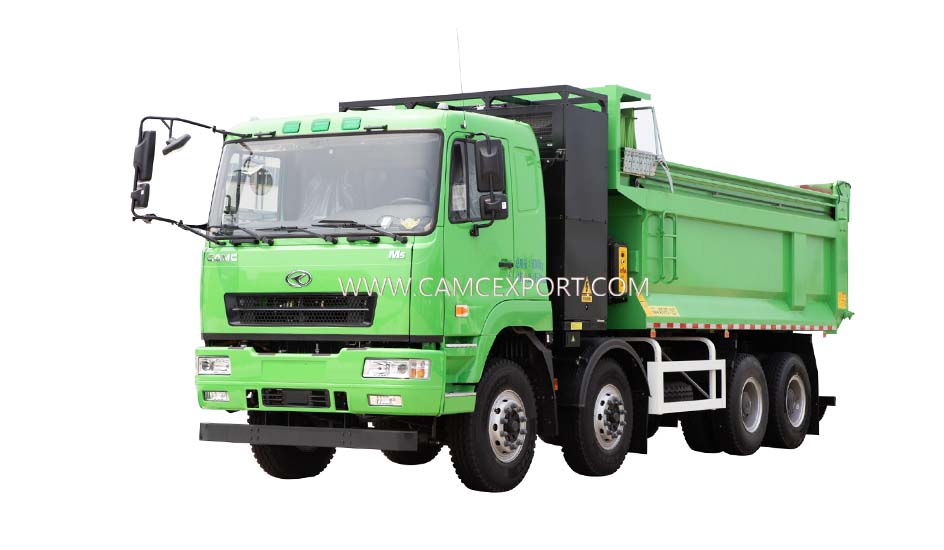

The CAMC M5 8 × 4 electric dump truck is a new type of new energy heavy-duty vehicle developed by Valin Motors, specially designed for urban infrastructure construction, short distance transportation in mines, and environmental engineering projects. With excellent performance and green advantages, it has become a benchmark model in the field of new energy commercial vehicles. The vehicle is equipped with a high-power electric drive system and a 600kWh high-capacity battery, with a maximum range of 420KM, a maximum output power of 450hp, and a peak torque of 2100Nm. It has strong power and stable output, sufficient range, and can easily adapt to high-intensity work scenarios such as heavy short distance transportation and construction site material transfer, perfectly balancing operational efficiency and reliability. Relying on the environmentally friendly characteristics of pure electric drive, vehicles achieve zero emissions and low noise, accurately matching the global "dual carbon" strategy and environmental compliance requirements in various regions, efficiently solving environmental pain points in urban construction, mining and other scenarios, and achieving a win-win situation between environmental compliance and operational efficiency. Its compact structure design not only facilitates flexible passage in narrow construction sites, mining areas and other restricted scenarios, but also effectively reduces operating and parking costs. Paired with a luxurious cab and rich intelligent functions, it greatly improves driving comfort and operational convenience. It can be widely used in various short distance transportation scenarios that require high environmental protection and efficiency, providing users with efficient, green, intelligent and reliable heavy-duty transportation full scene solutions. At the same time, compared with traditional fuel dump trucks, it can significantly reduce operating costs and further enhance user benefits.
| Horsepower: | 351 - 450hp |
| Forward Shift Number: | 9 |
| Maximum Torque(Nm): | 1500-2000Nm |
| Cargo Tank Dimension: | 5600*2350*1500MM |
| Capacity (Load): | 21 - 30T |
| Rear Camera: | 360° |
| ESC | Yes |
| Keywords: | ELECTRIC TRUCK |
| Wheelbase: | 1850+3200+1350 |
| Emission Standard: | ZERO |
| Fuel Type: | Electric |
| Dimensions (L x W x H) (mm): | 9520*2550*3360MM |
| Cargo Tank length: | 5.3-6.2M |
| Gross Vehicle Weight: | ≥30T |
| ABS | Yes |
| Touch Screen: | Yes |
Multimedia System: | Yes |

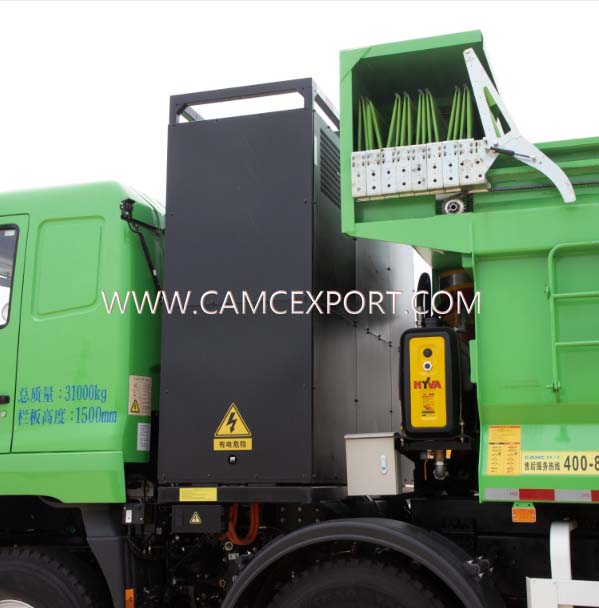

Efficient and environmentally friendly, cost leading: equipped with a high-power electric drive system and a 600kWh ultra large capacity battery, the maximum output power is 450hp, the peak torque is 2100Nm, the power is strong and the output is stable, and the CLTC endurance reaches 420KM, perfectly adapting to high-intensity scenarios such as heavy short distance transportation and construction site material transfer. Relying on pure electric drive, it achieves zero emissions and low noise, perfectly matching the global "dual carbon" strategy and environmental compliance requirements in various regions. At the same time, compared with traditional fuel vehicles, it significantly reduces the cost of use and is easier to pass urban environmental restrictions, improving operational compliance and efficiency.
Heavy duty stability, versatile scenarios: adopting 8 × 4 multi axle drive and reinforced chassis design, combined with large load-bearing cargo box and reliable suspension system, it can easily meet various heavy load operation needs such as urban infrastructure, mining short distance transportation, and environmental engineering. The compact structure design ensures flexible passage in restricted scenarios such as narrow construction sites and mining areas, effectively improving the adaptability of the work site and reducing vehicle operation and parking costs. One vehicle can cover multiple types of short distance transportation scenarios.

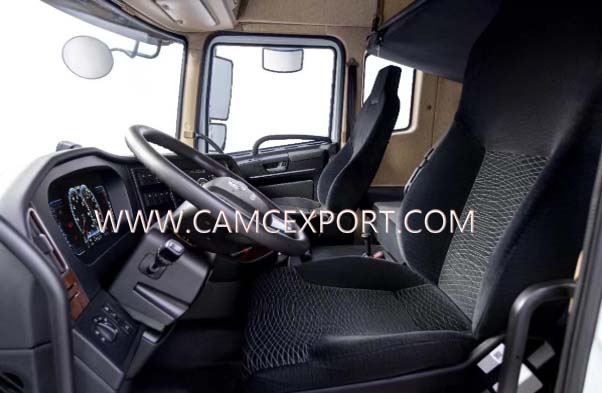

Comfortable and intelligent, worry free driving: equipped with a luxurious wide body cab and humanized comfort configuration, equipped with safety airbags, shock-absorbing seats, and intelligent assistance functions, greatly relieving long-distance and high-frequency driving fatigue; The car integrates a convenient control system and comfortable ventilation facilities, balancing work efficiency and driving experience, allowing drivers to maintain good condition under complex working conditions and reducing the risk of fatigue driving.
Reliable and durable, with long-term value: relying on the mature manufacturing technology of Hualing Automobile, the core electric drive system and battery pack of the whole vehicle have undergone rigorous working condition testing, with stable operation and low failure rate, and are suitable for harsh outdoor working environments. Equipped with multiple safety protection and braking devices as standard, and optional intelligent monitoring system, it comprehensively guarantees the safety of heavy-duty transportation and extends the service life of vehicles, providing users with efficient, green, intelligent, and reliable heavy-duty transportation full scenario solutions. It has become a benchmark model in the field of new energy commercial vehicles.
1.Pre-Start Inspection：Carefully check whether the tire pressure meets the standard, whether the hydraulic oil level is within the standard range, and confirm that the cargo bed is fully reset without deviation.
2.Driving Precautions：Strictly prohibit overloading. Be sure to slow down when turning or driving on ramps, and keep a safe distance from the vehicle in front.
3.Unloading Operation Process：Park on a flat and solid ground, pull the handbrake tightly → unlock the cargo bed locking device → slowly operate the hydraulic lever to lift the cargo bed → reset the cargo bed after unloading and check again whether the locking state is firm.
4.Daily Maintenance Points：Clean the air filter regularly, inspect the tightness of the hydraulic system pipelines, and replace the engine oil in a timely manner according to the specified mileage.
1. The person in charge of a mining transportation enterprise in the Middle East: “Our mining has a high demand for short distance transportation and strict environmental requirements. The CAMC M5 8 × 4 electric dump truck completely exceeded expectations. The 450hp power output is strong and stable, and the carrying and transportation efficiency is not inferior to traditional fuel vehicles. The 420KM range is sufficient to cover all day operations, and the zero emissions and low noise characteristics perfectly comply with local environmental regulations. At the same time, it greatly reduces fuel and maintenance costs. The compact design can also flexibly shuttle through narrow sections of the mine, and has become our main vehicle for mining transportation.”
2. Procurement Manager of an Infrastructure Company in a Southeast Asian City: “In urban infrastructure construction projects, this electric dump truck has performed exceptionally well. The luxurious cab and intelligent control functions alleviate the driver's high-frequency work fatigue, and the zero emission characteristics make it easy for us to pass through urban environmental restrictions. The compact structure allows us to pass through narrow areas of construction sites without pressure. The vehicle has sufficient range and stable power, which can efficiently complete the transportation of building materials and respond to the 'dual carbon' policy. In the future, we plan to expand the procurement scale to help promote the green and efficient progress of the project.”
CAMC International is a leading enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
1.Q: What is the battery range, and how long does charging take?
A: Full-load range is ~350–420km (varies by payload and terrain). Fast charging takes 1.5–2 hours; slow charging takes 6–8 hours.
2.Q: How long does it take to lift the cargo box?
A: The hydraulic lift system takes 15–20 seconds to fully lift the box, and 10–15 seconds to lower—ideal for high-frequency loading/unloading.
3.Q: Does cold weather affect battery range?
A: Range may decrease by 10–15% in temperatures below -10°C. For cold regions, preheat the battery or choose a model with battery preheating.
4.Q: What is the battery warranty period?
A:The warranty period for the core battery is 5 years; Chassis for 1 year or 100000km, whichever comes first.
