Product Introduction

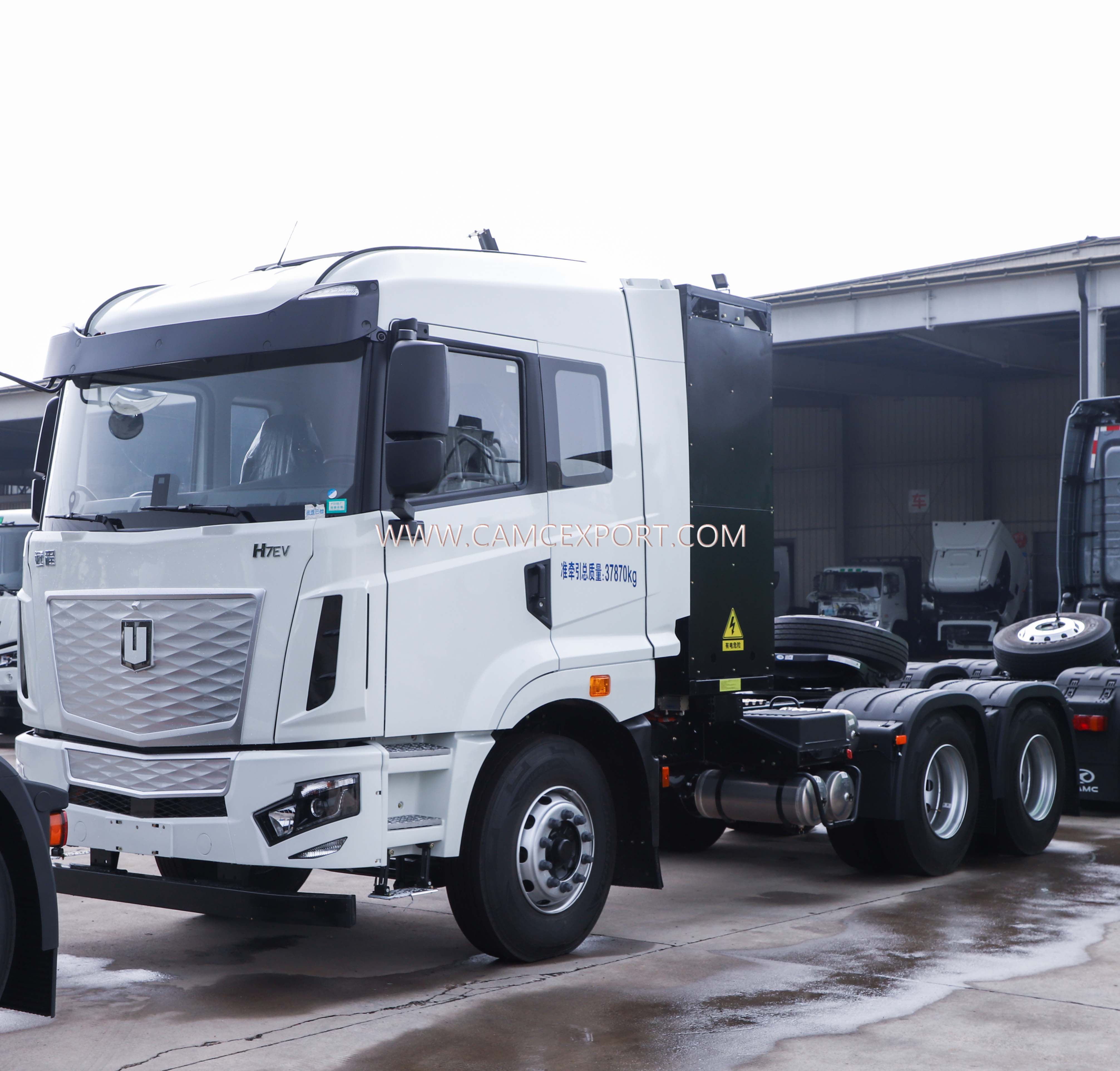

As a revolutionary work in the field of new energy heavy-duty trucks, the CAMC H7E electric tractor integrates cutting-edge power and reliable quality. This model is equipped with a 360kW high-power permanent magnet synchronous motor, matched with a Hanma 9-speed AMT intelligent gearbox, and combined with a CATL high-density lithium iron phosphate battery pack, which can unleash a peak torque of 2400N · m and easily cope with various heavy-duty transportation challenges. The entire vehicle has passed a reinforced durability test of 700000 kilometers, covering extreme working conditions such as extreme cold, high temperature, and high altitude. The failure rate of key components is below the industry standard of 60%.

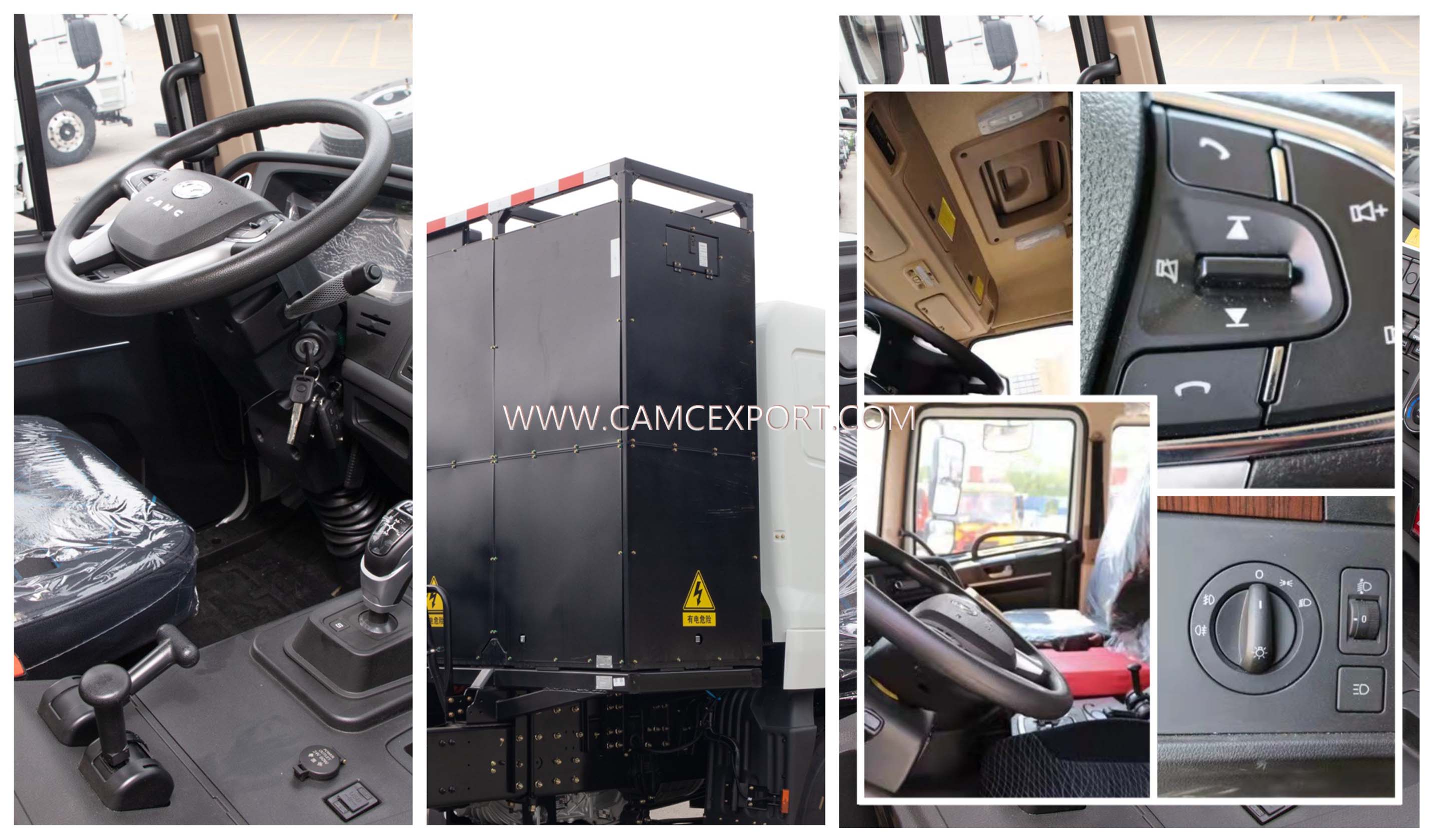

The cab adopts a low center of gravity design and comes standard with a 10.1-inch intelligent cockpit system, integrating 360 ° surround view monitoring; DMS driver status monitoring; AEBS+ESC+LDW Intelligent Security Suite
Specially designed for high-frequency transportation scenarios such as port container transfer and steel plant short haul, its modular battery design supports vehicle electric separation operation mode, reducing comprehensive usage costs by 45% compared to diesel vehicles, making it a benchmark solution for green and smart logistics.
Truck Parameters
| Drive Wheel | 6×4 |
| Seats | ≤5 |
| Horsepower | 351 - 450hp |
| Tire Certification | ECE, GCC, ISO, DOT, ECE, GCC, ISO |
| Tire Design | Radial |
| Condition | New |
| Battery brand | CATL |
| Battery power | 282kwh |
| Battery type | Lithium iron phosphate |
| Motor rated/peak torque(N.m) | 1500/2100 |
| Comprehensive driving range (km) | 150~170 |
| Charging time | 1.5h |
| Gearbox | 9 speed AMT with PTO |
| Kerb weight(kg) | Standard 11000, overload 12500 |
| Wheelbase(mm) | 3800+1350 |
| Transport Package | Standard Export |
| Specification | 7390x2550x3835mm |
| Trademark | CAMC |
| Origin | China |
| Production Capacity | 50000 |
Our Advantage
Super powerful performance
Equipped with a 360kW high-power motor and a Hanma 9-speed AMT gearbox, the peak torque reaches 2400N · m, and the heavy-duty climbing ability is increased by 40%, perfectly meeting the demanding working conditions of ports, mining areas, and other areas.
Ultimate safety and reliability
Through 700000 kilometers of full condition testing, the battery system has a cycle life of over 6000 times, and key components adopt military grade protection standards, reducing the failure rate by 55% compared to the industry.
Intelligent and efficient operation
Supports dual gun fast charging (only 18 minutes for 30% -80% battery), intelligent energy recovery system increases range by 15%, and vehicle electric separation design reduces initial purchase costs by 30%.
Full dimensional comfortable experience
Equipped with a 10.1-inch intelligent cockpit and air suspension seats, the cabin noise is controlled within 62 decibels, and the DMS driver monitoring system effectively reduces the risk of fatigue driving.
Vehicle Decoration
1.European style, strong dynamic
2.Luxurious interior, humanized design
3.Intelligent electrical system and Intelligent fuel saving management system
4.Costsaving, safe and reliable, separation of vehicle and electricity, flexible configuration, and high operational efficiency
Our Factory
CAMC International Trade Co., Ltd. is a core subsidiary of China National Machinery Industry Corporation (ChemChina) that focuses on overseas markets. Leveraging the strong industrial resources of its parent company, CAMC is committed to global promotion and technical services for heavy-duty and specialized vehicles. As a national key R&D and production base for heavy-duty vehicles and components, the company has industry-leading technological strength and manufacturing capabilities. Its products cover multiple fields such as tractor, dump truck, and specialized vehicle, and are widely used in logistics, engineering, and special transportation markets.
The company is headquartered in Huashan District, Ma'anshan City, Anhui Province. With a complete supply chain system and international strategic layout, its products are exported to Southeast Asia, the Middle East, Africa, Latin America and other regions. As a key supported enterprise by national policies, CAMC always adheres to the principle of technological innovation and quality priority, providing high reliability and cost-effective transportation solutions for global customers, and continuously enhancing the competitiveness of Chinese manufacturing in the international market.
FAQ
Q:How about the warranty?
A:24 months unlimited mileages or 200000 km which occur first.
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How about the lead time?
A:35 working days
Q:How many units of truck does your factory produce per year?
A:Almost 100000 units Nearly 8500 units per month.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service. Yes, we do, our MOQ is 1 unit.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container flatbed container, Ro-Ro ship or bulkship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
