Product Introduction
The CAMC H7 6 × 4 dump truck is a high-performance vehicle designed specifically for heavy engineering transportation, offering a power configuration of 420 horsepower and meeting Euro 2 to Euro 6 emission standards. The appearance offers multiple color schemes such as red, white, blue, and yellow, paired with a lightweight aluminum alloy fuel tank design, balancing practicality and aesthetics.

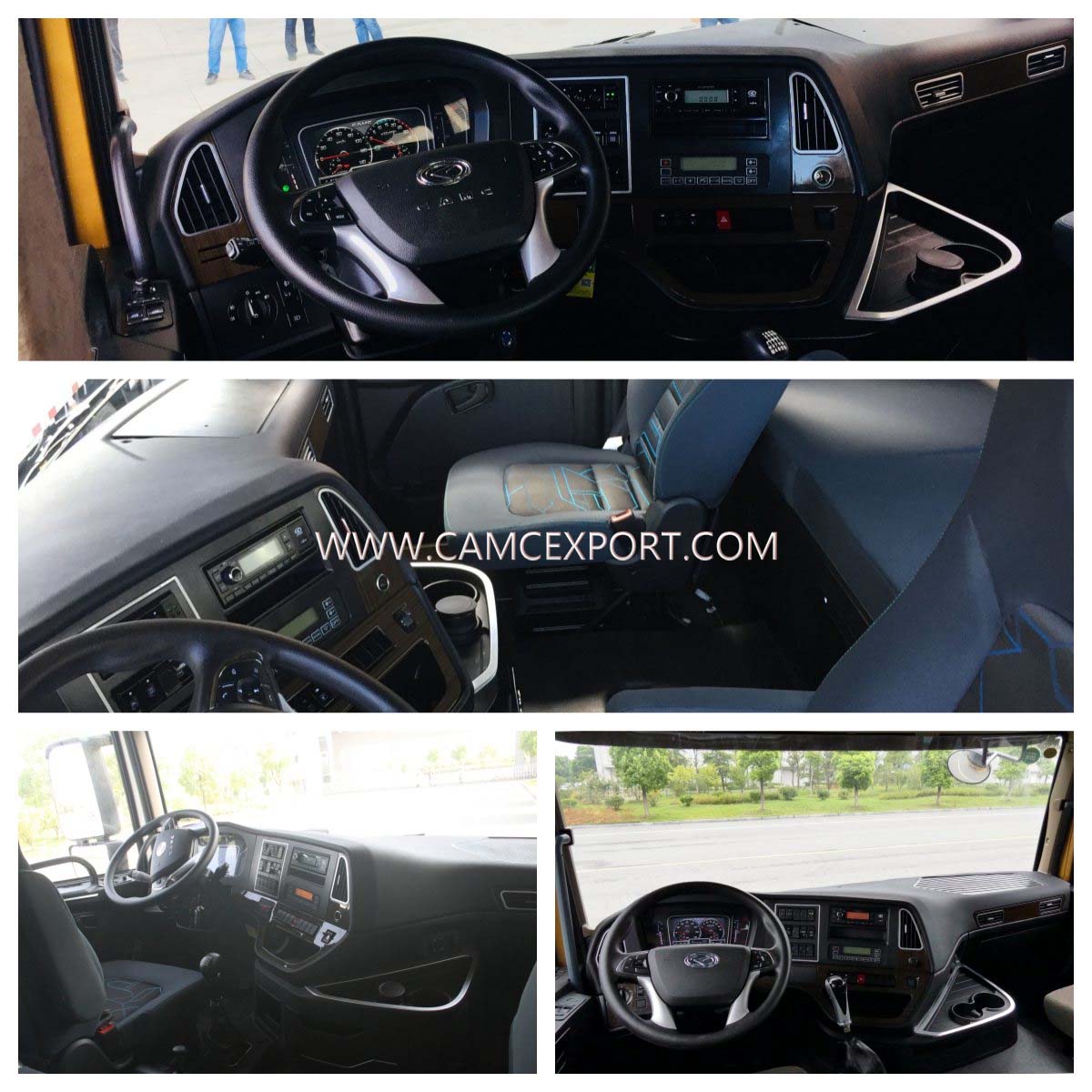

The whole vehicle adopts a high-strength steel frame and a multi piece steel plate spring suspension, with a rated load capacity of 35 tons, suitable for harsh working conditions such as mines and construction sites. The driver's cabin is equipped with a user-friendly control interface and wide field rearview mirrors, and air suspension seats can be optionally installed, greatly improving the comfort of long-term operations. At present, this model has been widely used in domestic and foreign infrastructure projects, becoming a reliable choice in the field of engineering transportation.
Product Highlights
CAMC TRUCK SPECIFICATION | |
NAME | Dump Truck |
BRAND/SERIES | CAMC / H9 |
CABIN | |
CAMC LHD H9 flat roof with A/C, radio, pneumatic shock absorber, pneumatic seat, blue teeth, mp3, and luxury interior. | |
ENGINE | |
Supplier | CAMC |
Model | CM6D18 375 50 |
Fuel type | Diesel |
Rated power/horsepower（kw/hp） | 276/375 |
Rated speed(rpm) | 1900 |
Displacement (L) | 9.84 |
Emission Standard | Euro 5 |
Cylinders | 6 |
Controller type | Mechanical |
TRANSMISSION | |
Supplier | FAST |
Model | 12JSD180T（PTO） |
Speed ratio | 12 |
CHASSIS | |
Drive type | 6×4 |
Overall dimension (mm) | 8800x2550x3700 |
Wheel base(mm) | 3900+1350 |
Kerb Weight (kg) | 12300 |
Rated GVW/ GVW (kg) | 25000 |
FRAME | |
Size (H*W*T) | Height:310mm，Width:90mm，Thickness:8mm+5mm (Double) |
Front axle | ISUZU technology steering axle with double T-cross section, Rated capacity:7.5T |
Rear axle | Mercedes-Benz technology 16T casting axle , with double reduction and differential locks between axles， Rated capacity:16T |
Ratio:4.769 optional:3.867, 4.267,4.769,5.263 | |
Spring | 9/9/12 |
Tyre | 12.00R20 Steel tire,10+1 pieces |
Core Product Highlights
Powerful power configuration: Equipped with a 420 horsepower engine and optimized transmission system, it can easily handle heavy loads, climbing and complex road conditions, meet various emission standards from Euro 2 to Euro 6, and adapt to environmental regulations in different markets around the world.
Durable engineering design: The 6 × 4 drive form ensures excellent passability in harsh construction environments, and the reinforced cargo box and hydraulic system are durable, especially suitable for high-frequency loading and unloading transportation of building materials such as sand, gravel, and earthwork.
Detail oriented humanization: The aluminum alloy fuel tank effectively reduces the weight of the entire vehicle, and the driver's cabin adopts a wide field of view design, with a standard dust-proof sealing system to ensure the comfort of the driver's operation in dusty environments.
Excellent Buyer Reviews
Evaluation of Middle Eastern Construction Contractors
"Our 20 red H7 dump trucks performed astonishingly at a high-temperature desert construction site in Dubai. The 420 horsepower engine operated continuously in a 50 ℃ environment without power attenuation, and the corrosion resistance of the aluminum alloy fuel tank far exceeded expectations. However, it is recommended to enhance the maximum cooling capacity of the cabin air conditioning."
Feedback from Southeast Asian mining companies
"In the Indonesian nickel mine project, the Euro 6 emission version of H7 has passed the environmental audit perfectly. Blue coating has excellent anti fading performance in rainy environments, but it is recommended to shorten the maintenance cycle of steel plate springs in muddy conditions."
Our Company
CAMC International is a leading enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
Successful Projects
FAQ
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
