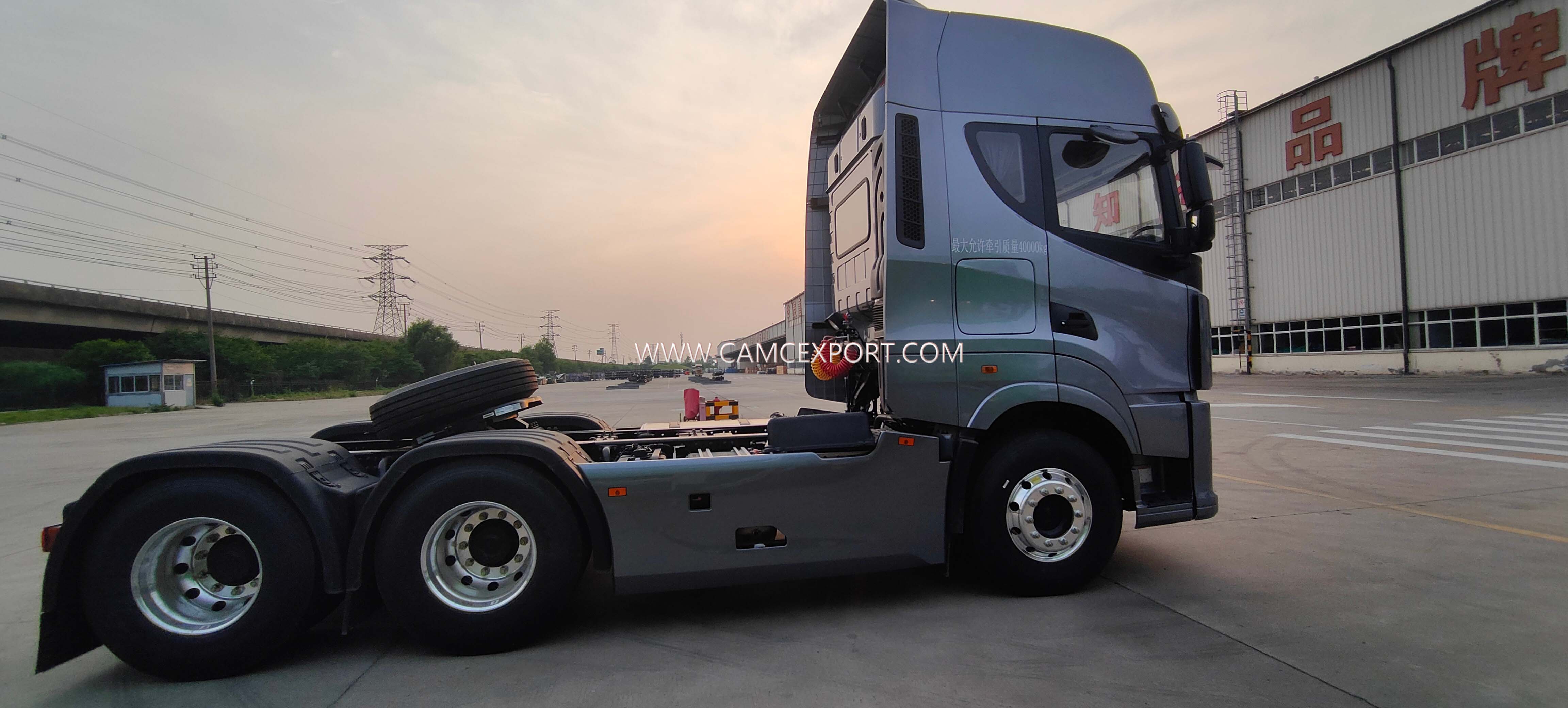

CAMC H7 6 × 4 diesel tractor is a high-performance tractor specially designed for medium and long distance heavy load transportation. It is equipped with high-efficiency diesel engine, with the maximum torque of 2000-2500Nm and the maximum horsepower of 351-450hp. It has strong power and excellent fuel economy. With 400-500L large-capacity fuel tank, the endurance mileage is significantly increased to meet the long-distance transportation requirements.
High-strength frame and optimized chassis design are adopted for the complete vehicle to ensure stability and durability under heavy load. Provide comprehensive service support, including on-site installation, commissioning and training, video technical support, overseas call center, online support, etc., and promise to provide free spare parts and on-site maintenance and repair to ensure the worry-free operation of global customers.
It is applicable to logistics transportation, engineering construction and other scenes, and becomes the preferred solution in the field of heavy load transportation with reliable performance and comprehensive service.
Condition | New |
Steering | Left |
Horsepower | 351 - 450hp |
Emission Standard | EURO 5 |
Brand Name | CAMC |
Segement | Heavy truck |
Market Segement | Mining transportation |
Engine Brand | CAMC |
Fuel Type | Diesel |
Engine Capacity | > 8L |
Cyinders | 6 |
Gear Box Brand | CAMC |
Transmission Type | Manual |
Forward Shift Number | 16 |
Reverse Shift Number | 2 |
Maximum Torque(Nm) | 2000-2500Nm |
Size | 7140*2550*3700mm |
Gross Vehicle Weight | 8805 kg |
Capacity (Load) | 21 - 30T |
Fuel Tank Capacity | 400-500L |
Drive Wheel | 6x4 |
Passengers | 2 |
Driver's Seat | Air suspension |
Seat Rows | Single row |
Rear Camera | 360° |
Cruise Control | Normal |
ABS(Antilock Braking System) | Yes |
ESC(Electronic Stability Control System) | Yes |
Touch Screen | None |
Multimedia System | Yes |
Window | Manual |
Air Conditioner | Manual |
Tire Number | 10 |
After-sales Service Provided | Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service |
WheelBase | 3400+1350mm |
Transmission Model | 12JSDX220T-B |
Rear axle | 16T |
Front axle | 7T |
Fuel tank | 800L |
Saddle | 90# |
Frame | 310(10mm) |
Driving type | 6*4 Left Hand Driving |
Color | Red White Blue Yellow |
Engine Power | 450HP |
Powerful power performance
Equipped with high-performance diesel engine, the maximum torque reaches 2500Nm, the horsepower covers the range of 351-450hp, and with optimized transmission system, the heavy load starting and climbing capacity is 20% higher than the counterparts.
Extra long endurance capacity
Equipped with 500L super large fuel tank, combined with intelligent fuel saving technology, single refueling endurance mileage exceeds 2000km, significantly reducing the refueling frequency of long-distance transportation.
Full scene service guarantee
Provide global joint guarantee service, including on-site installation and commissioning, 24h multilingual technical support, emergency spare parts supply (72h in place) and operation training, so as to ensure efficient operation of the whole life cycle of the vehicle.
High Reliability Design
The power assembly verified by the military-level reinforced frame and 400000km bench is adopted, and the failure rate of key components is lower than the industry standard by 35%, so as to adapt to the extreme climate and complex road conditions.
Operation Director of Middle East Logistics Company
“Our H7 fleet has been outstanding in the long haul from Dubai to Saudi Arabia. The 500L large fuel tank allows one-way transportation without intermediate refueling, and the 2500Nm torque still maintains stable output under desert high temperature. The most surprising thing is that the after-sales team provides Arabic support and the emergency parts are available 24 hours a day, which completely frees us from worries.”
Head of Mining Transport, Russia
“H7 has been in continuous operation for 3 winters without failure in extreme cold environment of Siberia - 30 ° C. The cold start performance of the engine is far beyond expectation, and the reinforced frame has zero deformation under bumpy road conditions in the mining area. Russian training service provided by Chinese engineers greatly improves our operation efficiency.”
Q:How about the warranty?
A:1 year or 100000km,whichever comes first.
Q: Do you have ISO certificate?
A: Yes, we have. Please contact us to get our certificates.
Q: How many units of truck does your factory produce per year?
A: Almost 100000 units. Nearly 8500 units per month.
Q: How do you control the quality of product?
A: Our Factory has standard production workshop and gets ISO CCC BV certificates. Our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A: Our main export countries have accepted after-sales service, some countries use the third party service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q: What's the payment terms?
A: By T/T or L/C at sight.
Q: How about shipment?
A: 20FT container, 40FT container, 40FT high container, open-top container, flat bed container, Ro-Ro ship or bulk
ship according to the size the products.
