Product Overview

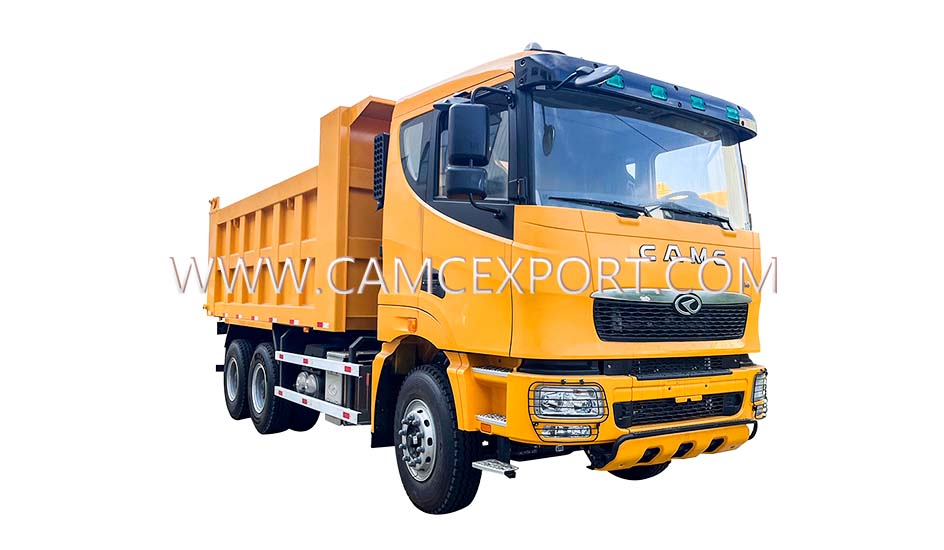

As the flagship engineering transport vehicle of the CAMC brand, the H7 6 × 4 dump truck, with its iconic orange coating and innovative engineering design, has become a benchmark product in the construction transport market in 2026. This model is optimized for short distance transportation of building materials such as sand, gravel, and mud. It adopts a reinforced trapezoidal frame and a multi-stage buffer suspension system, which achieves excellent passability under complex road conditions on construction sites while maintaining a super strong load-bearing capacity of 40 tons.
Essential Details
CAMC TRUCK SPECIFICATION | |
NAME | Dump Truck |
BRAND/SERIES | CAMC /H7 |
CABIN | |

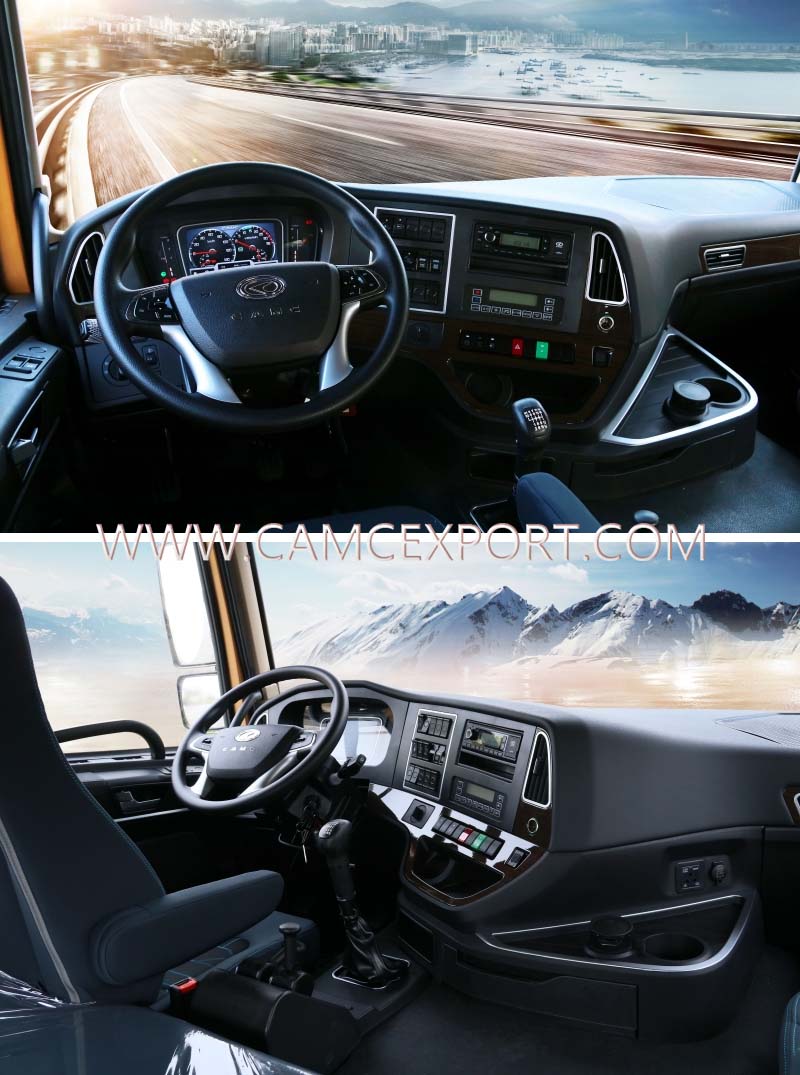

CAMC H7 flat roof with , A/C, radio, Pneumatic shock absorber, pneumatic seat, blue teeth, mp3, and luxury interior. | |
ENGINE | |
Supplier | CAMC |
Model | CM6D28 420 31 |
Fuel type | Diesel |
Rated power/horsepower（kw/hp） | 309/420 |
Rated speed(rpm) | 1900 |
Displacement (L) | 11.81 |
Emission Standard | Euro 2 |
Cylinders | 6 |
Controller type | Mechanical |
TRANSMISSION | |
Supplier | CAMC |
Model | 9SDB2051A（Servo+PTO） |
Speed ratio | 9 |
CHASSIS | |
Drive type | 6×4 |
Overall dimension (mm) | 8800×2550×3700 |
Wheel base(mm) | 3900+1350 |
Kerb Weight (kg) | 12500 |
Rated GVW/ GVW (kg) | 25000/30000 |
FRAME | |
Size (H*W*T) | Height:310mm，Width:90mm，Thickness:8mm+8mm (Double) |
Front axle | ISUZU technology steering axle with double T-cross section, Rated capacity:7.5T |
Rear axle | Mercedes-Benz technology 16T casting axle , with double reduction and differential locks between axles， Rated capacity:16T |
Ratio:5.263 optional:3.867, 4.267, 4.769, 5.921 | |
Our Advantage
Intelligent power combination: equipped with the latest generation high-pressure common rail engine, coupled with an intelligent shifting gearbox, the low-speed torque is increased by 18%, perfectly adapting to heavy-duty climbing conditions;
Efficient loading and unloading system: 8mm wear-resistant steel plate cargo box combined with dual cylinder front top lifting mechanism, achieving a 50 second fast unloading cycle and increasing operational efficiency by 35%;
Full time reliability: Key components adopt military grade sealing technology, pass 1500 hours of continuous dust environment testing, and the fault interval mileage reaches 80000 kilometers;
Ergonomic optimization: The newly developed dust-proof cockpit is equipped with air suspension seats and intelligent temperature control system, with noise control below 72 decibels.
Operation Guide
1.Pre-Start Inspection：Carefully check whether the tire pressure meets the standard, whether the hydraulic oil level is within the standard range, and confirm that the cargo bed is fully reset without deviation.
2.Driving Precautions：Strictly prohibit overloading. Be sure to slow down when turning or driving on ramps, and keep a safe distance from the vehicle in front.
3.Unloading Operation Process：Park on a flat and solid ground, pull the handbrake tightly → unlock the cargo bed locking device → slowly operate the hydraulic lever to lift the cargo bed → reset the cargo bed after unloading and check again whether the locking state is firm.
4.Daily Maintenance Points：Clean the air filter regularly, inspect the tightness of the hydraulic system pipelines, and replace the engine oil in a timely manner according to the specified mileage.
Customer Reviews
1. Head of Infrastructure Project in Hanoi, Vietnam
“Our CAMC H7 dump truck performed astonishingly in the dredging project of the Red River Delta. The dual cylinder front top lifting system enables sludge unloading speed to be 40% faster than traditional models, ensuring stable operation even in humid environments. The dust-proof design of the cab makes it more comfortable for operators to work in dusty environments, greatly improving the efficiency of construction site operations.”
2. Director of Operations, Dubai Construction Company, United Arab Emirates
“This orange beast has become the star equipment of our desert construction sites. The high-pressure common rail engine maintains strong power even at high temperatures of 50 ℃, and the 8mm wear-resistant cargo box has withstood long-term wear and tear from sand and gravel. What surprised us the most was its maintenance cost -35% lower than the European brands we previously used, truly achieving a perfect balance between high performance and economy.”
Company Profile
CAMC International is a leading enterprise in China's heavy-duty vehicle industry. As a national key R&D and production base for heavy-duty vehicles, specialized vehicles, and core components, the company has maintained a leading position in the industry since its establishment in the 1970s. As the only truck manufacturer in China with the ability to independently produce the entire industry chain including engines, transmissions, axles, chassis, and cab, CAMC has achieved complete autonomy and controllability from key components to the entire vehicle.
Relying on the research and development capabilities of national level technology centers, the company's products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in infrastructure, mining, logistics, and other fields. With the advantage of a complete industrial chain and continuous technological innovation, CAMC not only occupies an important position in the domestic market, but also exports its products to more than 80 countries and regions around the world. As a high-end equipment manufacturing enterprise supported by national policies, the company is continuously promoting the upgrading and development of China's commercial vehicle industry towards intelligence and green direction.
FAQ
Q:How about the warranty?
A:1 year or 100000km, whichever comes first
Q: Do you have ISO certificate?
A: Yes, we have. Please contact us to get our certificates.
Q: How many units of truck does your factory produce per year?
A: Almost 100000 units. Nearly 8500 units per month.
Q: How do you control the quality of product?
A: Our Factory has standard production workshop and gets ISO CCC BV certificates. Our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A: Our main export countries have accepted after-sales service, some countries use the third party service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q: What's the payment terms?
A: By T/T or L/C at sight.
Q: How about shipment?
A: 20FT container, 40FT container, 40FT high container, open-top container, flat bed container, Ro-Ro ship or bulk ship according to the size the products.
