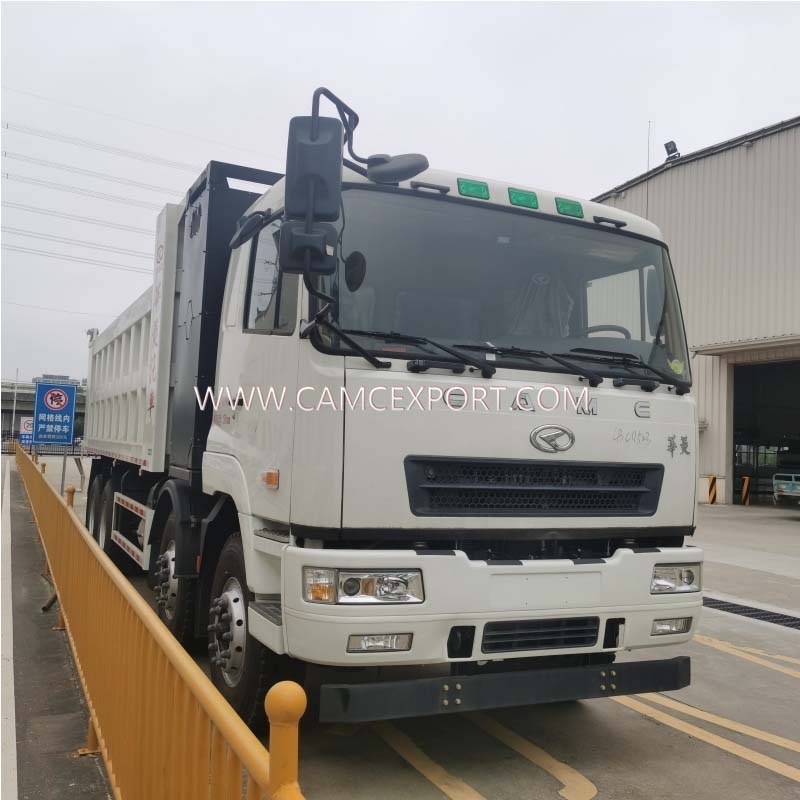

The CAMC 8 × 4 electric dump truck is a new energy benchmark product specially designed for heavy engineering transportation. It is equipped with a 220kW permanent magnet synchronous motor (peak 360kW/450 horsepower) and a 9-speed AMT gearbox, providing a strong torque of 2000N · m, making it easy to cope with heavy load scenarios such as mining and urban construction. Equipped with a 282kWh high-density lithium iron phosphate battery, it supports 6-minute fast battery swapping or 1-hour dual gun fast charging, with a single charge endurance of up to 250 kilometers (C-WTVC working condition), completely solving range anxiety.
The whole vehicle adopts a reinforced steel aluminum hybrid frame with a rated load of 40 tons. The intelligent energy recovery system (efficiency ≥ 35%) significantly reduces energy consumption. The cab is equipped with panoramic monitoring and intelligent diagnostic terminals, and NVH mute technology ensures operating noise ≤ 62dB. It has passed the EU ECE R100 certification and comes standard with AEBS automatic emergency braking. It has been widely used in green infrastructure projects in Southeast Asia, the Middle East, and other markets, becoming the first choice equipment for zero emission heavy-duty transportation.
| Horsepower | 351 - 450hp |
| Forward Shift Number | 9 |
| Maximum Torque(Nm) | 1500-2000Nm |
| Cargo Tank Dimension | 5600*2350*1500MM |
| Capacity (Load) | 21 - 30T |
| Rear Camera | 360° |
| ESC | Yes |
| Air Conditioner | Automatic |
| Front axle | 7T |
| Rear suspension | 12 |
| Wheelbase | 1850+3200+1350 |
| Emission Standard | ZERO |
| Dimensions (L x W x H) (mm) | 9520*2550*3360MM |
| Cargo Tank length | 5.3-6.2M |
| Gross Vehicle Weight | ≥30T |
| ABS | Yes |
| Touch Screen | Yes |
Multimedia System | Yes |
Super strong electric power performance
Equipped with a 450 horsepower permanent magnet synchronous motor (peak 360kW/2000N · m), coupled with a 9-speed AMT gearbox, the power output is stable and strong under heavy load conditions, and the climbing ability is improved by 35%.
Rapid Energy Supplement Plan
The 282kWh lithium iron phosphate battery supports 6-minute rapid battery swapping or 1-hour dual gun fast charging, with a single range of 250 kilometers (C-WTVC working condition), meeting the high-intensity operation requirements all day long.
Intelligent and efficient energy management
The multi-mode braking energy recovery system (efficiency ≥ 35%) combined with lightweight chassis design reduces comprehensive energy consumption by 45% compared to traditional diesel models, significantly optimizing operating costs.
Military grade safety and reliability
Passed the EU ECE R100 certification, equipped with AEBS automatic emergency braking and panoramic monitoring system, verified in all weather conditions from -30 ℃ to 50 ℃, with a 60% reduction in failure rate compared to industry standards.
Evaluation by the Operations Director of Nordic Mining Company
“In the Norwegian Arctic Circle iron ore project, our electric dump truck maintained 85% battery efficiency at -25 ℃ and a torque of 2000N · m perfectly suited for frozen soil transportation. The 6-minute battery swapping technology improves work efficiency by 30%, but it is recommended to add a voice prompt function for battery preheating in extremely cold environments.”
Feedback from Southeast Asian infrastructure contractors
“The 15 vehicles of the Jurong Island project in Singapore operate for an average of 20 hours per day, and the 1-hour fast charging perfectly matches the shift rhythm. The intelligent energy recovery system saves about SGD 35000 in electricity bills annually, but it is recommended to enhance the IP68 waterproof design of the motor compartment for the tropical rainy season.”
CAMC International is a benchmark enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
Q: What is the driving range of this truck?
A:Our trucks have been tested for millions of kilometers before leaving the factory. Please refer to the specification table forthe specific mileage.
Q: Are the truck's batteries safe?
A:We use batteries from CATL. CATL is a world-renowned company. All batteries have undergone quality tests such as water spray,fire, acupuncture, collision, and extrusion before leaving the factory. Support charging and discharging more than 4000 times.
Q:Do we need to build a swapping station after buying the truck?
A:Usually, we recommend that more than 15 trucks can build a swapping station, which will greatly improve the charging efficiency.
Q:What are the payment terms?
A:Usually 30% prepaid and the remaining 70% paid before shipping.
Q: What is the delivery time?
A:Approximately 40 days after receipt of advance payment.
Q: How to ship to our country?
A:Usually by ro-ro, bulk ship, 40ft flat rack container, etc.
Q: How long is the warranty period for this truck?
A:The warranty period for the core battery is 5 years; Chassis for 1 year or 100000km, whichever comes first.
