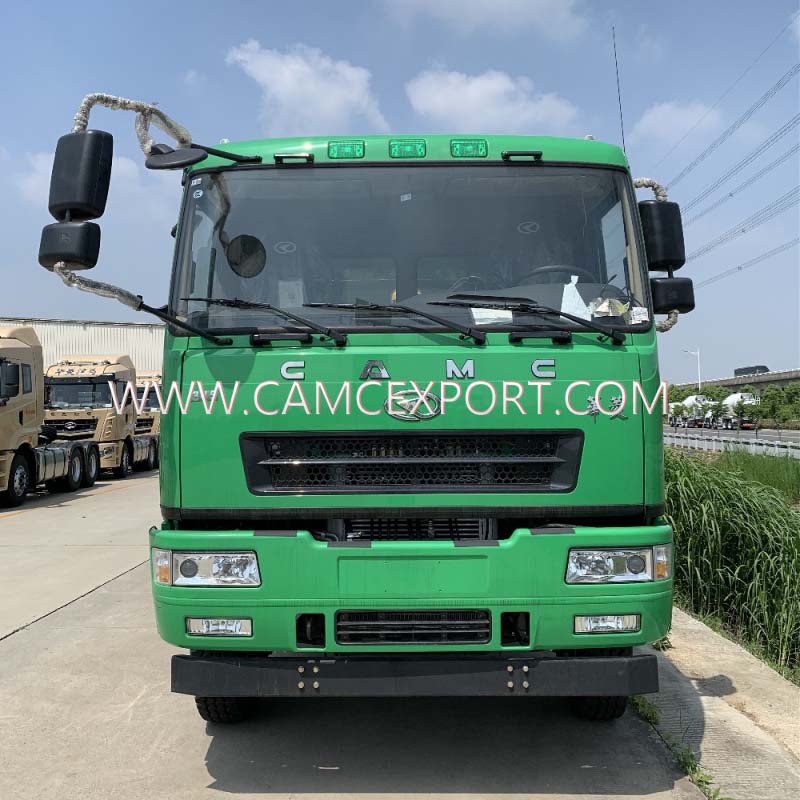

The CAMC 8 * 4 diesel dump truck is an efficient and reliable vehicle designed specifically for heavy-duty engineering transportation scenarios. With strong power and solid quality, it is suitable for the diverse heavy load needs of mines, construction sites, municipal cleaning and transportation, and is a capable player in the field of engineering transportation. The vehicle is equipped with a high-performance diesel engine, with a rated power of up to 309kW and a maximum horsepower of 409HP. The engine speed is stable at 1900rpm, and the rated torque covers 2000-2500Nm. The power output is strong and smooth, making it easy to cope with harsh working conditions such as heavy load climbing and complex road conditions, while balancing operational efficiency and fuel economy. Adopting an 8 * 4 drive system, coupled with a reinforced frame and high load axle, the vehicle has outstanding load-bearing capacity. At the same time, the vehicle adopts a compact structural design, with a reasonable body layout and flexible steering. It can adapt to complex traffic scenarios such as narrow construction sites and rural roads, and improve transportation turnover efficiency. The vehicle is equipped with a high-quality self unloading box, which allows for fast and smooth unloading. Paired with a CAMC self-developed gearbox, the shifting is smooth and the transmission is efficient. The modular design makes it easier to maintain and upgrade in the later stage, significantly reducing operating costs. In addition, the vehicle is equipped with comfortable features such as air suspension driver's seat, automatic air conditioning, etc., which balance the convenience of handling and driving comfort. At the same time, it integrates multiple safety protection mechanisms and has been verified by the market to have stable and reliable performance. Relying on CAMC's comprehensive after-sales service system, it provides users with a one-stop heavy-duty transportation solution from vehicle to service, helping users improve operational revenue.
CAMC TRUCK SPECIFICATION | |
NAME | Dump Truck |
BRAND/SERIES | CAMC / Classic(Euro type) |
CABIN | |
CAMC LHD classic flat roof with A/C, radio, Mechanical shock absorber, Mechanical shock seat, blue teeth, mp3, and luxury interior. | |
ENGINE | |
Supplier | CAMC |
Model | CM6D28 420 31 |
Fuel type | Diesel |
Rated power/horsepower（kw/hp） | 309/420 |
Rated speed(rpm) | 1900 |
Displacement (L) | 11.81 |
Emission Standard | Euro 2 |
Cylinders | 6 |
Controller type | Mechanical |
TRANSMISSION | |
Supplier | FAST |
Model | 9JSD200T（Power Take Off） |
Speed ratio | 9 |
CHASSIS | |
Drive type | 8×4 |
Overall dimension (mm) | 10080x2550x3700 |
Wheel base(mm) | 1850+3370+1350 |
Kerb Weight (kg) | 14870 |
Rated GVW/ GVW (kg) | 31000/40000 |
FRAME | |
Size (H*W*T) | Height:310mm，Width:90mm，Thickness:8mm+8mm (Double) |
Front axle | ISUZU technology steering axle with double T-cross section, Rated capacity:7.5T |
Rear axle | Mercedes-Benz technology 16T casting axle , with double reduction and differential locks between axles， Rated capacity:16T |
Ratio:5.263 optional:3.867, 4.267,4.769,5.263 | |
Spring | 9/9/12 |
Tyre | 12R22.5 Vacuum tire,12+1 pieces |
1. Powerful power and efficient empowerment: Equipped with a high-performance diesel engine with a rated power of 309kW and a maximum horsepower of 409HP, the engine speed is stable at 1900rpm, and the rated torque covers 2000-2500Nm. The power output is strong and smooth, making it easy to cope with harsh working conditions such as heavy load climbing and complex road conditions. It balances operational efficiency and fuel economy, greatly improving transportation turnover speed.
2. High load capacity and strong adaptability, flexible and practical: adopting an 8 * 4 drive form, paired with a reinforced frame and high load axle, with outstanding load-bearing capacity; The compact structure design of the entire vehicle, with a reasonable body layout and flexible steering, can adapt to complex traffic scenarios such as narrow construction sites and rural roads, as well as meet the diverse heavy load requirements of mines, construction sites, municipal transportation, etc.
3. Convenient and efficient, worry free operation and maintenance: equipped with high-quality self unloading box, fast and smooth unloading, matched with CAMC self-developed gearbox, smooth shifting and efficient transmission; Modular design makes post maintenance and upgrades more convenient, effectively reducing downtime for maintenance and significantly lowering user operating costs.
4. Comfortable, safe, and reliable quality: equipped with comfortable features such as air suspension driver's seat and automatic air conditioning, balancing ease of handling and driving comfort; Integrating multiple security protection mechanisms, with long-term market validation of stable performance, and relying on CAMC's comprehensive after-sales service system, we provide users with a one-stop heavy-duty transportation solution to ensure worry free operation.
Our Company
CAMC International Trade Co., Ltd. is a core subsidiary of China National Machinery Industry Corporation (ChemChina) that focuses on overseas markets. Leveraging the strong industrial resources of its parent company, CAMC is committed to global promotion and technical services for heavy-duty and specialized vehicles. As a national key R&D and production base for heavy-duty vehicles and components, the company has industry-leading technological strength and manufacturing capabilities. Its products cover multiple fields such as tractor, dump truck, and specialized vehicle, and are widely used in logistics, engineering, and special transportation markets.
The company is headquartered in Huashan District, Ma'anshan City, Anhui Province. With a complete supply chain system and international strategic layout, its products are exported to Southeast Asia, the Middle East, Africa, Latin America and other regions. As a key supported enterprise by national policies, CAMC always adheres to the principle of technological innovation and quality priority, providing high reliability and cost-effective transportation solutions for global customers, and continuously enhancing the competitiveness of Chinese manufacturing in the international market.
Q:How about the warranty?
A: 1 year or 100000km, whichever comes first.
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How many units of truck does your factory produce per year?
A:Almost 100000 units Nearly 8500 units per month.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service. Yes, we do, our MOQ is 1 unit.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container flatbed container, Ro-Ro ship or bulkship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
