15.7*59*9 in
CAMC

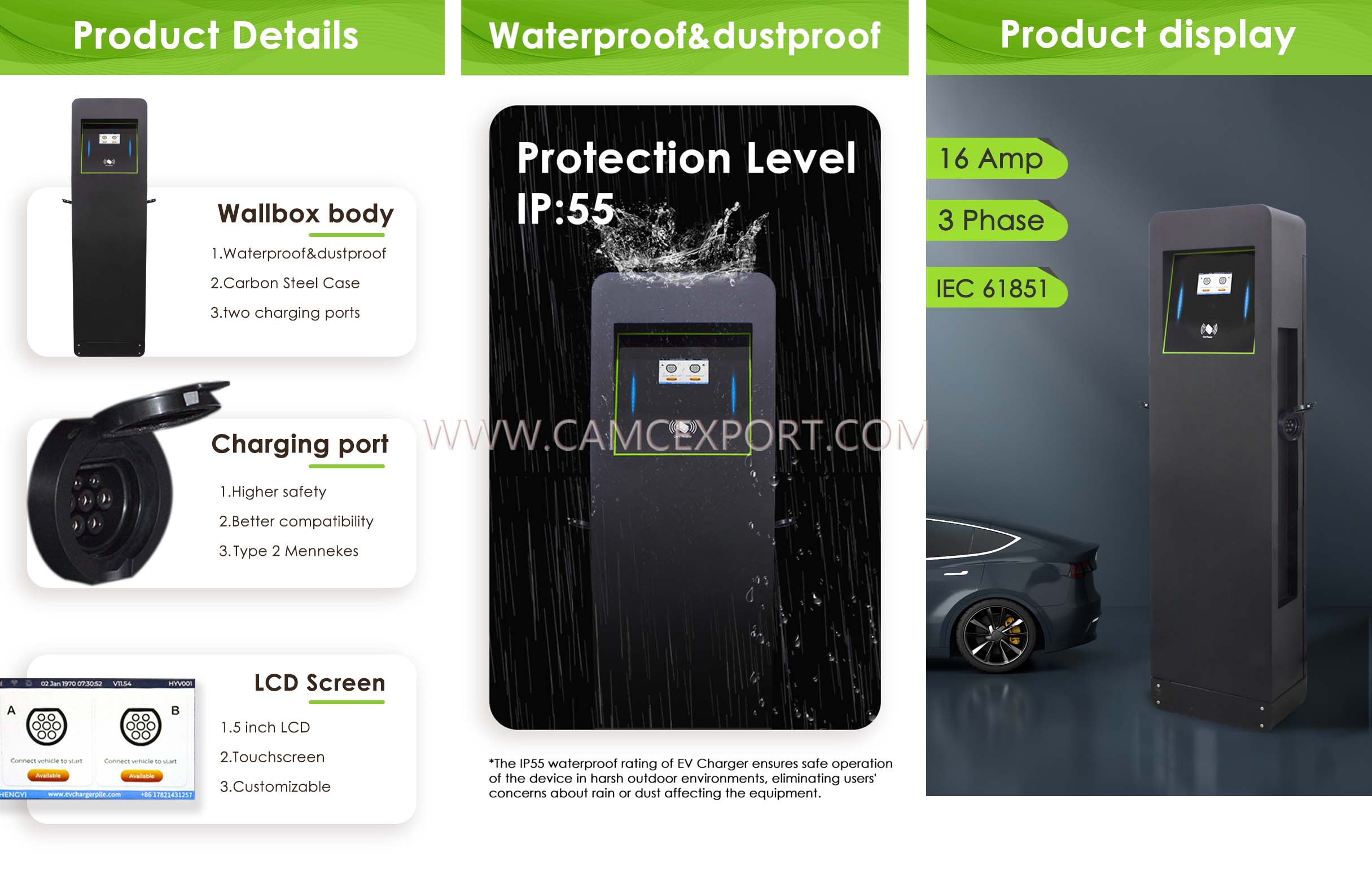

CAMC socket type floor standing AC charging pile, specially developed for commercial stations, park fleets, and public parking lots, providing three power specifications of 14kW single-phase and 22kW/44kW three-phase. The equipment is equipped with a dual socket independent output structure as standard, without the need for wall mounted infrastructure. It can be installed and used on the ground, with a minimum order quantity of only 1 unit. It can flexibly adapt to project pilots, scattered locations, and large-scale station bulk deployments, making it a cost-effective solution for global communication and energy replenishment.
The whole machine is equipped with a 5-inch high-definition LCD display screen, which displays charging voltage, current, energy consumption, and equipment fault codes in real time. It supports multilingual switching and adapts to the operating habits of users from multiple countries. Dual sockets can charge two new energy vehicles simultaneously, with built-in intelligent load balancing algorithm to avoid power grid overload problems, effectively improving parking space utilization and station turnover efficiency, compatible with mainstream new energy passenger vehicles and light commercial vehicles worldwide.
The product has a protection level of ≥ IP55, with the ability to prevent dust, water, and salt spray erosion, and can be deployed outdoors for a long time. The ultra wide working temperature range covers -40 ℃~+65 ℃, specially tuned for extreme working conditions such as extreme cold, high temperature, hot and humid, and sandstorms. There is no power attenuation throughout the entire process, and it is suitable for complex climate environments in different regions around the world. It operates continuously and stably 24/7.
Built in comprehensive electrical protection including overload, leakage, lightning protection, and high-temperature power outage, certified by international authoritative safety certification. Adopting a modular integrated architecture, with low failure rate, convenient maintenance, and compatibility with mainstream global charging protocols. Relying on the global service network of CAMC, we provide remote monitoring, multilingual technical support, and global spare parts distribution to provide standardized charging solutions that are safe, efficient, and easy to operate for global users.
| Power rating (Double socket) | 14KW(1 Phase)/ 22KW(3 Phase) /44KW(3 Phase) |
| Charging interface type | IEC 61851 |
| Output current | 16A/32A |
| Frequency | 45-65Hz |
| Overvoltage protection | Yes |
| undervoltage protection | Yes |
| overload protection | Yes |
| short circuit protection | Yes |
| ground protection | Yes |
| over temperature protection | Yes |
| lightning protection | Yes |
| WIFI/4G/OCPP1 .6/LAN | Optional |
| RFID(2 user cards) | Optional |
| RCD | Type A/ type A+6mA DC |
| 5 inch display | Yes |
| LED Indicator light | Yes |
| Home load balancing(DLB) | Optional |
| IP grade | ≥IP55 |
| Working temperature | -40~+65℃ |
| Working ltitude | ≤2000m |
| Working Humidity | 5%-95% no condensation |
| Cooling mode | Natural cooling |
| MTBF | ≥100000H |
| Special protection | UV resistance |
| Standby power | 3W/5W(With LCD) |
| Dimension | 1500(H) x 400(W) x 230([D)mm |
| Cable length | 5M(16. 4FT) standard,or other size customizable |
| Weight | 40.7kg (Including charging gun) |
| Ground-mounting | Yes |
| Certificate | CE,OZEV LIST,UKCA,SASO.TUV,CB |
1. Full coverage of multiple power specifications, flexible selection
Provide 14kW single-phase and 22/44kW three-phase power, suitable for different grid capacities, vehicle types, and station computing power requirements, and adaptable to single-phase/three-phase power supply systems in various countries around the world.
2. Dual socket synchronous output, upgrading station revenue
Equipped with dual interface independent charging configuration and intelligent load balancing, a single station can serve two vehicles, greatly improving the utilization rate of parking lots and helping operators expand and increase revenue at low cost.
3. IP55 industrial grade protection, outdoor weather resistance and manufacturing resistance
≥ IP55 high level dustproof and waterproof grade, resistant to rain spray, sand dust, coastal salt fog corrosion, strong anti-aging ability of the body, long-term outdoor deployment without frequent maintenance.
4. Ultra wide temperature range operation, adapted to global climate
-Stable operation under all operating conditions from 40 ℃ to+65 ℃, able to start normally in extremely cold environments, with no power restrictions in high temperature scenarios, suitable for extreme climate regions such as Northern Europe, the Middle East, and Southeast Asia worldwide.
5. Low MOQ for easy deployment and lower operation and maintenance costs
Minimum order quantity of 1 unit, floor standing installation without wall, short construction period; The modular structure enables precise fault location and, in conjunction with the global spare parts system, significantly reduces downtime and maintenance costs.
1. European park operation and maintenance service provider
“Our park has many outdoor parking spaces, and this CAMC ground mounted pile has reliable IP55 protection and a 5-inch screen for convenient station management. Three types of power are suitable for different vehicle models, and the dual gun design improves parking space utilization. A minimum order of one unit allows us to gradually expand the capacity in different zones, ensuring stable equipment operation and minimal maintenance pressure in the later stages. ”
2. Southeast Asian commercial parking lot operators
“The local temperature is high and rainy, with heavy salt spray in the air. This charging pile has strong adaptability to the temperature range and excellent waterproof and anti-corrosion performance. With a high power of 44kW, it meets the rapid energy replenishment needs of the fleet, and remote management in the background is convenient. The CAMC localized spare parts supply is timely, making it the preferred model for bulk deployment in commercial stations. ”
Q1: What power options does this floor-mounted AC charger have?
A: It provides three power specifications: 14kW single-phase, 22kW three-phase and 44kW three-phase. Equipped with dual sockets for independent output, it matches different grid standards and charging demands for EV passenger cars and light commercial vehicles.
Q2: What is the protection level and temperature range?
A: The protection grade is ≥IP55, featuring dustproof, waterproof and salt spray resistance for outdoor deployment. It operates stably in an ultra-wide temperature range from -40℃ to +65℃, adapting to extreme cold, high heat, humid and dusty environments worldwide.
Q3: What are the functions of the 5-inch display?
A: The 5-inch HD display real-time shows charging data, device status and fault codes, supporting multi-language switching. It enables intuitive on-site operation and convenient background data management for charging stations.
Q4: What is the MOQ and installation type?
A: The minimum order quantity is 1 unit. Adopting floor-mounted structure, no wall mounting or complex civil engineering is required. It can be put into use immediately after installation, suitable for pilot projects and large-scale batch deployment.
Q5: What safety features does the charger include?
A: It is built with comprehensive protection functions including overvoltage, overload, electric leakage, lightning surge and overheat automatic power-off. With international safety certifications and modular design, it ensures long-term stable operation and easy maintenance for global charging sites.
