X7E
CAMC
Product Overview

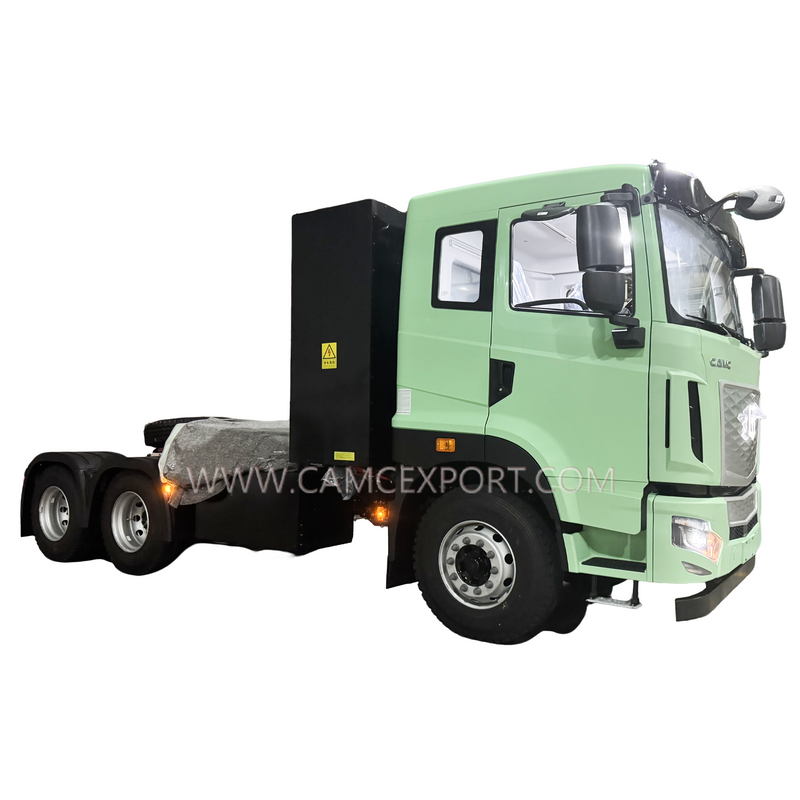

The CAMC X7E is a 6 × 4 left-hand drive electric tractor designed specifically for medium to long-distance efficient logistics, combining high load-bearing capacity, intelligent safety, and green power technology. Its 302 (8+5mm) high-strength beam frame and 180 balance axis structure ensure excellent load-bearing capacity, while the 4.875 axis ratio and 50mm high ground clearance optimize handling stability under complex road conditions. The power system adopts a combination of Green Source 315/460kW (EM310H46-a) drive motor and J4S280 gearbox, paired with Ningde Times 422kWh (12 sets of L228 C01) high-energy battery system, providing strong and long-lasting power output.
The car supports charging version exchange mode, equipped with European standard charging interface, compatible with mainstream charging facilities, and improves operational efficiency. In terms of safety, it integrates LDW (Lane Departure Warning), FCW (Forward Collision Warning), ABS (Anti lock Braking), and ESC (Electronic Stability Control), significantly reducing driving risks. The 12R22.5 (18 layer) three line hybrid tire enhances grip and wear resistance, while the 10 inch smart entertainment terminal improves driving comfort. Suitable for heavy-duty scenarios such as port transportation and mainline logistics, it is an ideal choice that balances environmental protection and efficient transportation.
Technical Parameters
| Item | Parameter |
| Model | X7E 6*4 Electric/EV Tractor Truck |
| Frame | 302 (8 + 5mm) large casting |
| Battery | 150Ah battery |
| Wheelbase（mm） | 3800 + 1350 |
| Drive motor | Green control 315/460kW (EM310H46-A) |
| Charging standard | European standard charging port |
| Saddle | 50 saddle (punch type) |
| Tire | 12 vacuum tires (18 levels)-three-line mixed |
| Transmission | J4S280 |
Product Advantages
Super Power System
Equipped with a combination of Green Source 315/460kW high-power motor and J4S280 gearbox, coupled with Ningde Times' 422kWh high-capacity battery pack, it achieves sustained strong power output and meets the needs of heavy-duty transportation.
Excellent load-bearing performance
Adopting a 302 (8+5mm) reinforced beam frame+180 balance axis design, combined with 12R22.5 (18 layers) three line hybrid tires, to ensure structural stability and road adaptability under high loads.
Intelligent security protection
Integrated LDW lane departure warning+FCW front collision warning+ABS+ESC quadruple active safety system, significantly reducing driving risks during long-distance transportation.
Efficient Energy Management
Supports European standard fast charging and battery swapping modes, with strong charging compatibility and intelligent energy consumption optimization system, significantly improving operational efficiency and battery life economy.
Operation Guide
1. Startup and power system management
Pre start check: Ensure that the battery level is ≥ 20% (Ningde Times 422kWh system), check the 12R22.5 tire pressure (standard 7.5bar) and the beam structure for any abnormalities.
Power switching: The motor (EM310H46-a) needs to be started after the self check is completed. Slowly press the switch to avoid instantaneous high load. It is recommended to shift the J4S280 gearbox within 2000rpm.
2. Charging and battery maintenance
Charging mode: Priority should be given to using the European standard CCS2 fast charging (0-80% for about 1.5 hours), and the battery pack (L228 C01) should be locked in place for the battery swapping mode.
Low temperature protection: Battery preheating function should be enabled below -20 ℃ (set through a 10 inch terminal) to avoid affecting the performance of the 150Ah battery.
3. Driving and handling skills
Load adaptability: Pay attention to the slope angle (recommended ≤ 15 °) when the ground clearance is 50mm high. The turning radius of the 4.875 axle is larger than that of the vehicle model, and space needs to be reserved.
Energy recovery: It is recommended to activate the strong recovery mode in gear B on long downhill sections, which can improve the range by 8-12% (with ESC anti-skid adjustment).
4. Use of security system
Intelligent warning: When the LDW/FCW system is activated at ≥ 60km/h, the dashboard will display a warning icon; Keep the brake pedal pressed continuously when ABS intervenes.
Emergency handling: If ESC is triggered, immediately release the switch and hold the steering wheel firmly to avoid sudden turning.
>Tip: Please refer to the accompanying "CAMC X7E Operation Manual" for specific parameters. It is recommended to receive training from the manufacturer for the first operation.
Customer Reviews
“Very happy to receive my car. This is a satisfying car buying experience. Jason's service is very good and he responded to my questions in a timely manner. I'm grateful for everything he did.”
--From American carrier
“My machine arrived on time, in perfect condition, and without any issues. The machine is well-made and has operated flawlessly without any problems. My cooperation with Jining China Machinery Co., Ltd. has been very pleasant; they are always quick to respond to any questions I have, and communication is always smooth. I would recommend this supplier/manufacturer to anyone considering purchasing this product, as their product and after-sales support are excellent, and I especially recommend contacting their sales staff.”
--Transporter from Ethiopia
Company Profile
About us
CAMC International Trading Co., Ltd.is a branch company of CAMC, mainly in charge of overseas marketing. CAMC is the national priority production and research development base of heavy trucks, special purpose heavy vehicles and spare parts, which is also the state mainly supports enterprise.Located in Maanshan Economic and Technology Development Zone, Anhui, China, CAMC was found in 1970s and we are the only truck enterprise in China which is capable of producing everything on our own including engine, gearbox, axles, chassis, cabin and so on.Our company is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
For years, CAMC has been doing good and professional work in commercial vehicles. Our product covers a huge scope in this field, like tractor truck, dump truck, concrete mixers, pump truck, cargo truck, garbage truck, crane truck, bulk cement truck, tank-carrying truck, semitrailers and other special vehicles along with different driving form such as 4X2, 6X2, 6X4, 8X4, 10X4. The emission standard covers a range from EURO 2 to EURO 6.Besides,we are convinced that high-quality, systematic, comprehensive and efficient service are the foundation of our career development. With the goal of creating a domestic first-class service enterprise with strict management and advanced technology, we have formulated a "standardized management system, strict process control, guaranteed product management, and quality policy of customer satisfaction, adhered to the far side of customer first, and built good sales and series system, providing customers with high-quality pre-sale, in-sale and after-sale services"
Certificates
Product Packaging
FAQ
Q:How about the warranty?
A:24 months unlimited mileages or 200000 km which occur first.
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How about the lead time?
A:35 working days
Q:How many units of truck does your factory produce per year?
A:Almost 100000 units Nearly 8500 units per month.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service. Yes, we do, our MOQ is 1 unit.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container flatbed container, Ro-Ro ship or bulkship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
