Product Introduction

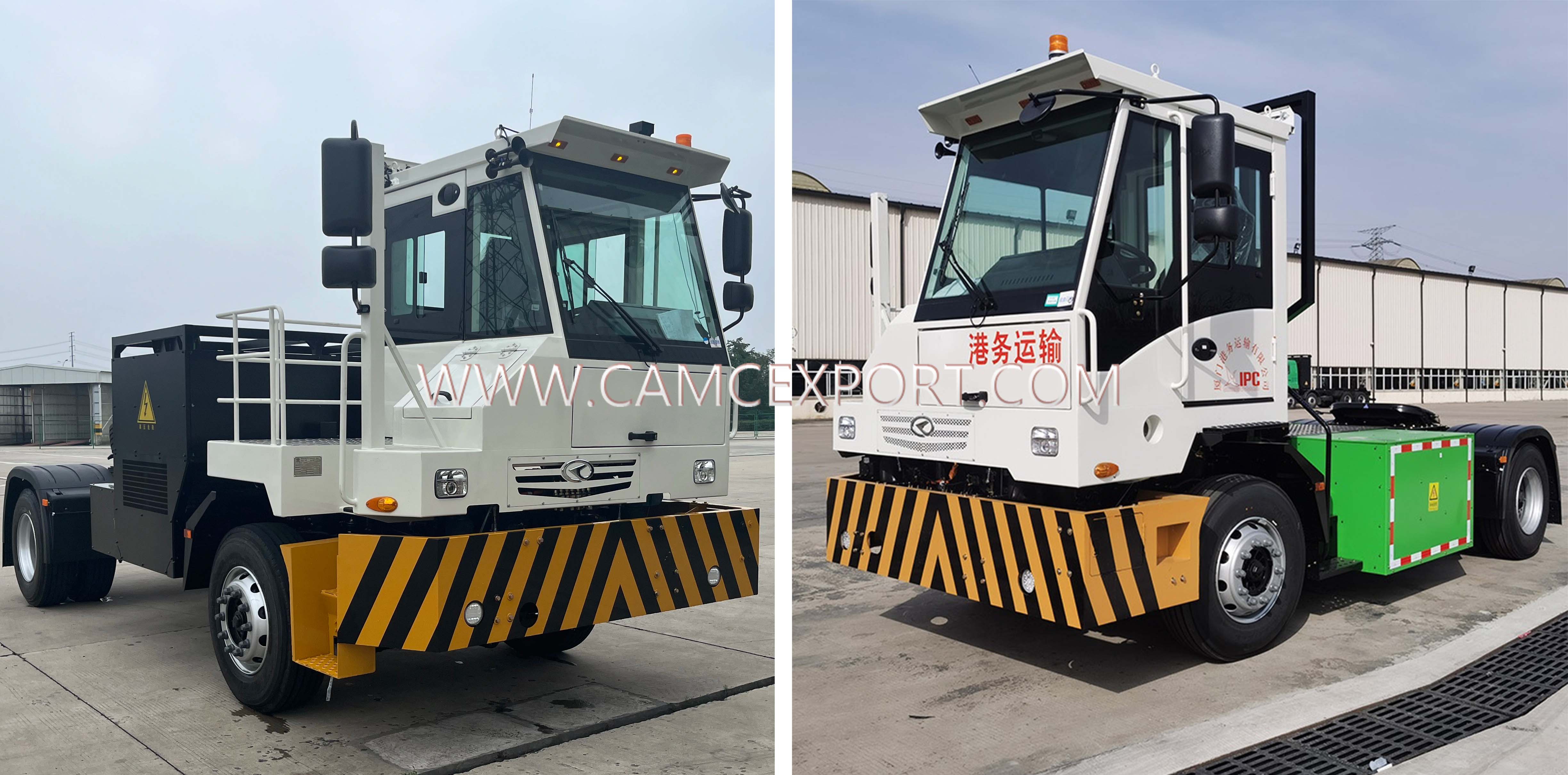

The CAMC dock electric tractor is a zero emission solution designed specifically for modern intelligent ports, equipped with a 220kW permanent magnet synchronous motor (peak 360kW) and a 4-speed AMT gearbox, providing smooth and powerful torque output. Equipped with a 282kWh lithium iron phosphate battery, it supports 6-minute fast battery swapping or dual gun DC fast charging (fully charged in 1 hour), completely solving range anxiety.
Innovatively adopting a biased cab and short suspension design, achieving an industry-leading minimum turning radius of 3.4 meters, perfectly adapting to narrow port environments. High strength steel frame and switchable # 50/# 90 saddle design, with a maximum towing weight of 75 tons, meeting the needs of heavy transportation such as containers and bulk cargo. The intelligent energy recovery system can increase battery life by 15%, and the IP67 protection level ensures reliable operation under harsh working conditions, making it an ideal choice for green and smart ports.
Essential Details
| Type | Battery replacement type of dock tractor |
| Model | HN4180D20C8BEV |
| Driving model | 4×2 |
| Wheelbase (mm) | 3800 |
| Overall dimension (mm) | 6170×2550×3450 |
| Kerb weight (Kg) | 9500 |
| GVW (kg) | 42000 (Overload:75T) |
| Front/Rear radius of gyration (mm) | 1800/1600 |
| Ratio of driving axle | 16T（Optional:13T）/ Ratio:11.98 |
| Motor type | Permanent magnet synchronous moto |
| Motor rated/peak power (kW) | 220/360 |
| Motor rated/peak power (N.m) | 1500/2100 |
| Gearbox | 4shift, AMT |
| Power Battery | Lithium iron phosphate(CATL) |
| Power Battery specs | 618.24 V，281.92 kWh，141 kWh |
| 0~50km/h Acceleration time (s) | 20 |
| Maximum speed (km/h) | 40 |
| Maximum climbing grade (%) | 20 |
| Driving range under standard load combined condition (km) | 80~130 |
| Power on mode（charging/battery replacement | DC dual guns/battery replacement |
| Charging/battery replacement time | Charging 1h, Battery replacement＜6min |
Core strengths
Zero emission high-efficiency power
Equipped with a 220kW permanent magnet synchronous motor (peak 360kW) and a 4-speed AMT gearbox, the torque output is smooth and strong, reducing energy consumption by 60% compared to traditional diesel vehicles, perfectly adapting to high-frequency operation scenarios in ports.
Ultra fast energy supply
Supports dual-mode energy replenishment: 6-minute rapid battery swapping or 1-hour dual gun fast charging (282kWh lithium iron phosphate battery), eliminates range anxiety, and increases daily operating hours by 40%.
Ultimate spatial passability
The offset cab and short suspension design achieve the industry's minimum turning radius of 3.4 meters, coupled with 360 ° panoramic imaging, improving narrow yard passability by 50%.
Flexible adaptation for overload
High strength steel frame+switchable # 50/# 90 saddle, maximum traction of 75 tons, IP67 protection level to cope with salt spray and humid environment, key components have a lifespan of over 100000 hours.
Customer Reviews
Equipment Manager of Rotterdam Port Authority
“Our CAMC electric tractor maintains 95% range even in winter temperatures of minus 10 ℃, and the 6-minute battery swapping system perfectly matches the 24-hour operation rhythm. The 3.4-meter turning radius has increased the scheduling efficiency of container yards by 40%, and the 75 ton traction force even exceeds that of some diesel vehicle models. The intelligent charging scheduling solution provided by the Chinese team has significantly reduced our energy costs by 60%."
Director of Operations, PSA International Port Group, Singapore
"These tractors have been in trouble free operation for 18 months in the hot and humid environment of the equator. The design of double gun fast charging for one hour has completely solved our three shift charging anxiety. The most surprising thing is its IP67 protection level. After experiencing seasonal storms, the electrical system is still as dry as new, and the maintenance cost is 45% lower than that of Japanese competitors."
Company Profile
FAQ
Q: How do you control the quality of product?
A: Our facility operates a standardized production space and holds certifications like ISO, CCC, and BV. All staff are professionally trained, and every single product unit goes through a strict multi-step inspection before leaving the factory.
Q: What are the advantages of the new product？
A: It offers flexible system setups that balance weight, cost, and fuel efficiency perfectly. Plus, it integrates the engine with the generator directly, which boosts operational efficiency significantly.
Q: What are the smart features of this new product？
A: It includes blind-spot monitoring, driver behavior analysis, and connected-vehicle cloud services. Additional smart functions cover one-click activation of dust-suppression systems, real-time cargo tracking, remote automated replenishment, cylinder health checks, and monitoring of mileage, fuel use, and location.
Q: What's new about the new product?
A: It fully meets quality standards, resolving registration-related issues. Its dimensions and official declaration photos are fully compliant with regulatory requirements.
Q: How about your product after-sales service system?
A: We have dedicated after-sales support in most of our key export markets; for other regions, we partner with third-party service providers to ensure coverage.
Q: Why choose you?
A: Our brand has built a solid reputation over decades. We’re equipped with top-tier domestic technology, and our meticulous team ensures each product meets high-quality benchmarks—paired with reliable after-sales support.
Q: Do you accept custom order? What's is your MOQ order?
A: Customized orders are available, and our minimum order quantity is just 1 unit.
Q: What's the payment terms?
A: We accept telegraphic transfers (T/T) or sight letters of credit (L/C) as payment methods.
