| Quantity: | |
|---|---|
35(H) × 24(W) × 9.5(D)cm
CAMC
The CAMC commercial Type1 socket charger is a high-performance charging solution designed specifically for home and commercial scenarios. It strictly follows the IEC 61851 international standard and supports 22kW (380V/32A) three-phase fast charging. With convenient operation, strict safety design, and wide adaptability, it has passed CE/UL and other international certifications, becoming the preferred device for home charging in markets such as Europe, America, and Southeast Asia. It has been exported in bulk to multiple regions around the world, demonstrating CAMC's technical strength and global market competitiveness in the field of new energy charging equipment. The core advantage of this charger lies in its triple intelligent authorization mode (plug and play/RFID card swiping/APP control), which can flexibly adapt to different user needs and is compatible with all electric vehicle models that meet the Type1 standard, with strong adaptability; Adopting military grade safety design, it integrates A-type 30mA AC+6mA DC dual leakage protection, which can quickly cut off the power supply within 0.1 seconds, providing comprehensive and reliable protection; The UV resistant ABS shell with IP65 protection level can withstand outdoor sun and rain, and can operate stably in a wide temperature range of -30 ℃ to 50 ℃, suitable for various complex environments; The simple streamlined appearance combined with LED status indicator lights can provide intuitive charging feedback, easy to operate, and rely on CAMC's comprehensive overseas after-sales service system to provide multilingual technical support, 24-hour call response, and global spare parts supply, providing efficient, safe, convenient, and durable charging solutions for global users.
Dimension | 350(H) × 240(W) × 95(D)mm |
User Interface | 4.3 inch display with Indicator light |
Installation method | Wall-mounted Type/Floor-standing Type Installation |
Wiring method | Bottom enter&out |
Cable length | INPUT CABLE 1M |
Weight | 7.0kg (no charging gun) |
Input voltage | 380V |
Frequency | 45-65Hz |
Power rating | 22KW |
Measurement accuracy | Grade 1.0 on-board |
Output voltage | AC380±20 |
Output current | 32A |
Standby power | 5W |
| Indicator light | YES |
| Display | YES |
Charging interface | IEC 61851 |
Protection | Overvoltage protection, undervoltage protection, overload protection, short circuit protection, ground protection, over temperature protection, lightning protection,type A 30mA + 6mA DC leakage protection |
Working temperature | -40-+65℃ |
Working Humidity | 5%-95% no condensation |
Working altitude | ≤3000m |
IP grade | ≥IP65 |
Cooling mode | Natural cooling |
Applicable | Indoor/Outdoor，No conductive dust, no corrosive gas, no explosive gas, no strong vibration |
Special protection | UV resistance |
MTBF | ≥100000H |
| Installation components | Stand pillar (customize) |
Communication interface | WIFI/4G/OCPP1.6/LAN (customize) |
RFID | 2 user cards (customize) |
Leakage protection | Upgrade to Type A 30mA AC + 6mA DC（three phase） |
Home load balancing | DLB(customize) |
Socket outlet | Change charging cable to socket(not support SAE standard) |
Product properties | APP(customize) |
1. Efficient and fast charging, compliant with standards: strictly following the IEC 61851 international standard, supporting 22kW (380V/32A) three-phase fast charging with high charging efficiency, and passing international certifications such as CE/UL, suitable for market demands in multiple regions around the world such as Europe, America, and Southeast Asia.
2. Intelligent and convenient, widely adaptable: Triple intelligent authorization mode (plug and play/RFID card swiping/APP control), flexible and convenient operation, compatible with all electric vehicles that meet the Type1 standard, suitable for multi scenario charging needs in households and businesses.

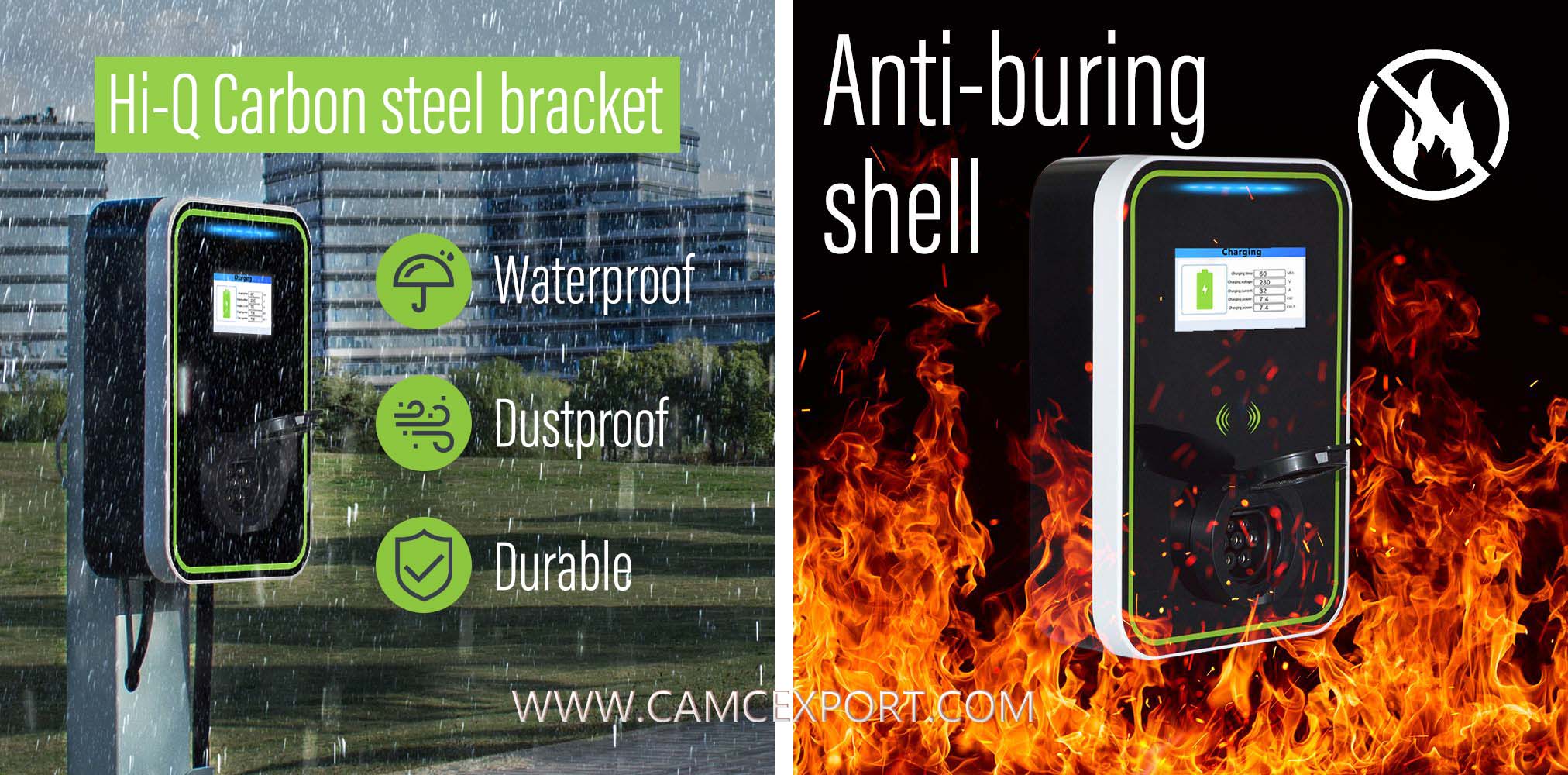

3. Strict safety, environment adaptation: military grade safety design, dual leakage protection, 0.1 second fast power-off; IP65 protection level+UV resistant ABS shell, stable operation in a wide temperature range of -30 ℃ to 50 ℃, can withstand harsh outdoor environments, safe and durable.
4. Intuitive and easy-to-use, with comprehensive after-sales service: The streamlined appearance is simple and elegant, and the LED status indicator light provides intuitive charging feedback; Relying on the global overseas service system, with multilingual support, 24-hour response, global spare parts supply, and worry free operation and maintenance.
1. A European household charging user: “We have been looking for efficient chargers that are suitable for home scenarios, and the CAMC commercial Type1 socket charger fully meets our expectations. 22kW three-phase fast charging speed is fast, compliant with IEC 61851 standard, and the triple authorization mode is very convenient. I usually use plug and play mode, and my family can easily operate it. IP65 protection and dual leakage protection are very reassuring, and outdoor installation is not afraid of sun and rain. The LED indicator light can clearly see the charging status, making it an exclusive charging device for electric vehicles at home. ”
2. A commercial charging operation manager in Southeast Asia: “We operate charging points in communities and commercial parks, and have extremely high requirements for the compatibility, safety, and durability of chargers. This Type1 socket charger performs outstandingly. Compatible with all Type1 standard electric vehicles, triple authorization mode suitable for different users, 22kW fast charging improves operational efficiency, military grade safety design and wide temperature adaptability, can adapt to local changing climates, CE certification meets international standards, and with comprehensive overseas after-sales support, operation and maintenance are worry free. It has been put into mass operation. ”
CAMC International is a leading enterprise in China's heavy-duty vehicle industry. As a national key R&D and production base for heavy-duty vehicles, specialized vehicles, and core components, the company has maintained a leading position in the industry since its establishment in the 1970s. As the only truck manufacturer in China with the ability to independently produce the entire industry chain including engines, transmissions, axles, chassis, and cab, CAMC has achieved complete autonomy and controllability from key components to the entire vehicle.
Relying on the research and development capabilities of national level technology centers, the company's products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in infrastructure, mining, logistics, and other fields. With the advantage of a complete industrial chain and continuous technological innovation, CAMC not only occupies an important position in the domestic market, but also exports its products to more than 80 countries and regions around the world. As a high-end equipment manufacturing enterprise supported by national policies, the company is continuously promoting the upgrading and development of China's commercial vehicle industry towards intelligence and green direction.
Q:Which vehicles is this DC charging column suitable for?
A:Widely used for charging cars, engineering vehicles, logistics vehicles, sanitation vehicles and other vehicles
Q:What networking methods are supported?
A:Support 4G、Ethernet networking
Q:What are the protection functions？
A:Short circuit, over current, over temperature, leakage, over voltage, etc.
Q:What are the charging modes？
A:Automatic charging, by time, by battery, by amount
Q:How to start the charging pile？
A:Swipe IC card, WeChat scan code, VIN, password
Q:How long is the warranty？
A:Warranty 1 year. If you need to increase the warranty: 3% in the second year, 4% in the third year, 5% in the fourth year, and 8% in the fifth year.
Q:Are there other types and series of charging piles?
A:We have a full-scene, full-category charging pile product system, such as H series AC charging piles, X series AC charging piles, L series DC charging piles, T series AC charging piles, etc., to meet your diverse needs.
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q:Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
