Product Overview

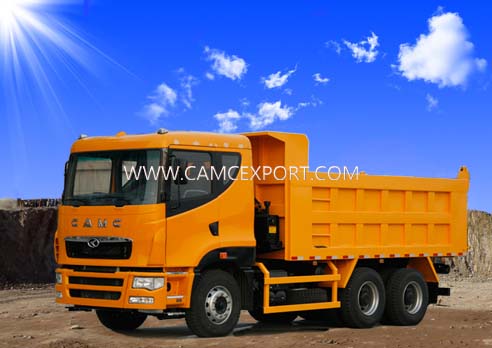

As a flagship product in the CAMC engineering machinery field, this 6 × 4 dump truck features the brand's iconic orange paint and is equipped with a newly upgraded engineering transportation solution. The innovative design of the rear tilting large capacity cargo compartment (standard volume 28m ³) combined with reinforced steel structure is optimized for efficient transportation of building materials such as sand, gravel, and silt.
Essential Details
CAMC TRUCK SPECIFICATION | |
NAME | Dump Truck |
BRAND/SERIES | CAMC / H9 |
CABIN | |

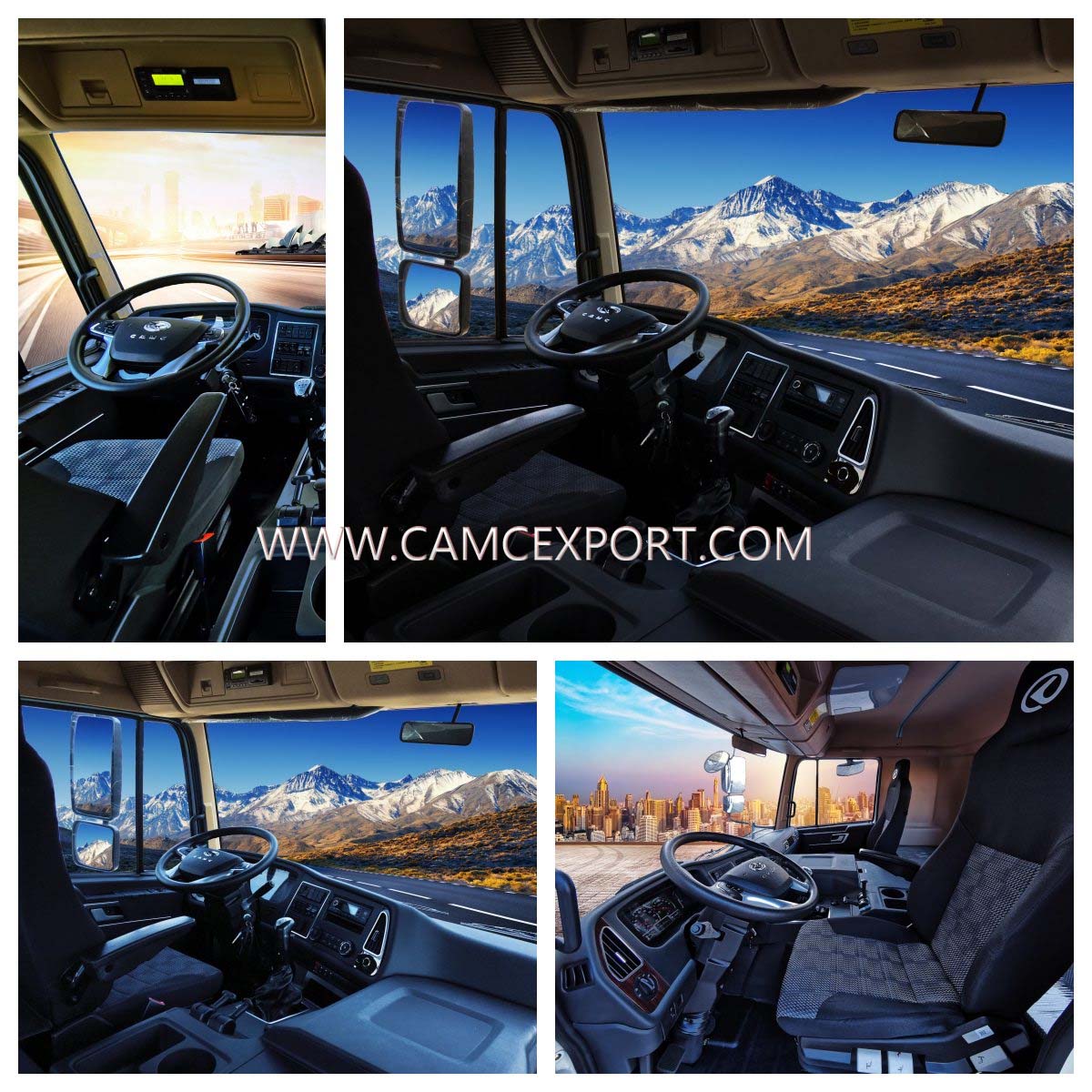

CAMC LHD H9 flat roof with A/C, radio, pneumatic shock absorber, pneumatic seat, blue teeth, mp3, and luxury interior. | |
ENGINE | |
Supplier | CAMC |
Model | CM6D18 375 50 |
Fuel type | Diesel |
Rated power/horsepower（kw/hp） | 276/375 |
Rated speed(rpm) | 1900 |
Displacement (L) | 9.84 |
Emission Standard | Euro 5 |
Cylinders | 6 |
Controller type | Mechanical |
| TRANSMISSION | |
Supplier | FAST |
Model | 12JSD180T（PTO） |
Speed ratio | 12 |
CHASSIS | |
Drive type | 6×4 |
Overall dimension (mm) | 8800x2550x3700 |
Wheel base(mm) | 3900+1350 |
Kerb Weight (kg) | 12300 |
Rated GVW/ GVW (kg) | 25000 |
FRAME | |
Size (H*W*T) | Height:310mm，Width:90mm，Thickness:8mm+5mm (Double) |
Front axle | ISUZU technology steering axle with double T-cross section, Rated capacity:7.5T |
Rear axle | Mercedes-Benz technology 16T casting axle , with double reduction and differential locks between axles， Rated capacity:16T |
Ratio:4.769 optional:3.867, 4.267,4.769,5.263 | |
Spring | 9/9/12 |
Tyre | 12.00R20 Steel tire,10+1 pieces |
Product Advantages
Perfect balance between power and load capacity: Based on a mature four stroke turbocharged engine platform, combined with optimized transmission system, it achieves a super strong load capacity of 45 tons while maintaining 340 horsepower of powerful power
Intelligent loading and unloading system: The hydraulic lifting mechanism adopts a dual pump linkage design, reducing unloading time to 55 seconds and increasing the service life of the cargo compartment wear-resistant lining by 30%
All terrain adaptability: Enhanced trapezoidal frame combined with multi-level shock absorption suspension, easily coping with complex road conditions on construction sites, leading the industry in passability
Economic operation guarantee: By 2026, the factory's direct supply vehicle models will adopt modular design, reducing maintenance costs by 25% and increasing comprehensive operational efficiency by 40%
Operation Guide
1.Pre-Start Inspection：Carefully check whether the tire pressure meets the standard, whether the hydraulic oil level is within the standard range, and confirm that the cargo bed is fully reset without deviation.
2.Driving Precautions：Strictly prohibit overloading. Be sure to slow down when turning or driving on ramps, and keep a safe distance from the vehicle in front.
3.Unloading Operation Process：Park on a flat and solid ground, pull the handbrake tightly → unlock the cargo bed locking device → slowly operate the hydraulic lever to lift the cargo bed → reset the cargo bed after unloading and check again whether the locking state is firm.
4.Daily Maintenance Points：Clean the air filter regularly, inspect the tightness of the hydraulic system pipelines, and replace the engine oil in a timely manner according to the specified mileage.
Customer Reviews
1. Infrastructure Project Manager in Indonesia
“Our CAMC 6 × 4 dump truck performed excellently in the Jakarta Port expansion project. The 28 cubic meter oversized cargo compartment, combined with a dual pump hydraulic system, increases daily transportation efficiency by 40%. The engine operates stably in humid environments, with maintenance costs 35% lower than the Japanese brands we previously used.”
2. Director of Mining Transportation in Saudi Arabia
“This dump truck perfectly adapts to the high temperature environment of our desert mining area. With a load capacity of 45 tons, it can easily handle sand and gravel transportation, and the reinforced frame demonstrates amazing durability in rugged terrain. The modular design of the 2026 direct supply model has reduced daily maintenance time by 50%, truly achieving a perfect combination of high performance and low cost.”
Our Factory
CAMC International is a leading enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
Product Packaging
Our sea freight solution is designed to be safe, efficient, and reliable. We work with a network of trusted carriers and logistics partners to ensure that your cargo is transported securely and on time. Whether you are shipping a small package or a large container, we have the expertise and resources to get your goods where they need to go.
One of the key benefits of our sea freight solution is its efficiency. We understand that time is of the essence when it comes to shipping goods, and we have streamlined our processes to ensure that your cargo is delivered as quickly as possible. Our typical delivery time is around 35 days, which is among the fastest in the industry.
FAQ
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
