CAMC

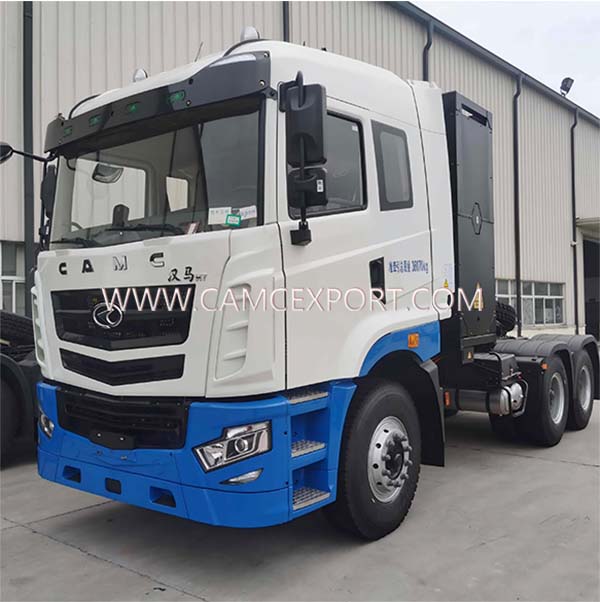

The CAMC H7 6 × 4 electric tractor is a new energy benchmark vehicle designed specifically for heavy logistics transportation. With strong power, reliable quality, and comprehensive performance, it has passed the EU ECE R100 electric vehicle safety certification and is suitable for high-frequency short distance transportation scenarios such as port container and mineral transportation. Currently, it has achieved large-scale operation in markets such as Southeast Asia and the Middle East, becoming the preferred equipment for overseas heavy new energy transportation. The car is equipped with a 360kW high-power motor and a Hanma 9-speed AMT gearbox, with a peak torque of 2400N · m and strong and stable power output; Paired with CATL high-density battery pack, it has been tested through operating conditions and can achieve a single charge range of up to 400 kilometers. It supports 1-hour fast charging to replenish 80% of the battery, greatly reducing the replenishment time and adapting to high-frequency operation needs. Through rigorous road testing of 700000 kilometers, its three electric system can maintain stable output and full reliability in extreme environments ranging from -30 ℃ to 50 ℃; The whole vehicle adopts a lightweight overall frame design, with a rated load of 49 tons, equipped with an intelligent energy recovery system with a recovery efficiency of ≥ 25%, and a four channel ABS+EBS braking system, which can reduce the temperature rise of heavy-duty downhill braking by 40%, balancing efficiency and safety. The cabin configuration is humanized, equipped with full suspension shock absorption technology, multifunctional air seats, and a 15 inch intelligent central control screen. Combined with NVH optimized design, the cabin noise is controlled within 56dB, greatly improving driving comfort and meeting the efficient, safe, and comfortable needs of heavy short distance transportation in all aspects, in line with the global trend of new energy logistics transformation.
| Drive Wheel | 6×4 |
| Seats | ≤5 |
| Horsepower | 360kw |
| Engine Capacity | 282kwh |
| Tire Certification | ECE, GCC, ISO, DOT, ECE, GCC, ISO |
| Tire Design | Radial |
| Condition | New |
| Battery brand | CATL |
| Voltage and capacity | 618.24V, 456Ah |
| Battery power | 282kwh |
| Battery type | Lithium iron phosphate |
| Motor rated/peak torque(N.m) | 1500/2100 |
| Comprehensive driving range (km) | 150~170 |
| Charging time | 1.5h |
| Gearbox | 9 speed AMT with PTO |
| Kerb weight(kg) | Standard 11000, overload 12500 |
| Wheelbase(mm) | 3800+1350 |
| Transport Package | Standard Export |
| Specification | 7390x2550x3835mm |
| Trademark | CAMC |
| Origin | China |
| Production Capacity | 50000 |
1. Strong power and efficient energy replenishment: Equipped with a 360kW high-power motor and a Hanma 9-speed AMT gearbox, the peak torque is 2400N · m, and the power output is stable and strong; The CATL high-density battery pack achieves a range of 400 kilometers under working conditions, with 80% energy replenishment in 1 hour of fast charging, suitable for high-frequency short distance transportation rhythms.
2. Reliable and durable, with wide environmental adaptability: Through rigorous road testing of 700000 kilometers, the three electric system can stably output in extreme environments ranging from -30 ℃ to 50 ℃. It has been certified by the EU ECE R100 safety certification, ensuring quality and adapting to complex working conditions in different regions.
3. Safe and efficient, significant cost reduction: Lightweight overall frame design, rated load of 49 tons; Intelligent energy recovery system (recovery efficiency ≥ 25%)+four channel ABS+EBS braking system reduces brake temperature rise and energy consumption, making long-term operation more economical.
4. Comfortable and intelligent, with strong adaptability: fully suspended shock absorption, multifunctional air seats with NVH optimization (noise ≤ 56dB), excellent driving experience; The 15 inch intelligent central control screen enhances operational convenience and is suitable for high-frequency short distance transportation scenarios such as ports and minerals. It has been widely operated in Southeast Asia and the Middle East.
1. The person in charge of a logistics enterprise at a port in Southeast Asia: “We mainly engage in short distance and heavy load transportation of port containers. The CAMC H7 6 × 4 electric tractor performs very well, with strong 360kW power and a range of 400 kilometers that can fully cover daily operations. The 1-hour fast charging does not require long downtime, and the intelligent energy recovery system also saves a lot of energy consumption. And it has passed the EU ECE R100 certification, adapted to our operational standards, and runs stably in local high-temperature environments, becoming the main model of our fleet.”
2. Procurement Manager of a Mineral Transportation Company in the Middle East: “The road conditions for mineral transportation are complex and the load is high, requiring extremely high reliability for vehicles. This electric tractor has passed 700000 kilometers of testing, and the three electric system can stably output even under extreme temperature differences. The 49 ton rated load fully meets the heavy load requirements. The braking system is safe and reliable, and coupled with comfortable driving configurations, it greatly alleviates driver fatigue. The operating cost is much lower than that of fuel vehicles, and we will continue to purchase in bulk in the future.”
CAMC was founded in 1970 and is affiliated with Geely Remote New Energy Commercial Vehicle Group. It is a domestic A-share listed intelligent manufacturing enterprise for heavy-duty commercial vehicles. Its headquarters is located in Ma'anshan Economic Development Zone, Anhui Province, and it has been deeply engaged in the research and development of heavy-duty trucks for more than 50 years. CAMC has three independent core brands: Hualing Heavy Duty Truck, Xingma Special Vehicle, and Hanma Power, and has built a closed-loop manufacturing system for the entire industry chain of complete vehicles, special vehicles, self-developed powertrains, three electric systems, and on-board supporting equipment.
The company has established an intelligent vehicle factory and engine intelligent manufacturing base in Ma'anshan, covering an area of over 3000 acres. The automated production line is equipped with intelligent machining centers, robot welding and AGV flexible production lines, with an annual planned production capacity of 100000 vehicles and a total annual production capacity of 50000 self-developed power units; Establishing a national level enterprise technology center, national level industrial design center, and postdoctoral research workstation, collaborating with multiple universities to build a power research and development laboratory, holding over 900 vehicle and power patents, realizing independent research and development of the entire chain of core components for engines, transmissions, drive axles, electronic control, and new energy, and eliminating external dependence on key components.
The enterprise is anchored in the global product strategy of alcohol hydrogen+pure electric dual main lines, with a comprehensive focus on clean energy vehicle models domestically and a parallel supply model of fuel and new energy overseas. Main product matrix: Fuel powered models mainly include H7/H9 6 × 4 mainline tractor, 8 × 4 engineering dump truck, and powder material tank truck, suitable for infrastructure mining, long-distance mainline, and building materials transportation; The core of new energy is pure electric tractor, port battery swapping tractor, electric mixer truck, methanol extended range slag truck, all equipped with CATL lithium iron phosphate batteries, supporting fast charging and high-speed battery swapping dual energy replenishment solutions, suitable for port short haul, steel plant transportation, urban zero emission infrastructure, closed mining areas and other scenarios; Equipped with HM series diesel/methanol engines (270~560 horsepower), CCS marine power, onboard air compressors, CAMC DC fast charging piles, it can provide one-stop support for fleet station energy replenishment infrastructure projects.
Based on the self-developed strength of the full stack, we provide customized landing services for the global market: support for left-hand/right-hand drive chassis modification, Euro II to Euro VI full emission standard calibration, multilingual vehicle instrument modification, chassis strengthening for extreme working conditions such as high temperature/sand/high humidity, and regional voltage electrical adaptation; The entire series of vehicles and power equipment have obtained mainstream international export certifications such as CE, GCC, RoHS, CCS, etc., and can provide a complete set of vehicle customs clearance and local registration materials, solving the problem of overseas access in one stop.
Relying on the global layout of the the Belt and Road, CAMC products are sold in batches to more than 60 countries in Southeast Asia, the Middle East, Central Asia, Africa, South America and other countries. Localized distribution companies and central spare parts warehouses are set up in key overseas regions to build a localized spare parts storage network; The global after-sales service implements a unified original factory warranty, and the core components of the entire vehicle, motor, electronic control, and engine enjoy original factory warranty. It is equipped with 7 × 24-hour cross-border remote technical operation and maintenance, and can dispatch engineers for on-site debugging and agent technicians for practical training. It provides an integrated solution of vehicle, power, charging equipment procurement, and full life cycle maintenance for overseas engineering general contractors and large logistics groups.
Based on Geely's global methanol technology platform, we will continue to iterate alcohol hydrogen power and pure electric heavy-duty truck products, with the development goal of becoming a green heavy-duty transportation equipment service provider, and continuously expand cooperation in the global clean energy heavy-duty truck market.
Q1: What are main application fields of CAMC H7 6×4 electric tractor?
A1: It is widely used in port container transportation, steel factory raw material haulage, industrial park fixed-line shuttle, logistics park container transfer and zero-emission restricted areas, ideal for short-to-medium distance heavy-load transport.
Q2: What about powertrain and chassis configuration?
A2: Adopts high-efficiency permanent magnet synchronous driving motor with large low-speed torque, matched AMT automated transmission. Reinforced 6×4 heavy-duty chassis and optimized suspension structure guarantee stable full-load climbing and long-distance heavy haul. Both high-roof and flat-roof cab are optional.
Q3: Battery setup, charging & battery swap solution and driving range?
A3: Equipped with CATL lithium iron phosphate battery. It supports DC fast charging and quick battery swap. Fast charging finishes within 1–1.5 hours; battery swapping only takes 3–5 minutes to resume operation. Full-load cruising range is from 180km to 240km depending on battery capacity.
Q4: What cost advantages compared with traditional diesel tractors?
A4: No diesel consumption and regular engine oil replacement costs. Electric drive structure has fewer vulnerable parts to greatly cut daily maintenance expense. Regenerative braking system recycles kinetic energy to lower power consumption, effectively reducing fleet total operation cost.
Q5: Cab safety and driving comfort?
A5: Ergonomic spacious cab equipped with shock-absorbing adjustable driver seat to relieve long-hour driving fatigue. Complete ABS & EBS brake system plus multiple passive safety configurations ensure reliable running under complex road and full-load working conditions.
Q6: Can we customize for different overseas market demands?
A6: Available for LHD/RHD conversion, multi-language instrument panel, local electrical parameter adjustment and special calibration for high-temperature, humid or dusty regions. The vehicle is CE certified with full set of export documents for customs clearance and local registration.
Q7: Warranty and global after-sales support?
A7: Whole vehicle enjoys standard original factory warranty; core components including battery, motor and electric control system get extended warranty. Supported by CAMC global service network covering over 60 countries, we supply genuine spare parts, 24-hour online technical guidance and local driver maintenance training.
