59.63cm*20.55cm*62.05cm
CAMC

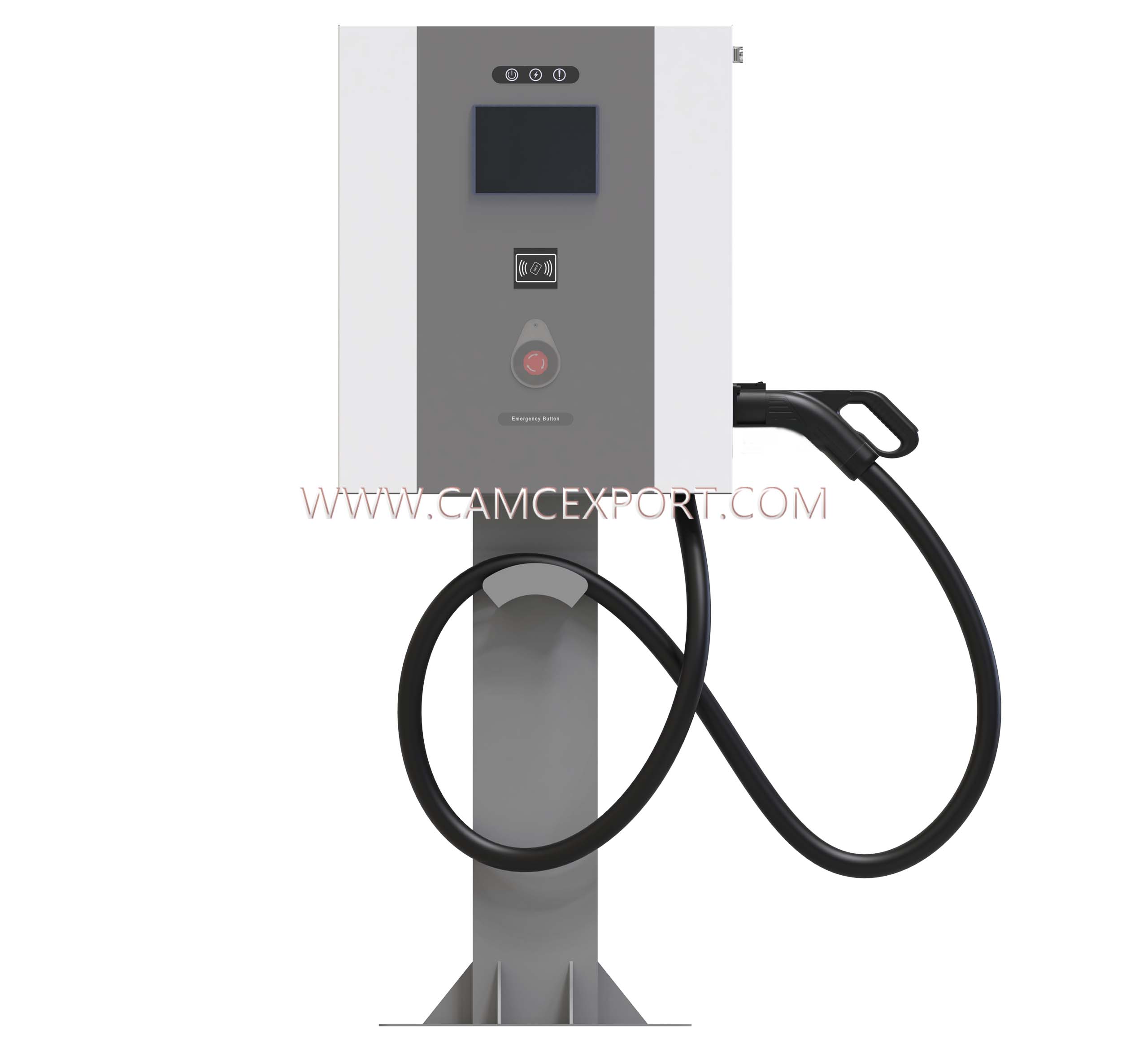

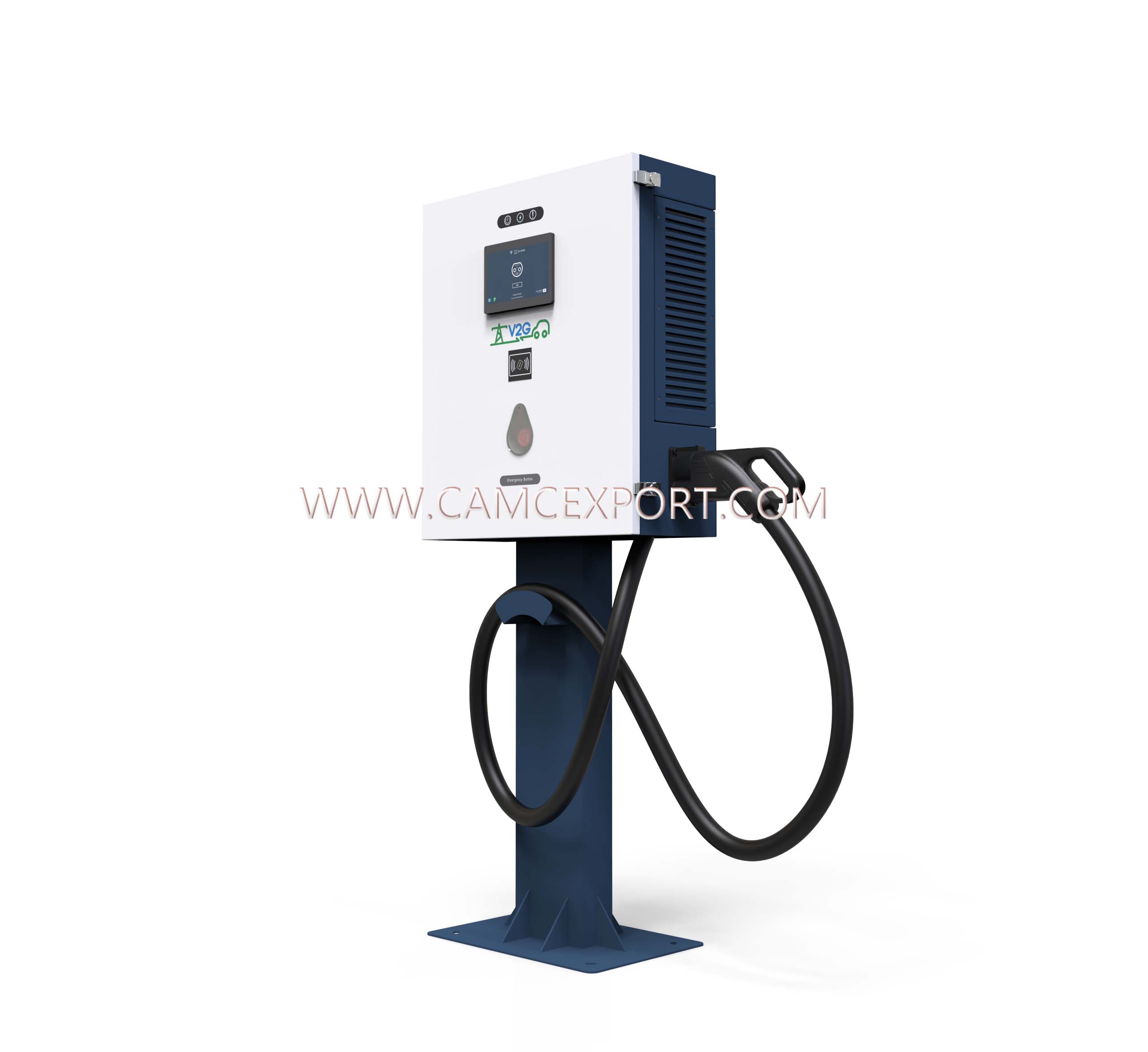

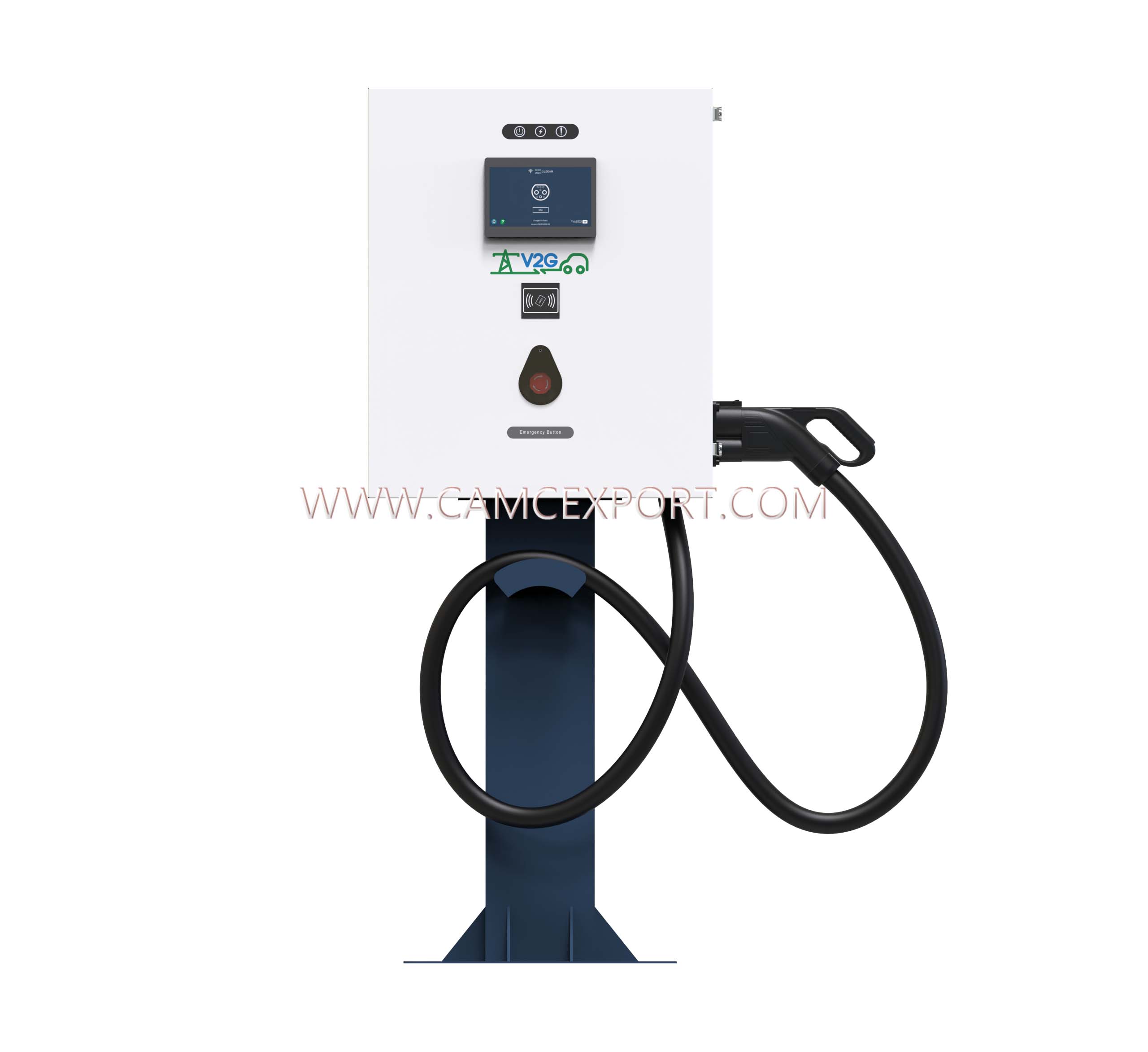

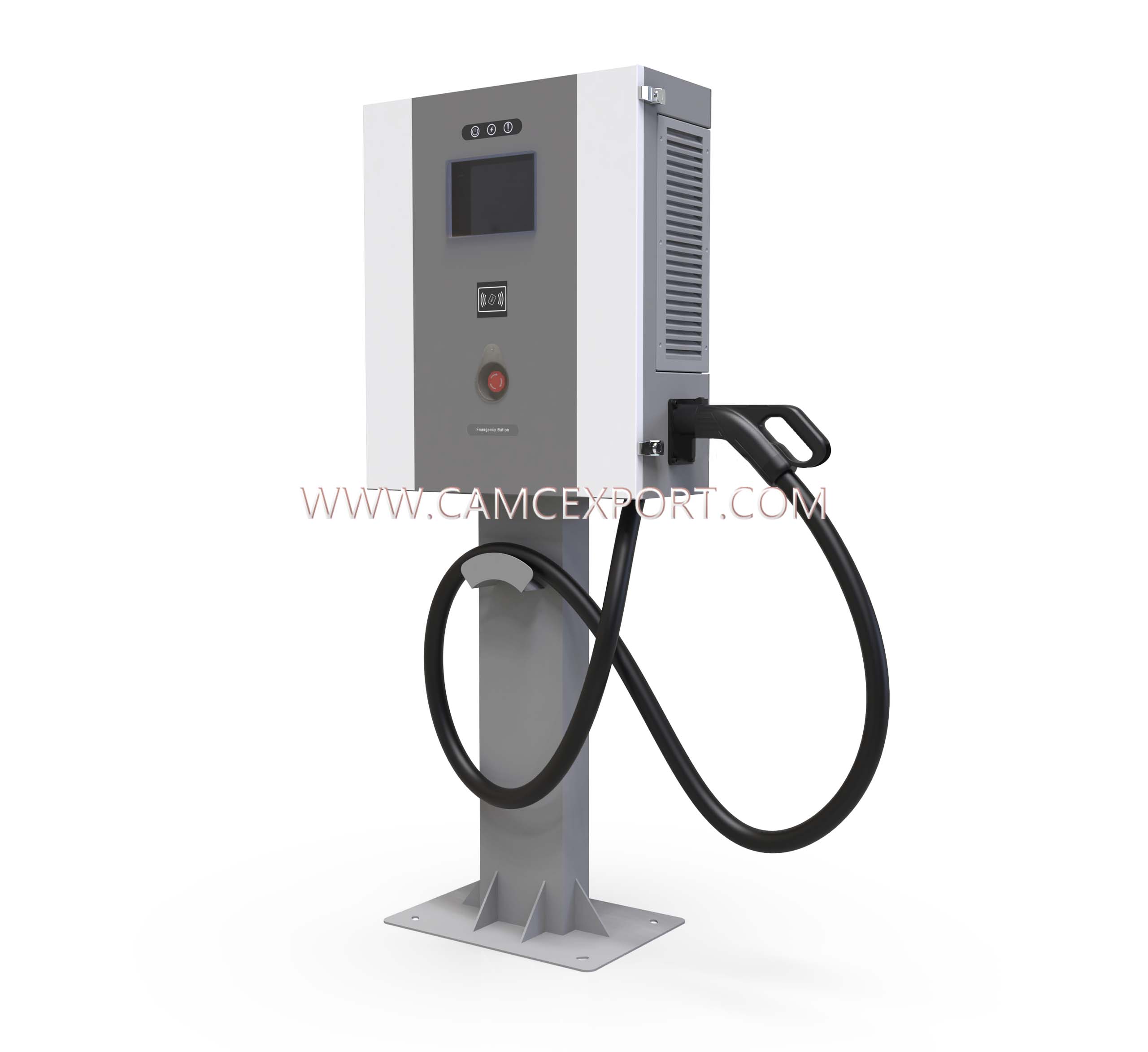

The CAMC DC 30kW electric vehicle charger is a single gun fast charging device tailored to meet the efficient charging needs of various scenarios. It integrates intelligent operation and multiple safety protections, and is suitable for various scenarios such as commercial parking lots and dedicated charging stations. This product supports both floor standing and wall mounted installation, with flexible and convenient deployment. Its compact structure does not require complex site modifications, greatly reducing the cost of scene adaptation. The maximum output power of the device can reach 30kW, and the output voltage range covers 50V~1000VDC. It is compatible with various electric vehicle models on the market, easily meeting the demand for fast energy replenishment and filling the market gap between AC slow charging and high-power DC fast charging; Simultaneously supporting 50Hz ± 10% broadband input, ensuring stable and efficient power output, perfectly balancing charging speed and user convenience. Equipped with a 7-inch high-definition touch screen, the operation interface is intuitive and easy to understand, and can display core parameters such as charging status, voltage, and current in real time, making it convenient for users to quickly operate and view. The product adopts IP54 protection level, which can effectively prevent dust from entering and water splashes from all directions. With AC2500V pressure resistant design, it can easily cope with complex outdoor environments and meet the core protection requirements of outdoor charging piles; Simultaneously integrating multiple safety protection mechanisms such as overvoltage, overcurrent, and short circuit, combined with real-time insulation monitoring function, comprehensively ensuring the safety and reliability of the charging process, in compliance with the latest national electrical safety standards. In addition, the device adopts a modular design, which makes maintenance and upgrading efficient and convenient in the later stage. With professional quality, it has become an ideal choice for commercial and public charging scenarios, providing users with a safe, efficient, and convenient one-stop charging solution.
| Power | 20kW/30kW |
| Model | DC (Single gun) |
| Connector | GBT/CCS1/CHAdeMO/CCS2 |
| Max Power | 30kW |
| Emergency Stop Button | Yes |
| Communication Protocol | OCPP1.6J Or other |
| Input Voltage | 380V (-25%,+25%) AC |
| Frequency | 50Hz+ 10% |
| Output Voltage | 50V~ 1000VDC |
| Protection Grade | IP54 |
| Power distribution | Single gun |
| Power factor | 20.99 |
| Peak efficiency | 95.5% |
| Overall efficiency | 94% |
| axiliay power supply | 12V |
| humidness | ≤95% |
| Soft startup time | 3-8s |
| Output voltage error | ≤+0.5% |
| Output current error | ≥30A ，≤+1%; <30A ，≤+0.3A |
| Voltage accuracy | ≤0.5% |
| Steady flow accuracy | ≤1% |
| Voltage ripple | ≤1% |
| Current sharing | ≤5% |
| Load adjustment rate | ≤1% |
| Emc | GB/T 19826-2014: 5.4 |
| Starting mode | Swipe card/small program scan code |
| Insulation resistance | ≥10MΩ |
| Withstand voltage | AC2500V |
| Display screen | 7 inch touch screen |
| istallation mode | Floor/wall hanging |
| Operating temperature | -35°C~ +55℃ |
| Charging gun length | 3m/4m/5m |
| Altitude | ≤2000m (customization required for altitudes above 2000m) |
| Outer dimension | 596.3mm*205.5mm*620.5mm |
| Harmonic distortion | ≤5% |
1. Flexible deployment and strong adaptability to different scenarios, supporting both floor standing and wall mounted installations, with a compact structure that does not require complex site modifications, significantly reducing adaptation costs, and perfectly adapting to various scenarios such as commercial parking lots and dedicated charging stations;
2. Efficient compatibility and stable charging, with a maximum output power of 30kW and output voltage coverage of 50V~1000VDC, compatible with various electric vehicle models, filling the market gap between AC slow charging and high-power DC fast charging. Equipped with 50Hz ± 10% broadband input, it ensures stable power output, balances charging speed and convenience;
3. Easy to operate and highly visual, equipped with a 7-inch high-definition touch screen, the interface is intuitive and easy to understand, and can display core parameters such as charging status, voltage, and current in real time, making it convenient for users to quickly operate and view;
4. It is safe, reliable, and easy to operate. It adopts IP54 protection level and AC2500V withstand voltage design, which can cope with complex outdoor environments. It integrates multiple safety protection mechanisms and real-time insulation monitoring, which complies with national electrical safety standards. The modular design makes maintenance upgrades efficient and worry free in the later stage.
1.As a manager of a commercial parking lot in Germany, we chose CAMC DC 30kW EV chargers for our parking area, and they have brought great convenience to our customers. The dual installation options (floor-standing and wall-mounted) allowed us to make full use of the limited space, and the compact design didn’t require any complex site renovation. The 30kW charging speed is efficient, and it’s compatible with all kinds of electric vehicles in our parking lot, perfectly solving the problem of slow charging. The 7-inch touch screen is very user-friendly, and even elderly users can operate it easily.
2.We operate a public charging station in Australia, and CAMC DC 30kW chargers have performed stably in the outdoor environment for half a year. The IP54 protection level effectively prevents dust and rain from damaging the equipment, and the multiple safety protection mechanisms make us completely assured of the charging safety. The modular design is a big highlight—when we need maintenance or upgrade, we don’t have to shut down the entire equipment, which greatly reduces our operation and maintenance costs and ensures the normal operation of the charging station.
Founded in 1970 and headquartered in Maanshan, Anhui Province, Hanma Technology is an A-share listed heavy-duty equipment manufacturer controlled by Geely Remote New Energy Commercial Vehicle Group, a core industrial chain leader of Anhui commercial vehicle industry with over 55 years of R&D and production experience. Covering over 2600 mu of intelligent production base, the group owns national-level technical center, postdoctoral workstation and provincial key lab for powertrain, achieving full independent R&D and in-house production of complete vehicles, engines, transmissions, axles, BDW truck-mounted air compressors, marine diesel engines and DC EV chargers, guaranteeing stable quality and adaptability to diversified global working conditions.
Supported by three core brands: Hualing Heavy Truck, Xingma Special Vehicle and Hanma Powertrain, CAMC follows a dual-track overseas strategy: conventional diesel plus new energy, while focusing on full new-energy layout for domestic market. Vehicle portfolio includes H7/H9 highway tractors, 6×4/8×4 construction dump trucks and bulk powder tankers for diesel range; new-energy lineup covers M5/M7E full-electric 8×4 concrete mixers, X7E port electric tractors, methanol extended-range engineering trucks and battery-swappable dumper trucks, widely applied in infrastructure, mine haulage, concrete transportation, port shuttle and sanitation worldwide.
high-temperature, dustproof & moisture-proof upgrade is available for Middle East, Southeast Asia and Africa harsh environments. All products pass CE, GCC, RoHS certification for smooth customs clearance. Under BRI initiative, CAMC products are exported to more than 60 countries across Southeast Asia, Middle East, Africa, Central Asia and South America. Its extended-range concrete mixer debuted in Malaysia as the first of its kind in Southeast Asia, and full-electric heavy trucks have been delivered to Brazil in bulk with growing overseas sales year by year.
Global aftersales network delivers unified factory warranty for trucks, marine engines, compressors and chargers, with localized spare parts warehouses stocking core consumables in key overseas regions. 24/7 online technical support plus on-site commissioning and mechanic training are available, supporting one-stop sourcing and full-lifecycle maintenance service. Empowered by Geely’s global R&D resources on methanol & EV technology, CAMC keeps innovating battery-electric, extended-range and hybrid products to be a top global supplier of green heavy-duty integrated solutions。
Q1：What’s the main technical parameter of 30kW DC charger?
A: Rated constant power 30kW, three-phase AC380V input, DC output range 200–1000V, max output current 100A. Wall-mounted structure, air cooling, IP54 protection grade for indoor and outdoor installation.
Q2：Which charging plug types can be chosen?
A: Three mainstream connectors optional: CCS2, GB/T, CHAdeMO, single gun configuration as standard, matching most commercial EVs, electric mixer trucks and electric tractors of CAMC.
Q3：What intelligent functions and communication protocols does it support?
A: Equipped with 4.3-inch touch screen, support OCPP1.6J protocol, 4G+Ethernet dual communication. Realize RFID card swiping, QR code start-stop charging, remote background management, billing statistics and remote OTA upgrade; dynamic load balancing optional.
Q4：Complete safety protection functions?
A: Multiple safety protection including overvoltage, undervoltage, overcurrent, short circuit, leakage, lightning protection, charging gun temperature detection and emergency stop. Electronic lock on gun prevents live pulling out; auto stop charging when vehicle BMS is abnormal.
Q5：Certifications and overseas grid customization?
A: Standard CE & RoHS certificates, GCC available upon request. Can adjust input voltage for 400V/50Hz European standard; optimize heat dissipation for high-temperature Middle East and humid Southeast Asia environment.
Q6：Applicable vehicle range and charging time?
A: Suitable for all electric vehicles with DC BMS, including electric passenger cars, electric vans, CAMC electric construction trucks. A 60kWh battery from 20% to 80% takes around 50–65 minutes.
Q7：Warranty and after-sales service for global customers?
A: 24-month full machine warranty, 36 months for power module and main control board. Core spare parts stocked in overseas warehouse, 24-hour online technical guidance and on-site installation training available.
