Product Description

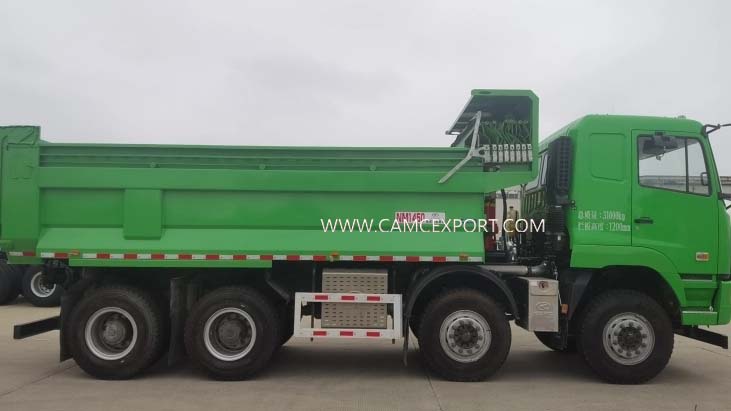

The CAMC 8×4 Electric Dump Truck is a brand-new new-energy heavy-duty vehicle designed for urban infrastructure, mining short-haul transport, and eco-friendly engineering projects. Highlighted by "zero emissions, strong power, and high intelligence," it is ideal for urban construction waste removal, mine bulk material hauling, and municipal earthmoving. Equipped with a high-power electric drive system, a luxurious cab, and smart features, it stands as a benchmark in the new-energy commercial vehicle sector—balancing environmental compliance and operational efficiency.
Essential Details
CAMC TRUCK SPECIFICATION | |
NAME | Dump Truck |
BRAND/SERIES | CAMC / Classic(Euro type) |
CABIN | |
CAMC LHD classic flat roof with A/C, radio, Mechanical shock absorber, Mechanical shock seat, blue teeth, mp3, and luxury interior. | |
ENGINE | |
Supplier | CAMC |
Model | CM6D28 420 31 |
Fuel type | Diesel |
Rated power/horsepower（kw/hp） | 309/420 |
Rated speed(rpm) | 1900 |
Displacement (L) | 11.81 |
Emission Standard | Euro 2 |
Cylinders | 6 |
Controller type | Mechanical |
TRANSMISSION | |
Supplier | FAST |
Model | 9JSD200T（Power Take Off） |
Speed ratio | 9 |
CHASSIS | |
Drive type | 8×4 |
Overall dimension (mm) | 10080x2550x3700 |
Wheel base(mm) | 1850+3370+1350 |
Kerb Weight (kg) | 14870 |
Rated GVW/ GVW (kg) | 31000/40000 |
FRAME | |
Size (H*W*T) | Height:310mm，Width:90mm，Thickness:8mm+8mm (Double) |
Front axle | ISUZU technology steering axle with double T-cross section, Rated capacity:7.5T |
Rear axle | Mercedes-Benz technology 16T casting axle , with double reduction and differential locks between axles， Rated capacity:16T |
Ratio:5.263 optional:3.867, 4.267,4.769,5.263 | |
Spring | 9/9/12 |
Tyre | 12R22.5 Vacuum tire,12+1 pieces |
Product Advantages
The cab adopts advanced production technology, all-metal structure, and fine workmanship;
The frame adopts a unique belly-shaped structure. The main and auxiliary beams are small in combination. The rigidity is good and the weight is light
The electrical system adopts computer synthesis technology, and the fault can be diagnosed by itself
The main assembly is selected from well-known brands at home and abroad, with good product matching, stable vehicle performance and reliable quality
Customer Reviews
“Very happy to receive my car. This is a satisfying car buying experience. Jason's service is very good and he responded to my questions in a timely manner. I'm grateful for everything he did.”
--From American carrier
“My machine arrived on time, in perfect condition, and without any issues. The machine is well-made and has operated flawlessly without any problems. My cooperation with Jining China Machinery Co., Ltd. has been very pleasant; they are always quick to respond to any questions I have, and communication is always smooth. I would recommend this supplier/manufacturer to anyone considering purchasing this product, as their product and after-sales support are excellent, and I especially recommend contacting their sales staff.”
--Transporter from Ethiopia
Our Company
CAMC Truck is a national key production and research and development base for heavy-duty trucks, special heavy-duty vehicles, and spare parts. We are also a nationally supported enterprise in the vehicle and transport industry. Since our establishment in the 1970s, we have been the only truck enterprise in China that can independently produce all of our products, including engines, gearboxes, axles, chassis, and cabins.
For many years, CAMC has excelled in the commercial vehicle sector, with our products covering tractor trucks, dump trucks, concrete mixers, pump trucks, freight trucks, garbage trucks, crane trucks, bulk cement trucks, tank trucks, semi-trailers, and other special vehicles with different driving modes.
Contact us today to learn more about our products and services and how we can help you meet your heavy-duty vehicle and transport needs.
Our Factory
FAQ
Q: How many engines can your factory produce annually?
A: Hello, we can produce nearly 100000 units annually. Nearly 8500 units per month.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q: Do you have ISO certification?
A: Yes, we have ISO, CCC, BV certifications. Please contact us to obtain the certificate.
Q:How about the delivery time?
A: Most of our trucks have stock and we can deliver to you within 7 days. If specially ordered, normally we need around 30 days for production.
Q: What is the warranty?
A:Two years or 5 thousand hours. We offer all spare parts free of charge during warranty period. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with engine and generator set free of charge.
Q:How to choose the right model?
A:It depends on continuous output power, Voltage, Frequency and fuel type.
Q:How is the after sale service and maintenance ?
A : We offer installation, repair and maintain service abroad. And online quide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Q: How do you control the quality of the product?
A: Our factory has standard production workshops and our workers are well-trained. Every product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q: What's the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container, flat bed container, Ro-Ro ship or bulk
ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, North Africa, Southeast As
