63cm* 25.5cm*15cm
CAMC

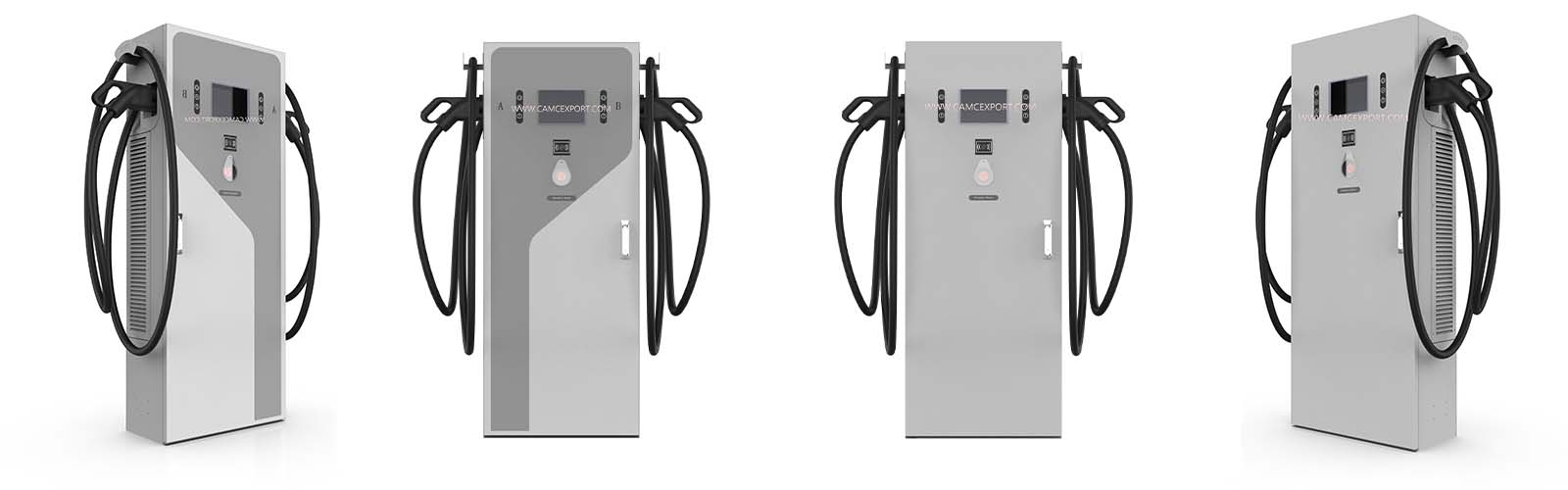

The CAMC CCS1 vertical cabinet charger adopts a minimalist industrial design, paired with a blue breathing status indicator light, which can visually monitor the charging status, balancing aesthetics and practicality. It is an efficient and fast charging device specially designed for mainstream electric commercial vehicles, widely suitable for outdoor scenarios such as parking lots and logistics parks. With its core advantages of safety, efficiency, and easy maintenance, it provides a stable and reliable solution for charging electric commercial vehicles. This product strictly complies with the IEC 61851 international standard and can achieve interoperability and market access compatibility on a global scale. It integrates A-type RCD and 6mA DC leakage detection system, which can quickly cut off abnormal currents within 0.1 seconds. At the same time, it is equipped with eight layers of safety protection mechanisms such as overvoltage, undervoltage, overcurrent, and lightning protection, achieving industry-leading safety performance and comprehensively avoiding charging safety hazards. The charger supports the conversion of 380V AC (± 25% wide input) to 50-1000V DC output, with a maximum power of up to 60kW, which can efficiently meet the fast charging needs of mainstream electric commercial vehicles. With a modular structure design, it is easy and efficient to maintain in the later stage, and the protection level reaches IP54. It can achieve incomplete sealing, dust prevention, and resist water splashing in any direction. It is suitable for long-term operation in multiple outdoor scenarios, ensuring that the equipment still has high safety and stability in complex outdoor environments, and is in line with the global trend of upgrading electric commercial vehicle charging infrastructure.
Power | 20kW/30kW/40kW/60kW |
Model | DC (Single gun ) DC (Double gun) |
| Connector | GBT/CCS1/CHAdeMO/CCS2 |
Max Power | 60kW |
Emergency Stop Button | Yes |
Communication Protocol | 0CPP1.6J Or other |
Input Voltage | 380V (-25%+25%) AC |
Frequency | 50Hz+ 10% |
Output Voltage | 50V ~ 1000VDC |
IP Protection Grade | IP54 |
Power distribution | Average power distribution |
Power factor | 20.99 |
Peak efficiency | 95.5% |
Overall efficiency | 94% |
auxiliary power supply | 12V |
humidness | ≤95% |
Soft startup time | 3-8S |
Output voltage error | ≤+0.5% |
Output curent error | 230A，≤+1%; <30A， ≤+0.3A. |
Voltage accuracy | ≤0.5% |
Steady flow accuracy | ≤1% |
Voltage ripple | ≤1% |
Current sharing | ≤5% |
Load adjustment rate | ≤1% |
Emc | GB/T 19826-2014: 5.4 |
Starting mode | Swipe card/small program scan code |
Insulation resistance | ≥10MΩ |
Withstand voltage | AC2500V |
Display screen | 7 inch touch screen |
Installation mode | Floor |
Operating temperature | -35℃~+55℃ |
Charging gun length | 5m/7m/8m |
Altitude | ≤2000m (Customization required above 2000 m) |
Outer dimension | 630mm* 255mm*1500mm |
Harmonic distortion | ≤5% |
1. Leading in safety and comprehensive protection: compliant with the IEC 61851 international standard, integrated with A-type RCD and 6mA DC leakage detection system, capable of quickly cutting off abnormal currents in 0.1 seconds, equipped with an eight layer safety protection mechanism, with a protection level of IP54, suitable for outdoor scenes, and ensuring comprehensive charging safety.
2. Efficient and fast charging, widely adaptable: supports 380V AC (± 25% wide input) to 50-1000V DC output, with a maximum power of 60kW, which can efficiently meet the fast charging needs of mainstream electric commercial vehicles, with strong compatibility and adaptability to multiple vehicle models.
3. Convenient, practical, and easy to maintain: The minimalist industrial design is paired with a blue breathing indicator light to intuitively monitor the charging status; Modular structure design, convenient maintenance and repair in the later stage, greatly reducing operation and maintenance costs and difficulties.
4. Stable and durable, with a wide range of scene adaptability: The IP54 protection level can resist complex outdoor environments such as dust and splashes, ensuring long-term stable operation of the equipment. It is widely used in outdoor charging scenarios such as parking lots and logistics parks, and is suitable for high-frequency charging needs of electric commercial vehicles.
1. Operations Manager of a logistics park in North America: “Our park has a large number of electric commercial vehicles that require high-frequency charging, and the CAMC CCS1 vertical cabinet charger is fully compatible with the needs. The 60kW fast charging efficiency is very high, which can quickly meet the vehicle's energy replenishment needs. It complies with the IEC 61851 international standard, with adequate safety protection and IP54 protection for stable operation in outdoor environments. The blue breathing light provides a clear view of the charging status, and the modular design makes maintenance easy, greatly improving the charging efficiency of our park.”
2. Procurement Manager of a Parking Lot Management Enterprise in Europe: “We purchased this charger for charging electric commercial vehicles in outdoor parking lots. Its eight layer safety protection mechanism and fast leakage cut-off function give us great peace of mind. The IP54 protection can cope with daily rainy, snowy, and dusty weather, and the wide voltage input is compatible with our local power grid. The 60kW power can meet the fast charging needs while also considering energy saving. The minimalist design also matches the overall style of our parking lot, and the feedback on its use is very good.”
CAMC International is a leading enterprise in China's heavy-duty vehicle industry. As a national key R&D and production base for heavy-duty vehicles, specialized vehicles, and core components, the company has maintained a leading position in the industry since its establishment in the 1970s. As the only truck manufacturer in China with the ability to independently produce the entire industry chain including engines, transmissions, axles, chassis, and cab, CAMC has achieved complete autonomy and controllability from key components to the entire vehicle.
Relying on the research and development capabilities of national level technology centers, the company's products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in infrastructure, mining, logistics, and other fields. With the advantage of a complete industrial chain and continuous technological innovation, CAMC not only occupies an important position in the domestic market, but also exports its products to more than 80 countries and regions around the world. As a high-end equipment manufacturing enterprise supported by national policies, the company is continuously promoting the upgrading and development of China's commercial vehicle industry towards intelligence and green direction.
Q:Which vehicles is this DC charging column suitable for?
A:Widely used for charging cars, engineering vehicles, logistics vehicles, sanitation vehicles and other vehicles
Q:What networking methods are supported?
A:Support 4G、Ethernet networking
Q:What are the protection functions？
A:Short circuit, over current, over temperature, leakage, over voltage, etc.
Q:What are the charging modes？
A:Automatic charging, by time, by battery, by amount
Q:How to start the charging pile？
A:Swipe IC card, WeChat scan code, VIN, password
Q:How long is the warranty？
A:Warranty 1 year. If you need to increase the warranty: 3% in the second year, 4% in the third year, 5% in the fourth year, and 8% in the fifth year.
Q:Are there other types and series of charging piles?
A:We have a full-scene, full-category charging pile product system, such as H series AC charging piles, X series AC charging piles, L series DC charging piles, T series AC charging piles, etc., to meet your diverse needs.
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q:Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
