The CAMC X9 6 × 4 diesel tractor is a high-performance transportation equipment designed for ultra long distance heavy-duty logistics. It is equipped with a large displacement engine of over 8 liters, with a maximum power of 560 horsepower and a peak torque of 2500N · m. Coupled with an intelligent shifting system, it can easily cope with complex road conditions such as mountainous areas and plateaus. Its 600 liter super large fuel tank design supports a single range of over 2000 kilometers, greatly improving long-distance transportation efficiency.

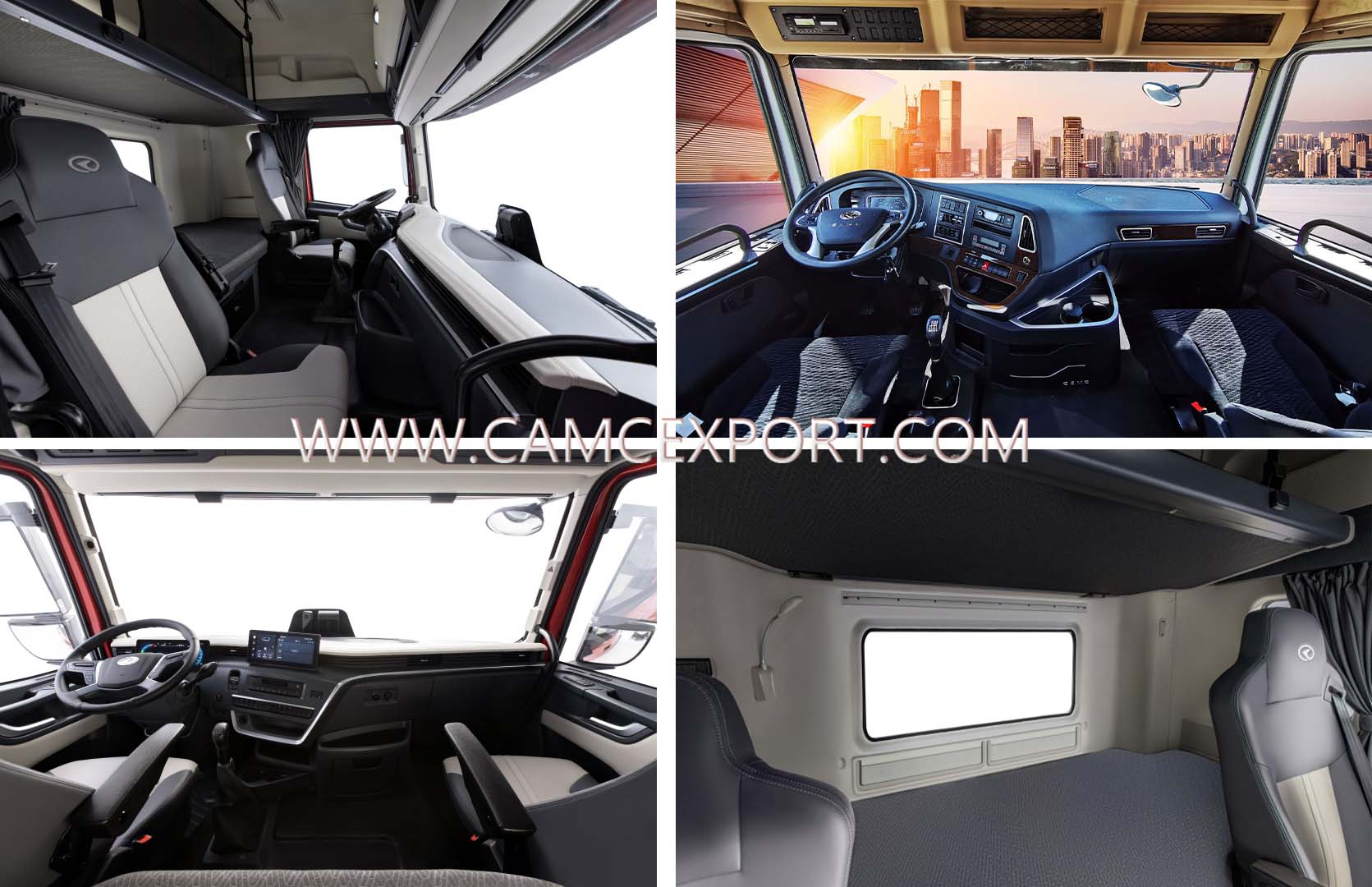

The whole vehicle adopts a high-strength steel frame, with a maximum combined weight (GCW) of 80 tons, and has passed 3 million kilometers of rigorous road tests. The cab is equipped with air suspension seats and intelligent interaction system, and NVH noise reduction technology controls cabin noise within 64dB. Equipped with AEBS automatic emergency braking and electronic stability system as standard, it has become the preferred vehicle for cross-border trunk transportation in the Middle East, Africa, and other regions.
Condition | New |
Steering | Left |
Horsepower | 560hp |
Emission Standard | Euro 6 |
Brand Name | CAMC |
Segement | Heavy truck |
Market Segement | Express transportation |
Engine Brand | CAMC |
Fuel Type | Diesel |
Engine Capacity | > 8L |
Cylinders | 6 |
Gear Box Brand | FAST |
Transmission Type | Automatic |
Forward Shift Number | 12 |
Reverse Shift Number | 2 |
Maximum Torque(Nm) | ≥2500Nm |
Size | 6950x2550x3970 |
Gross Vehicle Weight | 8805kg |
Capacity (Load) | > 50T |
Fuel Tank Capacity | ≥600L |
Drive Wheel | 6x4 |
Passengers | 2 |
Driver's Seat | Air suspension |
Seat Rows | Half a row |
Rear Camera | None |
Cruise Control | ACC |
ABS(Antilock Braking System) | Yes |
ESC(Electronic Stability Control System) | None |
Touch Screen | None |
Multimedia System | Yes |
Window | Automatic |
Air Conditioner | Automatic |
Tire Number | 11 |
After-sales Service Provided | Onsite Installation, Field installation, commissioning and training, Field maintenance and repair service |

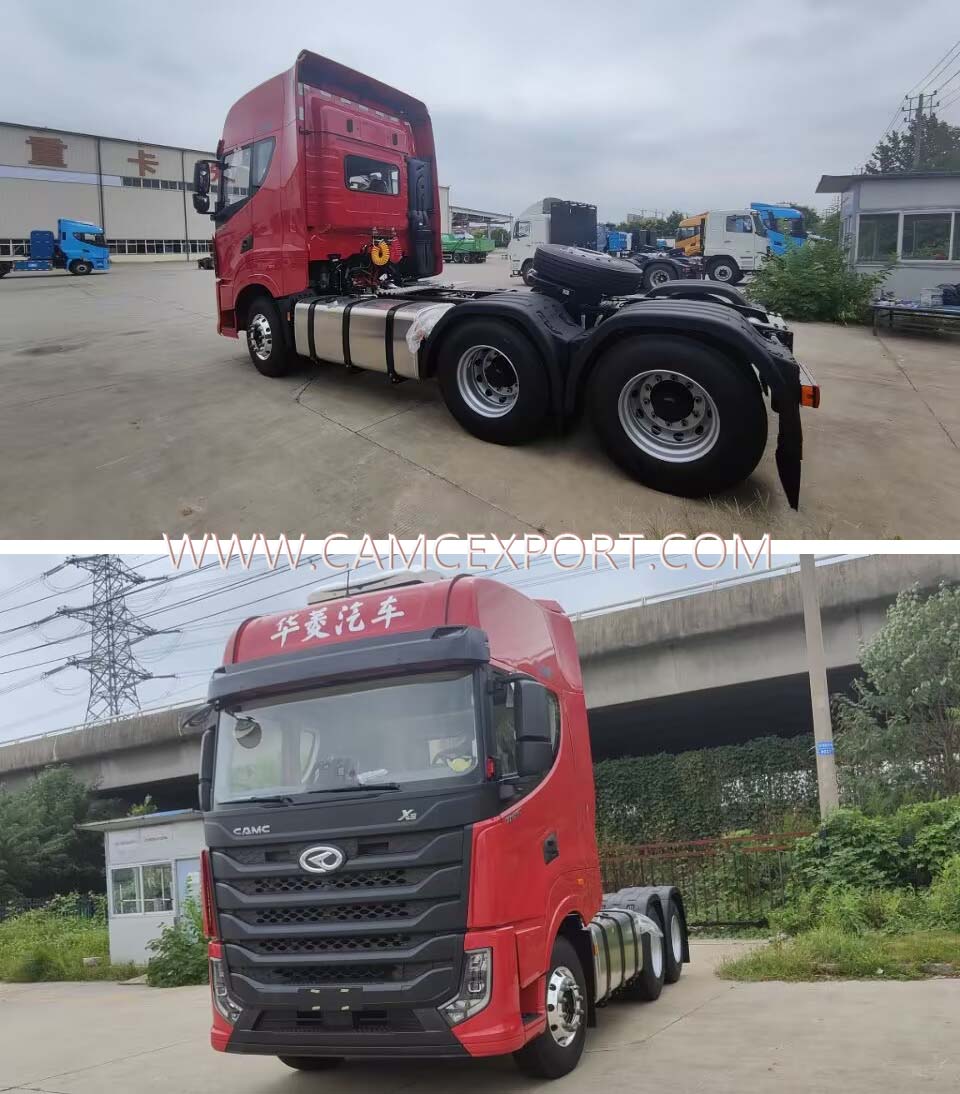

Product name | CAMC X9 6X4 Tractor Truck |
safety system | Front vehicle collision warning |
Engine | HM.13.560.61 |
Wheelbase | 3900+1350 mm |
Type | 12R22.5(18PR) |
Hub | Front aluminum rear steel |
Vehicle network system | T-box+Tachograph |
Drive axle | HL440 (2.846) |
Super powerful performance
Equipped with an 8-liter high displacement engine, 560 horsepower/2500N · m peak torque, coupled with an intelligent shifting system, the ability to climb heavy loads is increased by 30%, and the power attenuation in high-altitude working conditions is ≤ 5%.
Long endurance capability
The 600 liter super large fuel tank design provides a single range of over 2000 kilometers, reducing the frequency of refueling midway and improving long-distance transportation efficiency by 25%.
Military grade carrying capacity
High strength steel frame with optimized axle load distribution, maximum combined weight (GCW) of 80 tons, certified through rigorous road tests of 3 million kilometers.
Intelligent, safe, and comfortable
Standard AEBS+electronic stability system, cabin NVH mute technology (≤ 64dB) combined with air suspension seats, daily operating comfort increased by 40%.
Evaluation by the Operations Director of a Middle Eastern Logistics Company
“Our X9 fleet has set a continuous record of 200000 kilometers without major repairs on the Dubai Riyadh cross-border transportation line, with 560 horsepower engines maintaining full load output even at high temperatures of 50 ℃. A 600 liter fuel tank reduces the need for refueling by 2 times per trip, but it is recommended to enhance the automatic warning function of the air filter for dusty environments.”
Feedback from African mining transporters
“In the Congo copper mine project, the X9's 2500N · m torque perfectly handles muddy mountain roads, and its 80 ton GCW capacity far exceeds similar models. However, it is recommended to optimize the oxygen sensing compensation program for turbocharging in high-altitude mining areas.”
CAMC International is a benchmark enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
Q:How about the warranty?
A: 1 year or 100000km, whichever comes first.
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How many units of truck does your factory produce per year?
A:Almost 100000 units Nearly 8500 units per month.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service. Yes, we do, our MOQ is 1 unit.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container flatbed container, Ro-Ro ship or bulkship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
