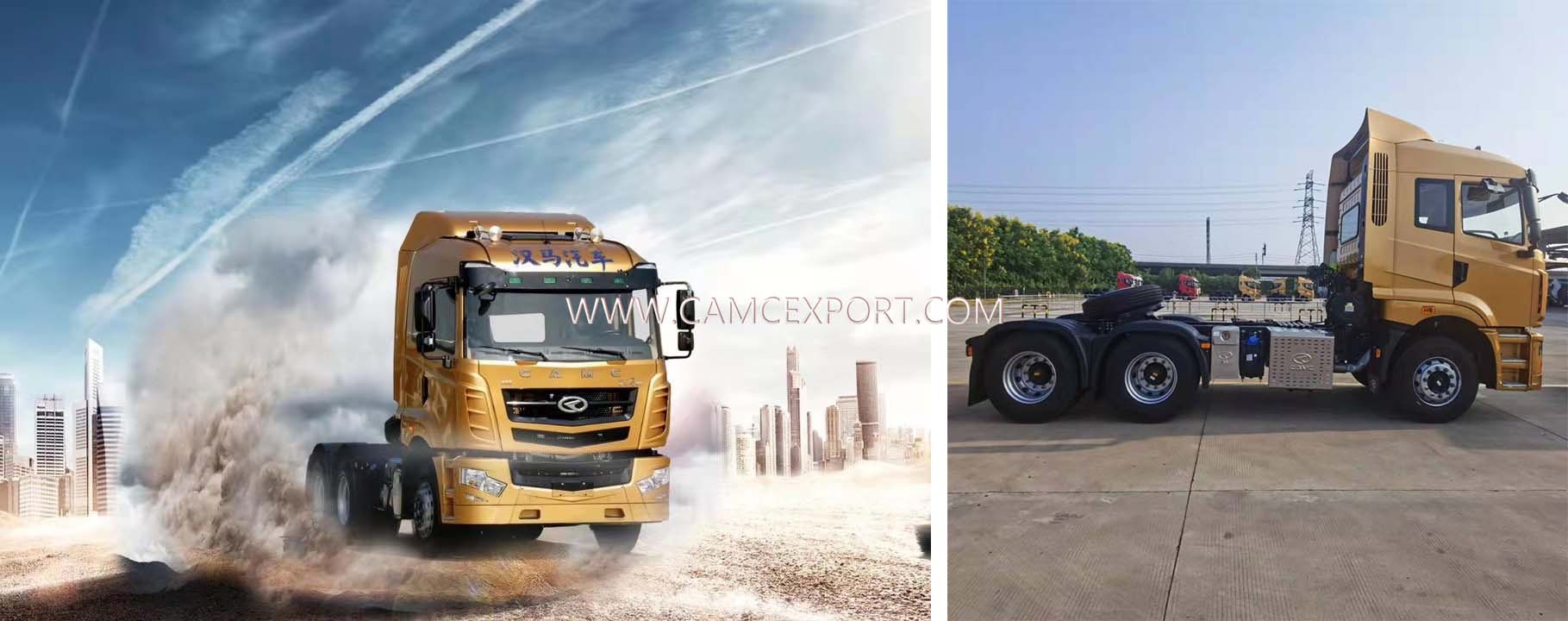

The CAMC H7 heavy-duty tractor is a high-performance vehicle specially designed for efficient heavy-duty transportation, accurately adapting to harsh working conditions such as mines and construction sites. Relying on CAMC's mature commercial vehicle manufacturing technology, it balances strong performance and environmental requirements. With its stable and reliable core configuration, it has become the preferred equipment for heavy-duty transportation under harsh working conditions. The car is equipped with a high-performance engine with a rated power of 336kw, a rated horsepower of 430 horsepower, a rated speed of 2100rpm, and a displacement of 11.82L. The power output is strong and stable, making it easy to cope with heavy-duty transportation and complex road conditions; Compliant with Euro 2 to Euro 6 emission standards, accurately balancing performance and environmental requirements, adapting to environmental policies in different regions, and balancing efficient transportation with green compliance. The car body is available in red, white, blue, yellow, and customized colors, which can meet the visual image and operational needs of different enterprises. At the same time, it is equipped with an aluminum alloy fuel tank, which effectively improves fuel economy while reducing the weight of the car body. With the widespread application of aluminum alloy materials, it further optimizes the durability and corrosion resistance of the entire vehicle, and extends its service life; Adopting a 6x4 drive layout and reinforced chassis design, the structure is sturdy and solid, which can effectively cope with complex road conditions such as bumps and mud in mines and construction sites, ensuring driving stability and excellent load-bearing capacity under heavy load conditions, helping enterprises improve transportation efficiency and reduce operating costs.
| NAME | Tractor Truck |
| BRAND/SERIES | CAMC / H7 |
| CABIN | |
| CAMC H7 high roof, A/C, radio, airbag shock absorber, air bag seat, with deflector and spoiler ,blue teeth, mp3, and luxury interior. | |
| ENGINE | |
| Supplier | CAMC |
| Model | CM6D28 430 50 |
| Fuel type | Diesel |
| Rated power/horsepower（kw/hp） | 336/430 |
| Rated speed(rpm) | 1900 |
| Displacement (L) | 11.81 |
| Emission Standard | Euro 5 |
| Cylinders | 6 |
| Controller type | Mechanical |
| In-cylinder brake | Yes |
| TRANSMISSION | |
| Supplier | FAST |
| Model | 12JSDX220T-B |
| Speed ratio | 12 |
| CHASSIS | |
| Drive type | 6x4 |
| Overall dimension (mm) | 7050x2550x3500 |
| Wheel base(mm) | 3400+1350 |
| Kerb Weight (kg) | 8050 |
| Rated GVW/ GVW (kg) | 25000/40000 |
| FRAME | |
| Size (H*W*T) | Height:310mm，Width:90mm，Thickness:8mm+5mm (Double) |
| Front axle | ISUZU technology steering axle with double T-cross section, Rated capacity:7T |
| Mercedes-Benz technology 16T casting axle , with double reduction and differential locks | |
| Rear axle | between axles， Rated capacity:16T |
| Ratio：4.769 optional：3.867, 4.267, 4.769, 5.921 | |
| Spring | 46277 |
| Tyre | 12R20 vaccum tire |
| Saddle | 50# |
| OTHERS | |
| Warranty | 100000km |
1. Strong power and efficient adaptation: Equipped with a high-performance engine with a rated power of 336kw, a rated horsepower of 430 horsepower, a speed of 2100rpm, and a displacement of 11.82L, the power output is strong and stable, perfectly adapting to the efficient heavy transportation needs of harsh working conditions such as mines and construction sites.
2. Environmental compliance and wide adaptability: compliant with Euro 2 to Euro 6 emission standards, accurately balancing performance and environmental requirements, adaptable to environmental policies in different regions, and can be put into operation without additional rectification, balancing efficiency and green.
3. Flexible customization, economical and durable: The body is available in multiple colors and supports customization, meeting the visual needs of the enterprise; Aluminum alloy fuel tanks reduce weight and improve fuel economy, while aluminum alloy materials enhance durability and corrosion resistance, reducing long-term operating costs.
4. Stable and reliable, suitable for harsh working conditions: With a 6x4 drive layout and reinforced chassis, the structure is solid and can handle complex road conditions in mines and construction sites with ease, ensuring stability and load-bearing capacity under heavy loads, low failure rate, and suitable for high-intensity operations.
1. The person in charge of the operation of a mine in the Middle East: “Our mine has poor road conditions, and we have extremely high requirements for the power and stability of the tractor. The CAMC H7 heavy-duty tractor fully meets expectations. 336kw power, 430 horsepower powerful, 11.82L displacement suitable for heavy-duty climbing, 6x4 drive and reinforced chassis for stable driving in muddy mining areas, aluminum alloy fuel tank not only lightweight but also fuel-efficient, in line with European environmental requirements, multi color options also fit our fleet management, long-term high-intensity operation durability outstanding, has been purchased in bulk as the main model.”
2. Procurement Manager of a Southeast Asian infrastructure project: “The transportation conditions on construction sites are complex, and the performance of this H7 tractor is very reliable. It has sufficient 430 horsepower power, stable operation at 2100rpm, reinforced chassis, and 6x4 drive to cope with bumpy roads without any pressure. Aluminum alloy materials have strong corrosion resistance and are suitable for humid environments on construction sites. Aluminum alloy fuel tanks improve fuel economy and meet local European environmental requirements. They also support customized body colors, perfectly meeting our project needs, and have low operation and maintenance costs.”
CAMC International Trading Co., Ltd.is a branch company of CAMC, mainly in charge of overseas marketing. CAMC is the national priority production and research development base of heavy trucks, special purpose heavy vehicles and spare parts, which is also the state mainly supports enterprise.Located in Maanshan Economic and Technology Development Zone, Anhui, China, CAMC was found in 1970s and we are the only truck enterprise in China which is capable of producing everything on our own including engine, gearbox, axles, chassis, cabin and so on.Our company is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
For years, CAMC has been doing good and professional work in commercial vehicles. Our product covers a huge scope in this field, like tractor truck, dump truck, concrete mixers, pump truck, cargo truck, garbage truck, crane truck, bulk cement truck, tank-carrying truck, semitrailers and other special vehicles along with different driving form such as 4X2, 6X2, 6X4, 8X4, 10X4. The emission standard covers a range from EURO 2 to EURO 6.Besides,we are convinced that high-quality, systematic, comprehensive and efficient service are the foundation of our career development. With the goal of creating a domestic first-class service enterprise with strict management and advanced technology, we have formulated a "standardized management system, strict process control, guaranteed product management, and quality policy of customer satisfaction, adhered to the far side of customer first, and built good sales and series system, providing customers with high-quality pre-sale, in-sale and after-sale services"
Q:How about the warranty?
A:1 year or 100000km, whichever comes first
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How many units of truck does your factory produce per year?
A:Almost 100000 units Nearly 8500 units per month.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service. Yes, we do, our MOQ is 1 unit.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container flatbed container, Ro-Ro ship or bulkship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
