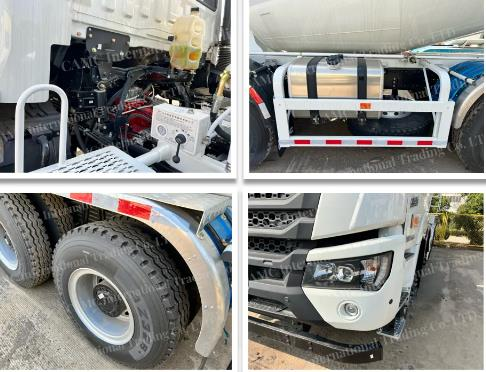

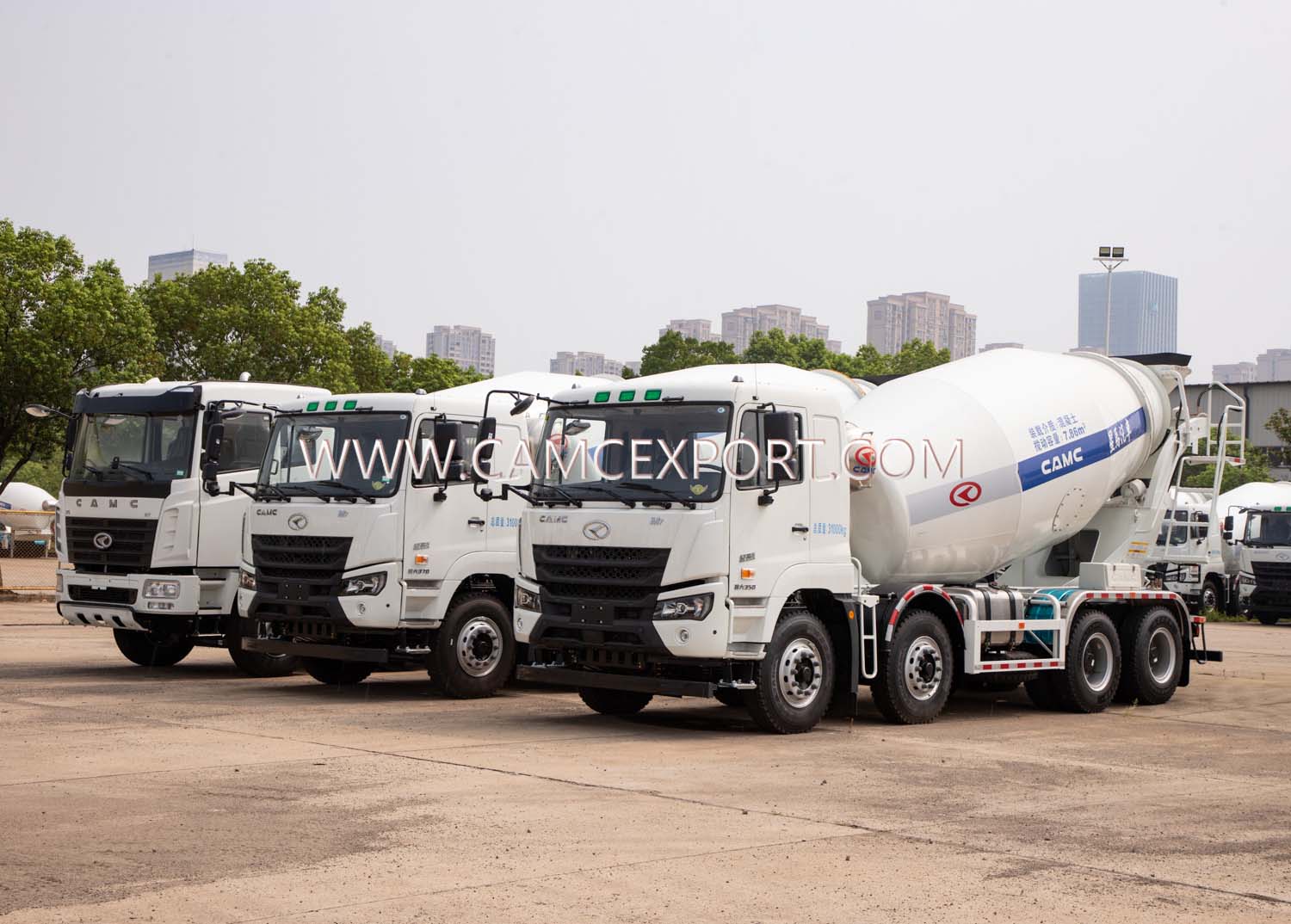

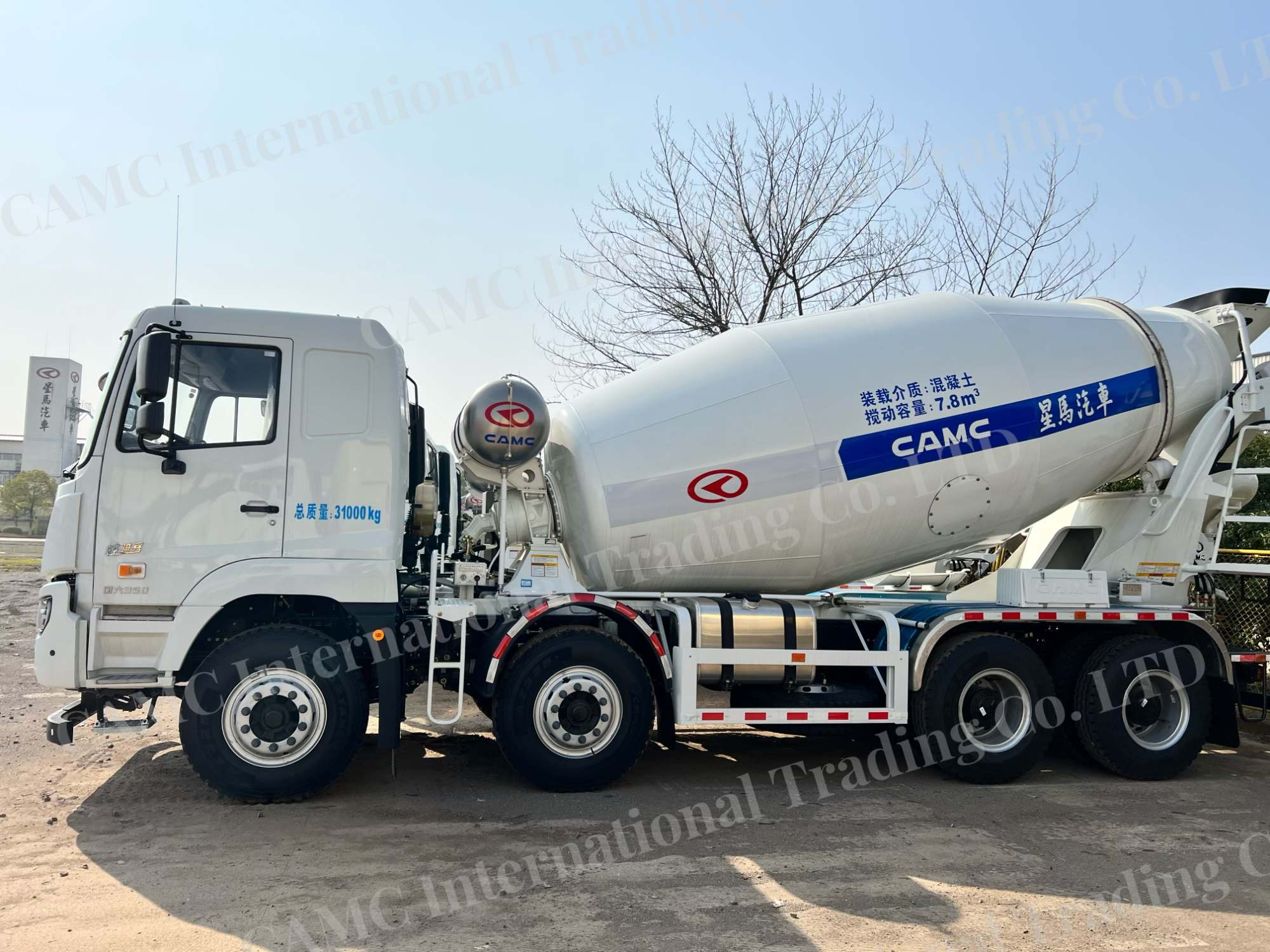

Introduction To Mixer Truck
The CAMC concrete mixer truck series adopts a modular design concept, and uses advanced software such as PROVE 3D and ANSYS to digitally design, finite element analyze, and simulate key components of the mixing system, vehicle structure, and key parts, ensuring that the product achieves efficient and low residue mixing performance within the full capacity range of 6-18m ³. Its unique spiral blades and
tank design achieve a concrete uniformity of over 95%, with a residual rate of less than 0.5%, while reducing fuel consumption by 15% through lightweight frame and power matching technology.
This series of products has been validated in the market for more than 10 years and is known for its long service life (the wear-resistant steel plate of the tank body has a service life of over 80000 times), high reliability (the key component B10 has a service life of up to 500000 kilometers), and environmental friendliness (meeting the requirements of National VI/Euro VI emissions). Its exports cover more than 30 countries in North Africa, Southeast Asia, and South America. The testing method strictly follows ISO/GB standards, including 500 hour bench durability testing and extreme condition road testing, to ensure stable performance under different global climate conditions and continue to lead the industry's technological development direction.
Technical Parameters
| Applicable Industries | Construction works , Energy & Mining |
| Showroom Location | None |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing Type | Hot Product 2023 |
| Warranty of core components | 1 Year |
| Core Components | Engine, Gearbox, Pump |
| Condition | New |
| Place of Origin | Anhui |
| Brand Name | CAMC |
| Weight | 13260 kg |
| Dimension(L*W*H) | 9850x2525x3960 |
| Power | 235kw/320hp |
| Warranty | 1 Year |
| UNIQUE SELLING POINT | High operating efficiency |
| Engine Capacity | 7.8L |
| Engine | Weichai |
| Engine Type | HM07.350 60(WP8.350E62) |
| Driving type | Diesel |
| Gearbox | 10JSD160T |
| Rear axle | HL439(4.875) |
| tyre | 11R22.5 |
| Number of tires | 12 |
| Oil tank | 300L Aluminum alloy |
| wheel base | 1850+3000+1350 (mm) |
| Front axle | 5.5T |
Product Advantages
Efficient mixing and low residue design
By optimizing the angle of spiral blades and the curve of the tank body, the uniformity of concrete is achieved to be ≥ 95%, and the residual discharge rate is less than 0.5%, far exceeding industry standards.
Intelligent lightweight structure
Through simulation analysis using PROVE 3D and ANSYS software, the frame has reduced weight by 15% while increasing strength by 20%, resulting in a 10-15% decrease in fuel consumption.
Long service life
The key components are made of wear-resistant alloy steel (with a tank life of over 80000 times) and designed with a B10 life of 500000 kilometers, suitable for high-intensity continuous operation.
Global adaptability
Through ISO/GB dual standard certification, the product has undergone environmental verification from -30 ℃ to 50 ℃ and has been exported to more than 30 countries with a localized service system.
Operation Guide
This guideline establishes core standards for the safe use of CAMC series concrete mixer trucks. Three key checks must be completed before starting:
The tire pressure (8.5 bar for the drive wheel/7.0 bar for the guide wheel), hydraulic oil level (MIN-MAX range for the dipstick), and cleanliness of the mixing drum ensure that there is no concrete residue affecting the balance of operation.
During the driving phase, it is necessary to strictly comply with the loading limit (6m ³ vehicle ≤ 9 tons), maintain a rotation speed of 3-8r/min for the mixing drum, turn with a radius of ≥ 12 meters and a speed ≤ 20km/h, and use engine assisted braking on long downhill slopes. The unloading operation should be carried out on a ground with a load-bearing capacity of ≥ 8MPa. The mixing drum should be turned around for 2-3 minutes before unloading at an angle of ≤ 15 ° to prevent concrete segregation.
Daily maintenance requires four levels of maintenance: 50 hours of lubrication of the mixing drum raceway, weekly inspection of hydraulic seals, 300 hours of replacement of gearbox gear oil, quarterly inspection of blade wear (threshold 30%), all operations comply with JG/T5094-2018 industry standards, and extreme working conditions should shorten the maintenance cycle by 30%.
Excellent Customer Reviews
Evaluation of Operations Director of Southeast Asian Construction Company
"We used 12 CAMC 10m ³ mixer trucks in the cross sea bridge project in Malaysia, and after 18 months of high-intensity operation, the wear-resistant lining plate of the mixing drum remained in good condition. The fuel consumption is 12% lower than Japanese competitors, especially the hydraulic system stability in tropical climates is satisfactory. Suggest strengthening the timeliness of local accessory supply."
Feedback from Middle Eastern concrete suppliers
"The 8 CAMC mixer trucks in the Dubai Free Trade Zone project have withstood the high temperature test of 50 ℃, and the intelligent temperature control system keeps the concrete discharge temperature below 32 ℃. But the frequency of air filter replacement in desert environments needs to be increased to 1.5 times that of conventional methods. The overall reliability far exceeded our expectations."

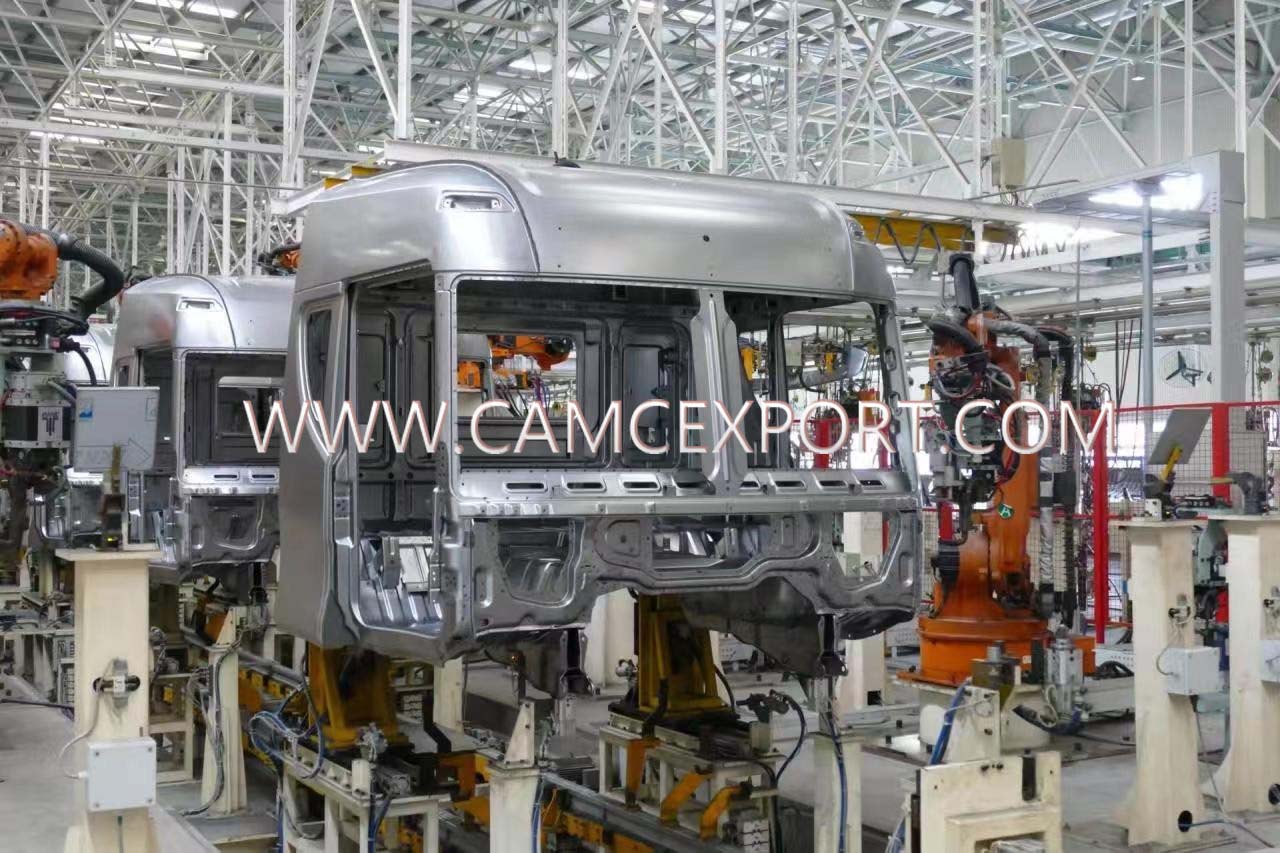

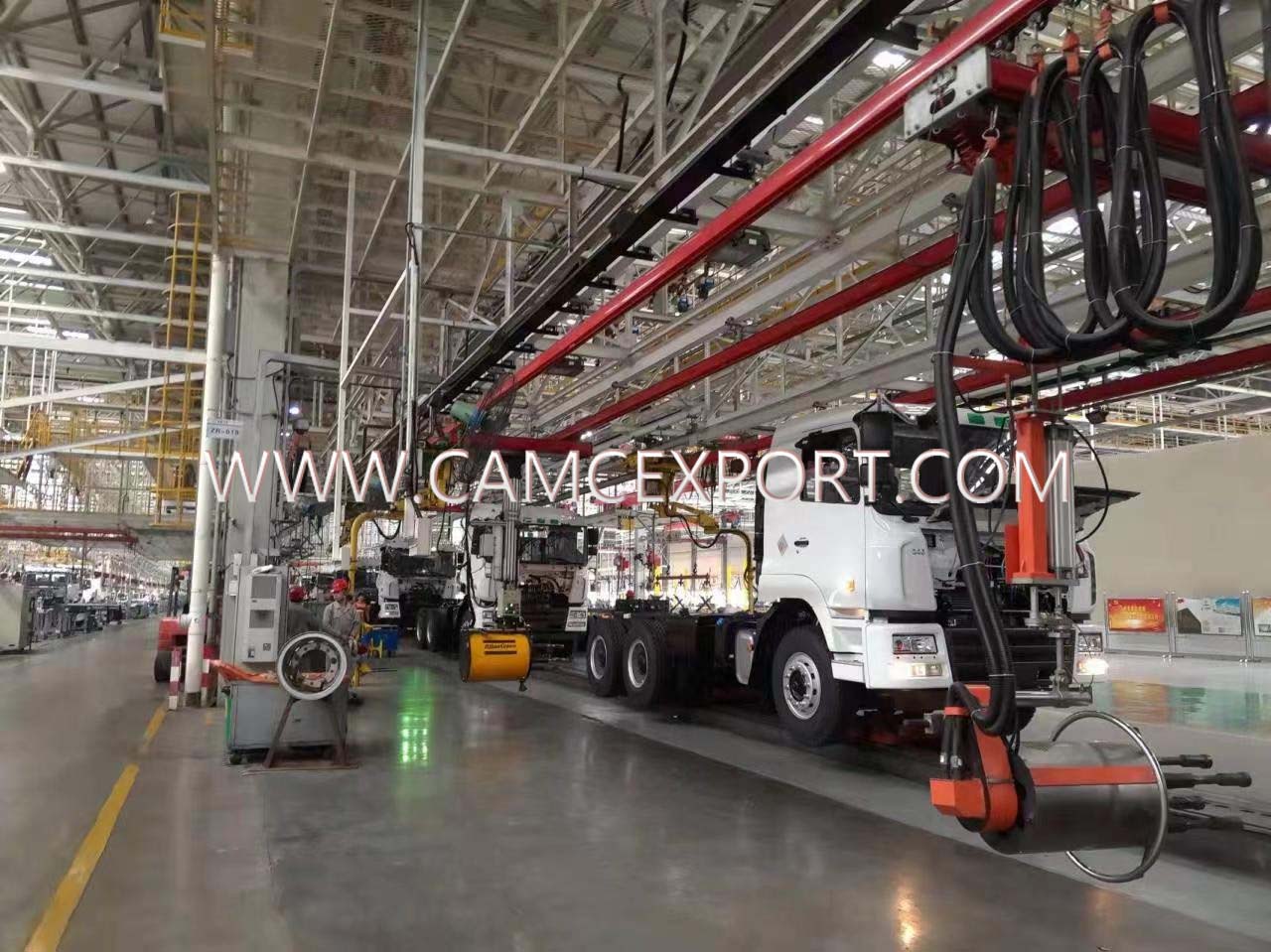

Production Process
Our Company

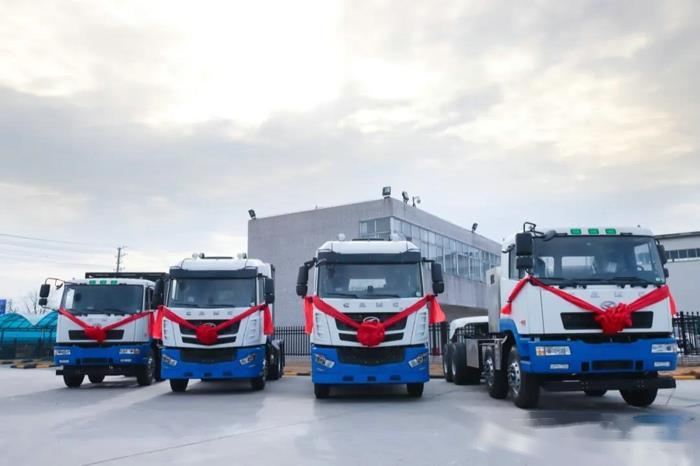

CAMC International is a benchmark enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
FAQ
Q: How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certificates,our workers are well trained. Every unit of product undergoes a rigorous inspection process.
Q:What are the advantages of the new product？
A:A variety of system configuration: weight, cost, fuel saving rate to achieve optimal. To realize the engine directly mounted generator, high efficiency.
Q: What are the smart features of this new product？
A:Blind area monitoring, driving behavior detection, Internet of vehicles cloud services , one button to open the environmental protection dust suppression system, material real-time monitoring, remote intelligent addition, positive and negative cylinder detection, mileage, fuel consumption, positioning monitoring.
Q:What's new about the new product?
A:Quality compliance, to solve the problem of licensing. Dimensions compliance, announcement photo compliance.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service,some countries use the third party service.
Q:Why choose you?
A:Our brand has decades of reputation, our factory has the country's top technology, our workers are serious and responsible, to ensure the high quality of every product and we provide you with quality after-sales service.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do, our MOQ is 1 unit.
Q: What's the payment terms?
A:By T/T or L/C at sight.
