Product Overview

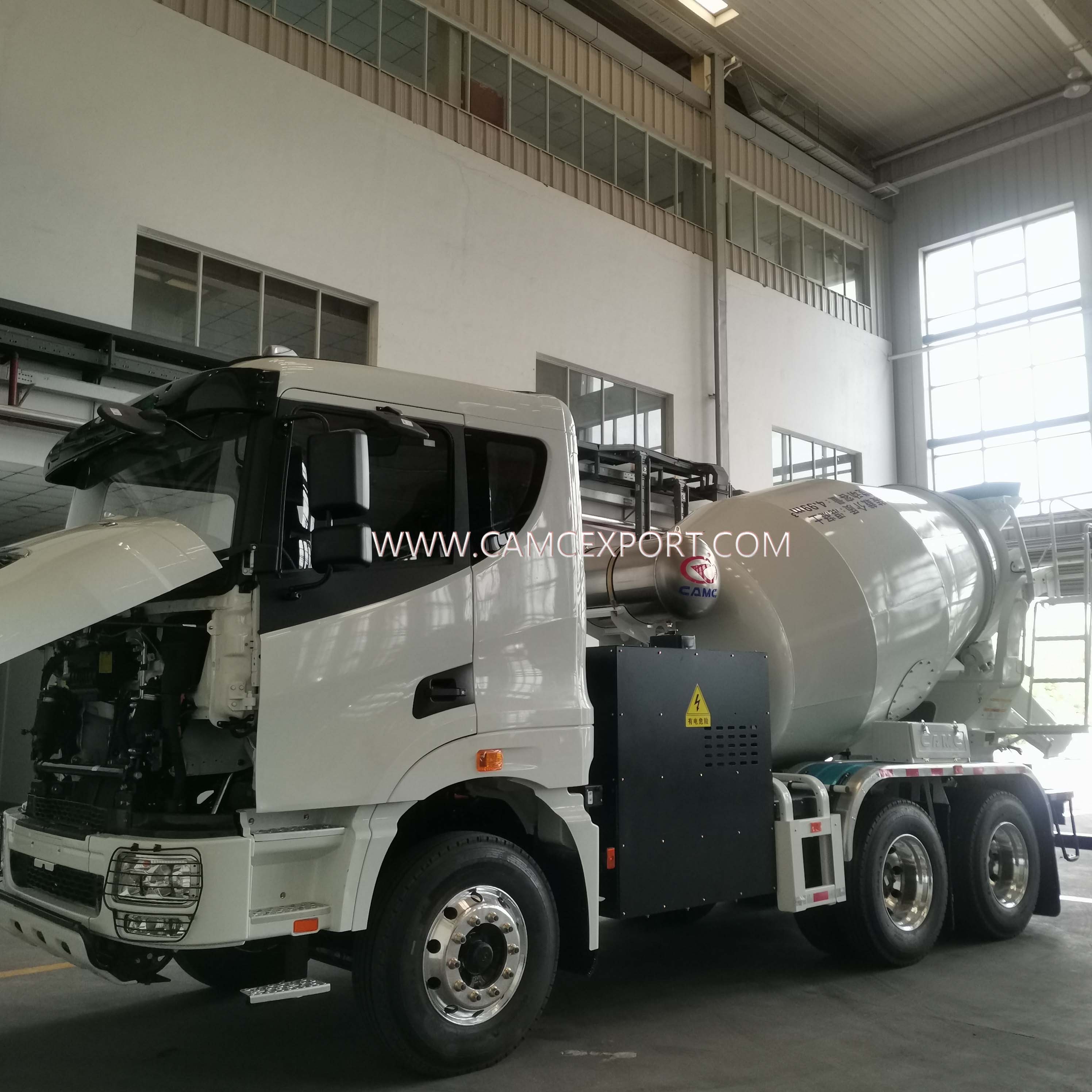

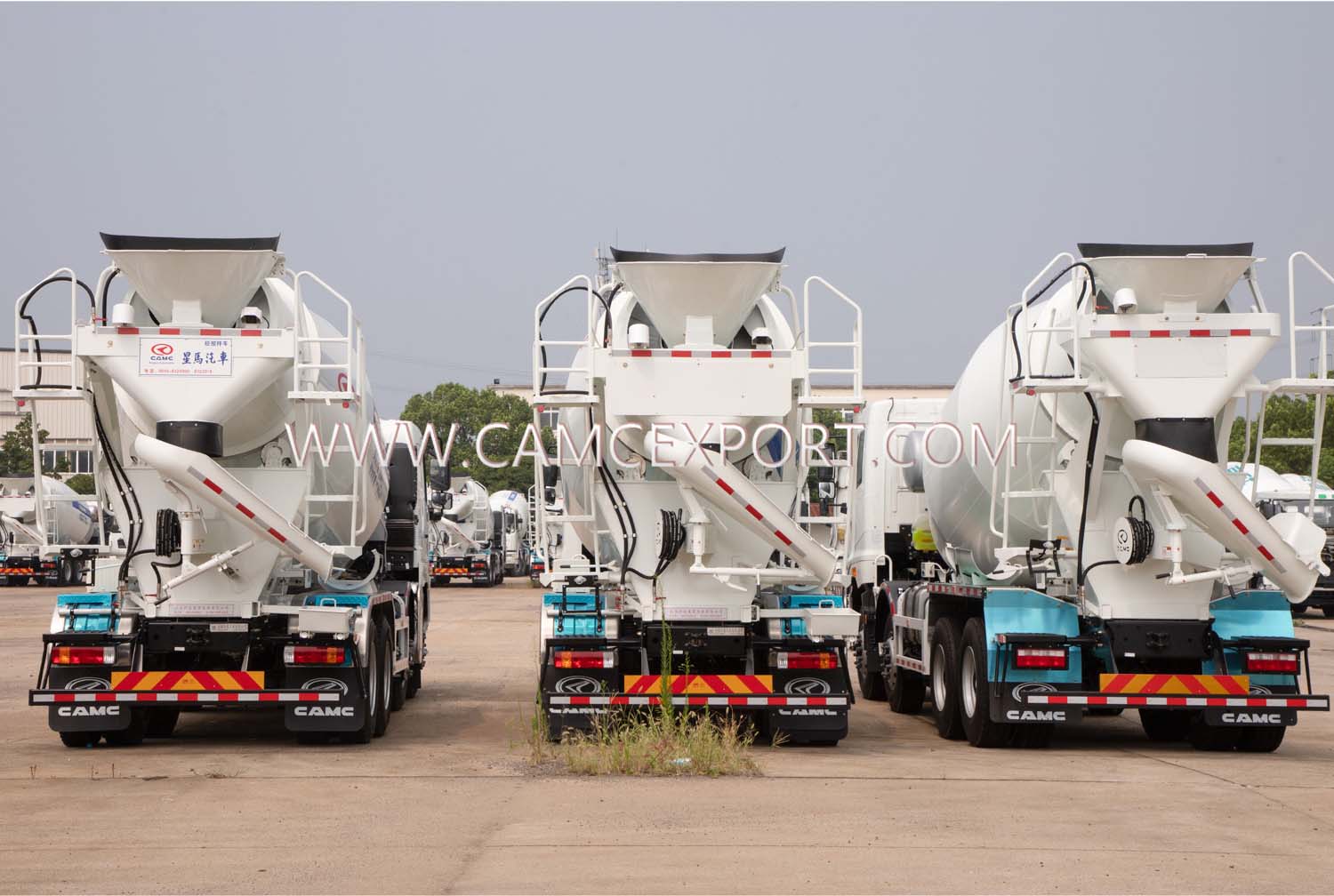

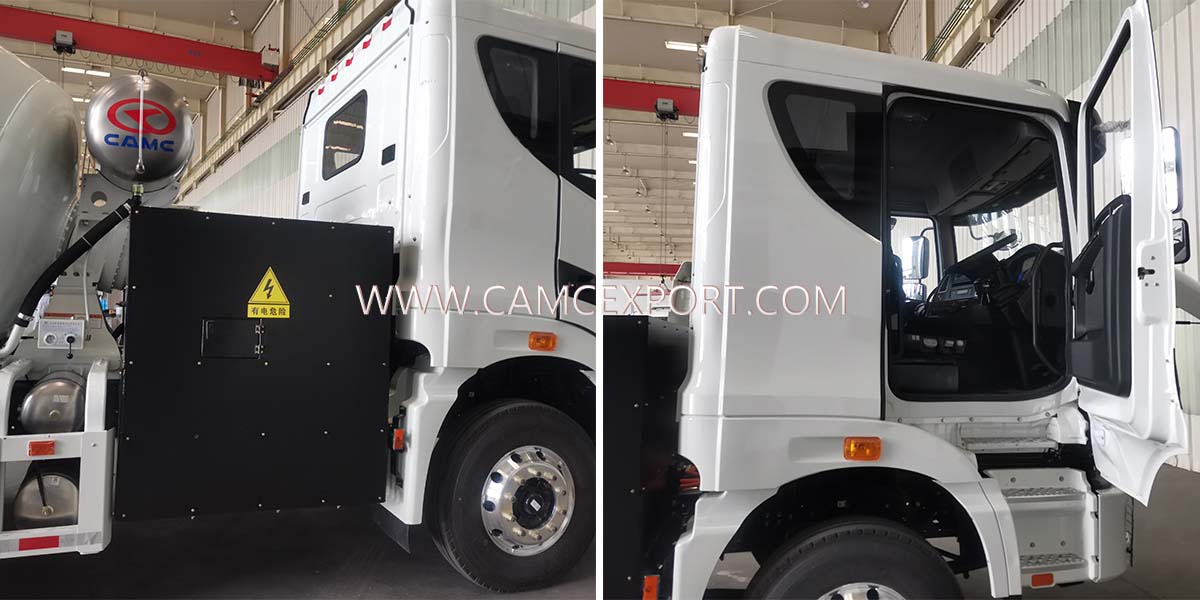

The CAMC 6 × 4 8 cubic meter electric concrete mixer truck is an efficient construction tool designed to cope with new urban infrastructure and environmental regulations. This model is equipped with a high-power permanent magnet synchronous motor, matched with a high-energy density power battery pack, which can output strong power and achieve zero emissions, perfectly adapting to the strict environmental requirements of urban waste and commercial concrete transportation. The whole vehicle adopts a 6 × 4 drive form, with excellent load-bearing capacity. Combined with a chassis system specially tuned for mixing conditions, it not only ensures the climbing ability under full load, but also has extremely high passability and driving stability in complex construction site road conditions.
This 8-cubic mixer truck has been professionally designed for the special working conditions of concrete transportation. The upper tank body is made of high-strength wear-resistant steel, and the blade spiral process is optimized by computer design to ensure uniform mixing during transportation, without layering or bleeding, with fast discharge speed and extremely low residual rate. Users can monitor the speed and load of the tank in real time through the electronic control system, achieving precise control of the entire process of loading, transportation, and unloading, while saving energy consumption and maximizing the quality of concrete.
In terms of intelligent management and security, CAMC deeply integrates electrification and intelligent technology. The vehicle is equipped with intelligent connected terminals that can monitor the battery status, motor operating conditions, and vehicle location in real time, providing data support for fleet management. The cab adopts the classic design of Valin heavy-duty trucks, with a wide field of view and lightweight handling; The braking system combines motor braking and pneumatic braking, responding quickly and providing multiple safety guarantees for heavy loads on long slopes. Whether facing the dense short distance distribution of urban commercial concrete stations or the continuous operation of suburban infrastructure construction sites, this 6 × 4 8 cubic meter electric mixer truck can help enterprises achieve low-carbon operation and maximize benefits with efficient, reliable, and green performance.
Technical Parameters
| Drive Mode | 6x4 |
| Brand | CAMC |
| Fuel Type | Electric |
| Emission Standard | Zero |
| Max. Speed (km/h) | 85 |
| Condition | New |
| Battery type | Lithium iron phosphate |
| Rated power/horsepower（kw/hp） | 245/345 |
| Video outgoing-inspection | Provided |
| Charging time | 1h |
| Dimension(L*W*H) | 9000*2500*3920mm |
| Place of Origin | China |
| PRODUCT NAME | Pure Electric Comfortable Heavy Duty Concrete Mixer Truck |
| COLOR | Red、White、Blue、Yellow and Others |
| TYPE | 6*4 |
Feature：
Incorporating modular design concepts, using advanced design methods such as PRO/E three-dimensional software
The product has formed significant advantages of high efficiency, low residual rate, uniform mixing, longer service life, fuelsaving and environmental protection.
Our Advantage
Zero carbon power, economically efficient
Adopting high-power permanent magnet synchronous motor drive, achieving zero emissions during the operation process and easily meeting the entry standards for green construction sites. The peak torque of the motor is high, making it more powerful for starting and climbing, and the energy conversion efficiency is much higher than that of traditional fuel vehicles. Through the braking energy recovery system, power consumption can be significantly reduced under frequent start stop conditions in urban areas, and the overall operating cost is significantly reduced compared to fuel vehicles.
Gold bearing, stable and reliable
In response to the significant characteristics of the concrete mixer truck, a reinforced 6 × 4 double rear axle chassis is matched, and the frame is made of high-strength steel, with excellent load-bearing capacity and torsional performance. The chassis and upper electrical system are deeply integrated, avoiding the hidden dangers of traditional modifications. The whole vehicle has undergone rigorous reliability testing, and even after long-term heavy load driving on unpaved roads, it still maintains structural stability and has a high attendance rate.
Intelligent installation, quality assurance
The mixing tank and blades are made of high-performance wear-resistant steel, combined with optimized spiral design, to ensure uniform mixing of concrete during long-distance transportation and prevent segregation. Equipped with an intelligent electronic control system, the driver can monitor the steering and speed of the tank in real time inside the cab, accurately control the feeding and discharging speed, not only convenient to operate, but also effectively reduce residual rate, waste and cleaning costs.
Smart management, safe and comfortable
Integrated intelligent connected terminals support remote vehicle monitoring, battery status warning, and fleet scheduling management, greatly improving operational management efficiency. In terms of safety, it adopts dual protection of motor assisted braking and pneumatic braking, which can reduce brake pad wear and prevent thermal degradation when going downhill. The cab continues the ergonomic design of Valin Heavy Duty Truck, with a wide field of view and comfortable space, effectively relieving driving fatigue.
Customer Reviews
“After introducing the CAMC 6 × 4 electric mixer truck, our fleet's operating costs have significantly decreased. The local oil price fluctuates greatly, but the electricity cost is relatively stable. A full charge of electricity is enough to cope with a whole day of short distance delivery to the construction site. The most satisfactory thing is its discharge stability, even though the road conditions here are not very good, there is no segregation phenomenon of concrete after it is transported to the construction site. The tank handling is simple, and drivers can quickly get started, which is a real productivity for us. ”
-Construction contractors from Southeast Asia
“Our summer temperatures are high here, and we have strict requirements for vehicle reliability and driving comfort. The CAMC car has a good cabin seal, strong air conditioning effect, and the driver will not be too tired when working in high temperatures. In terms of power, it is easy to enter and exit the construction site under full load, and the 6 × 4 chassis grip is reassuring. And it is an electrified device that meets the increasingly strict environmental requirements of our city, enhancing the company's green image
-Responsible person for mixed use stations in the Middle East region
CAMC Truck: A Leading Heavy-Duty Vehicle and Transport Company
CAMC is the national priority production and research development base of heavy truck, special purpose heavy vehicle and spare parts, which is also the state mainly supports enterprise.
CAMC was found in 1970s and we are the only one truck enterprise in China which is capable of produing everything by our own including engine, gearbox, axles, chassis, cabin and so on.
FAQ
Q:How about the warranty?
A:24 months unlimited mileages or 200000 km which occur first.
Q:Do you have ISO certificate?
A:Yes, we have, please contact us to get our certificates.
Q:How about the lead time?
A:35 working days
Q:How many units of truck does your factory produce per year?
A:Almost 100000 units Nearly 8500 units per month.
Q:How do you control the quality of product?
A:Our Factory has standard production workshop,gets ISO CCC BV certifi-cates, our workers are well trained. Every unit of product undergoes a rigor-ous inspection process
Q:How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some coun-tries use the third party service. Yes, we do, our MOQ is 1 unit.
Q:What's the payment terms?
A:By T/T or L/Cat sight,
Q:How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container flatbed container, Ro-Ro ship or bulkship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, Noth Africa, Southeast Asia and South America.
