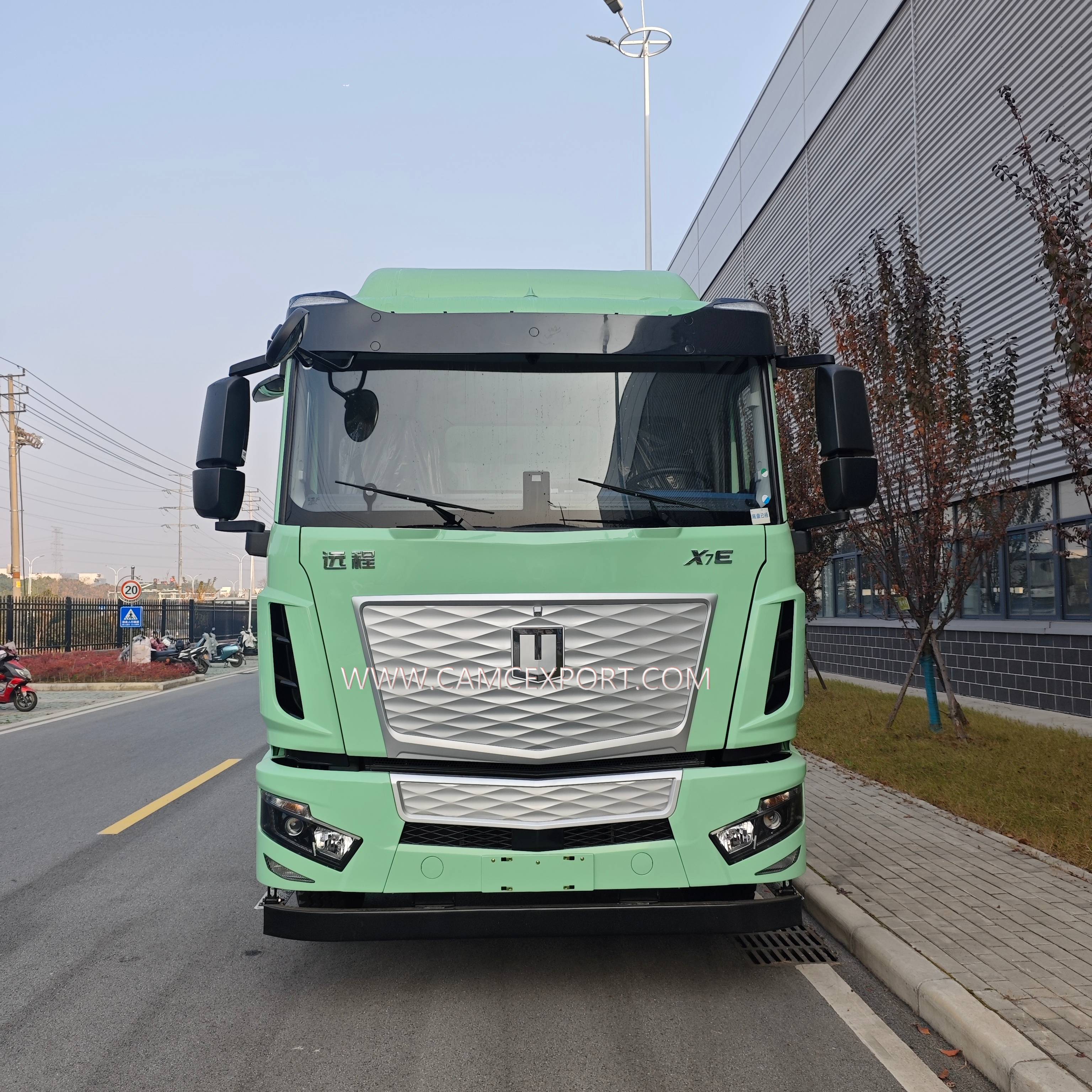

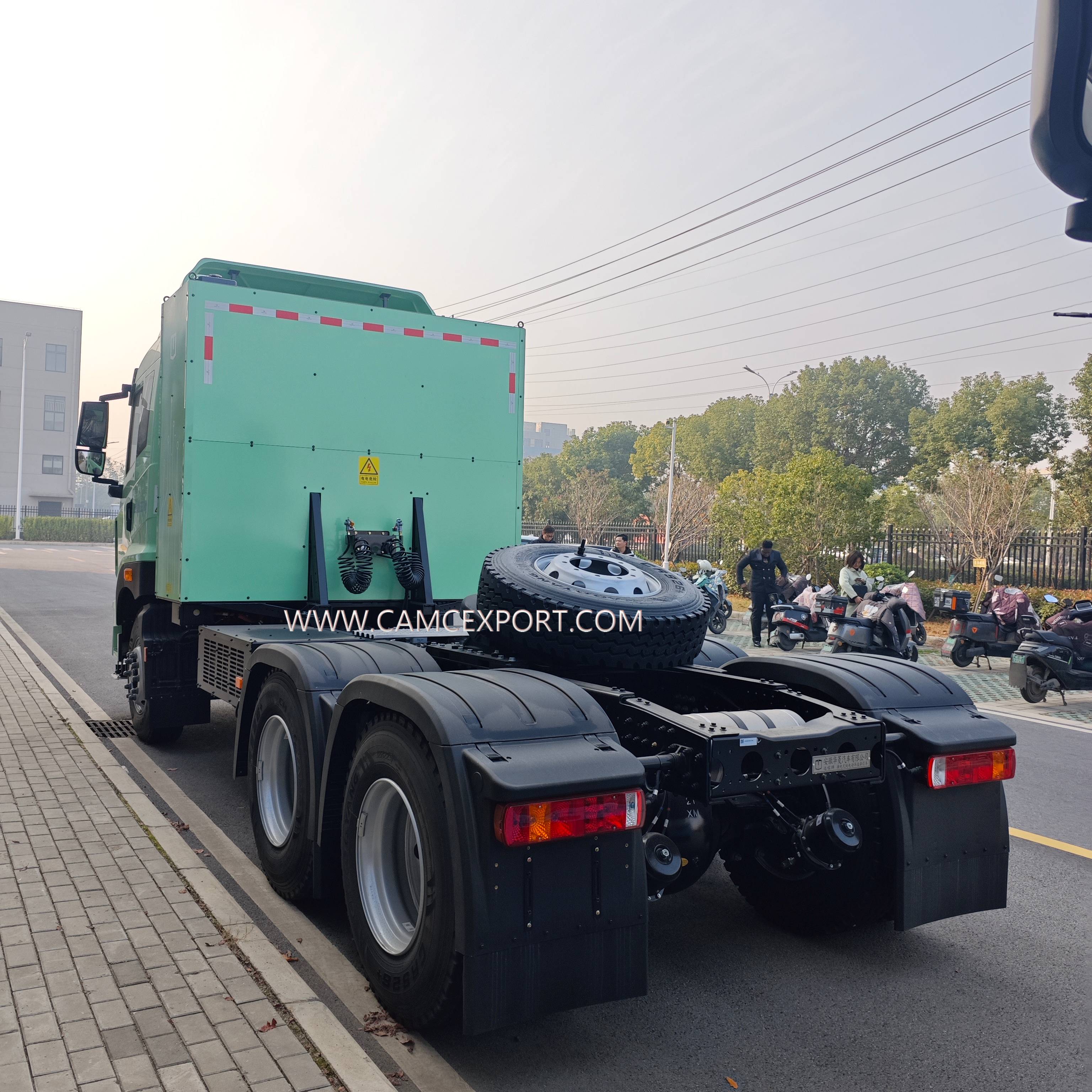

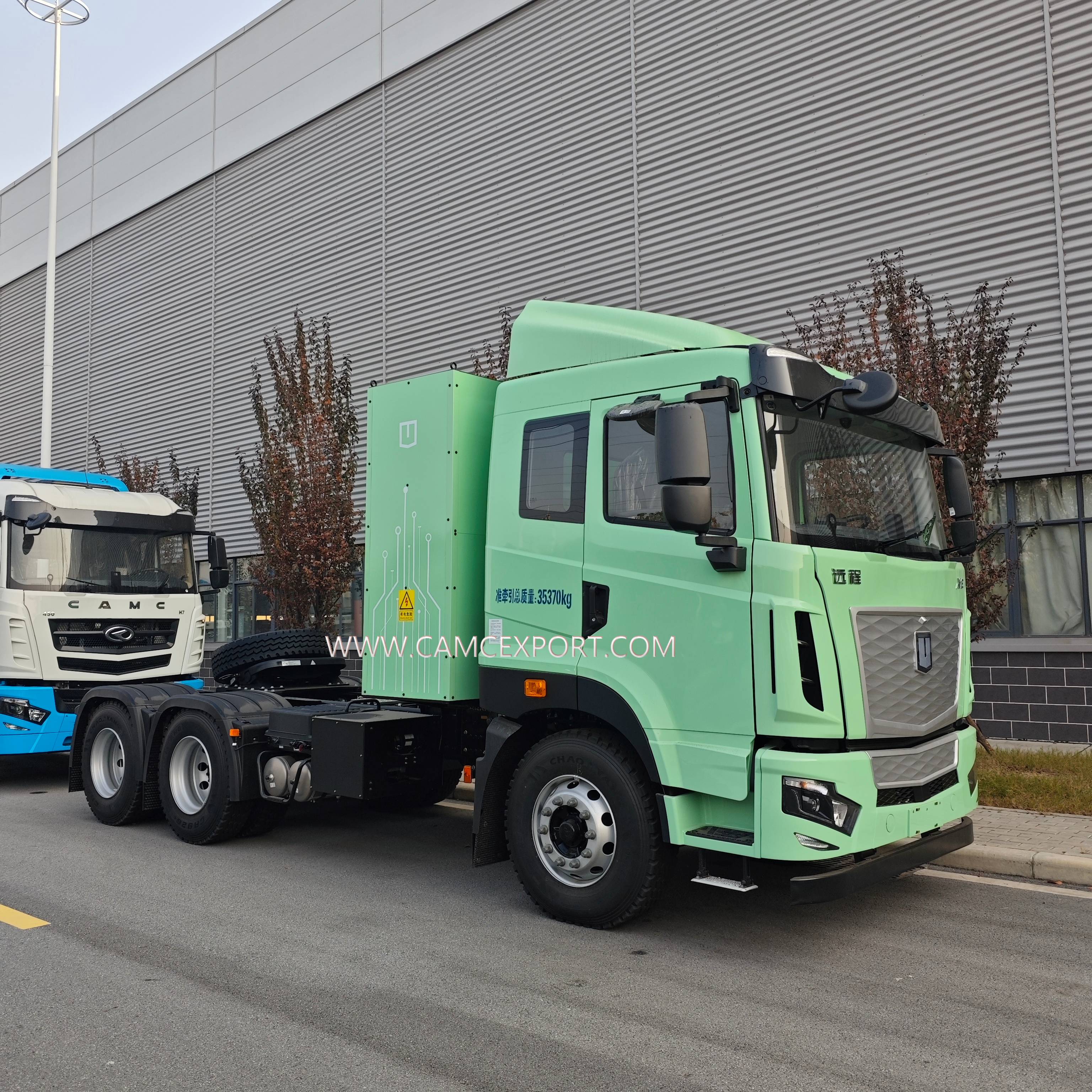

The CAMC X7E 6x4 green flat roof left-hand drive tractor breaks through the limitations of traditional fuel powered tractors, deeply integrating zero emission power technology with humanized design. With strong performance, flexible adaptability, and green environmental advantages, it has become the preferred electric equipment in the field of modern logistics transportation. Relying on CAMC's mature commercial vehicle manufacturing technology, it provides efficient, environmentally friendly, and comfortable transportation solutions for multiple scenarios such as long-distance intercity transportation, port cargo transfer, and heavy industrial transportation. The vehicle is equipped with a 440kWh high-capacity battery, supporting different capacity options, with a range of over 300km, which can flexibly adapt to the range requirements of different transportation scenarios. It is paired with a powerful electric power system, with a maximum traction of 350kN and a maximum speed of 90km/h. The power output is strong and stable, and the acceleration is smooth, fully meeting the daily operational needs of various medium and heavy-duty transportation. Adopting a practical green flat top design not only significantly saves body space, reduces vehicle height, improves site adaptability and passability, but also brings a broader driving vision. Combined with humanized detail design, it significantly enhances driving safety and comfort; The left-hand drive configuration fully conforms to the driving habits of the global left-hand drive market, suitable for mainstream left-hand drive transportation markets such as North America and Europe, and can be put into use without additional adjustments. At the same time, the zero emission feature is in line with global environmental policies, significantly reducing operational energy consumption and environmental pressure, and balancing practicality and environmental protection.
| Parameter Item | Specification |
| Drive Form | 6x4 |
| Driving Position | Left-Hand Drive |
| Power Type | Battery Electric |
| Battery Capacity | 440kWh (optional) |
| Maximum Traction Force | ≥350kN |
| Maximum Speed | 90km/h |
| Range per Charge | ≥300km (comprehensive working condition) |
| Charging Time | 1.5-2 hours (fast charging) |
| Overall Dimension (L×W×H) | 7200×2550×3200mm (approx.) |
| Maximum Towing Weight | ≤49t |
1. Zero emission environmental protection, adapting to policy trends: adopting pure electric zero emission power technology, no fuel consumption, no pollutant emissions, in line with the global trend of green logistics development and environmental regulations. At the same time, the energy consumption cost is much lower than traditional fuel powered tractors, making long-term operation more economical.
2. Strong power and flexible range: equipped with a 440kWh battery, supporting multiple capacity options, with a range of>300km, a maximum traction force of 350kN, a maximum speed of 90km/h, stable power output, suitable for long-distance intercity, port, heavy industry and other diverse transportation scenarios.
3. Left rudder flat top, good adaptability: The left-hand drive configuration conforms to the driving habits of the global left-hand drive market and is suitable for mainstream left-hand drive transportation areas; The green flat top design saves space, reduces body height, improves passability, and broadens driving visibility, balancing safety and comfort.
4. Global adaptation, reliable quality: relying on CAMC's mature manufacturing technology, the structure is compact and durable, which can perfectly adapt to various scenarios such as long-distance intercity, port transfer, heavy industrial transportation, etc., with low failure rate, convenient maintenance in the later stage, and suitable for high-frequency operation needs.
1. Pre-Operation Check
Before starting the vehicle, please first check the battery power: observe the power display on the instrument panel to ensure that the power is sufficient for the trip. Then check the tire pressure and tire wear, and confirm that the braking system, steering system and lighting system are working normally. Finally, check whether the cab door is closed tightly and whether the safety belt is intact.
2. Startup & Driving
Insert the key and turn it to the "ON" position, wait for the vehicle system to self-check (about 3 seconds). After the self-check is completed, step on the brake pedal, switch the gear to the "D" (forward) or "R" (reverse) position, release the handbrake, and slowly release the brake pedal. The vehicle will start slowly. During driving, adjust the speed through the accelerator pedal, and pay attention to observing the road conditions and the instrument panel information at all times.
3. Charging Operation
Park the vehicle in a safe charging area, turn off the vehicle power, and pull out the key. Connect the charging gun of the charging pile to the vehicle's charging interface (note that the connection should be tight to avoid poor contact). After the connection is successful, set the charging parameters (such as charging amount) through the charging pile screen, and start charging. During the charging process, do not leave the vehicle unattended for a long time. After charging, first stop charging through the charging pile, then pull out the charging gun, and cover the charging interface dust cover.
4. Shutdown Operation
Park the vehicle in a flat and safe area, step on the brake pedal to stop the vehicle, switch the gear to the "N" (neutral) position, pull up the handbrake, turn the key to the "OFF" position, and pull out the key. After getting off the vehicle, check whether the vehicle is locked and whether the surrounding environment is safe.
1. The person in charge of a long-distance logistics enterprise in China said: “Our main business is long-distance intercity transportation. The CAMC X7E 6x4 electric tractor completely breaks our understanding of pure electric tractors. The 440kWh battery has a range of more than 300km, and there is no need for frequent energy replenishment. The 350kN traction force can handle heavy loads without pressure, and the 90km/h speed can also meet the needs of efficient transportation. The green flat top design saves space, the left-hand drive operation is easy, the zero emission feature can also enjoy environmental policy benefits, the operating cost is significantly reduced, and the cost-effectiveness is high after long-term use.”
2. Logistics Procurement Manager at a European port: “Our port has frequent demand for cargo transfer, and this left-hand drive tractor is perfectly adapted to our driving habits and can be put into use without adjustment. The 440kWh battery has sufficient range and supports capacity selection. The 350kN traction force is suitable for container and other heavy cargo transfer. The green flat top design has a wide view, comfortable and safe driving, and zero emission characteristics meet local environmental requirements. It has been purchased in bulk for daily port transfer.”
CAMC International is a leading enterprise in China's heavy vehicle manufacturing industry. As a key national supported research and development production base for heavy vehicles and components, the company has maintained a leading position in the industry since its establishment in the 1970s. With a complete layout of the entire industry chain, CAMC has become the only truck manufacturer in China with the ability to independently produce core components such as engines, transmissions, axles, chassis, and cab, achieving full process autonomy and controllability from key components to the entire vehicle.
The company relies on the research and development strength of the national enterprise technology center, and its products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in key areas of the national economy such as infrastructure, mining, and logistics. Through continuous technological innovation and intelligent manufacturing upgrading, CAMC not only maintains a leading position in the domestic market, but also sells its products to more than 80 countries and regions around the world, especially in the markets along the "the Belt and Road". As a representative enterprise of high-end equipment manufacturing in China, the company is actively promoting the application of new energy and intelligent technology in the commercial vehicle field, leading the industry to transform and upgrade towards green and low-carbon direction.
Q1: How long does it take to fully charge the vehicle, and can it be charged at ordinary charging piles?
A: The fast charging time of the vehicle is 1.5-2 hours, and the slow charging time is about 8-10 hours. It supports most of the mainstream charging piles on the market. When using ordinary charging piles, please ensure that the charging voltage and current match the vehicle's charging parameters to avoid damage to the battery.
Q2: What should I do if the battery power is insufficient during driving?
A: When the instrument panel displays low power, the vehicle will automatically prompt. You can check the nearby charging stations through the on-board navigation system and drive to the charging station for charging as soon as possible. At the same time, the vehicle is equipped with a power-saving mode. You can switch to the power-saving mode through the operation interface to reduce power consumption and extend the driving distance.
Q3: Is the maintenance of electric tractors more complicated than that of fuel tractors?
A: On the contrary, the maintenance of electric tractors is simpler. Compared with fuel tractors, electric tractors have no engine, gearbox and other complex mechanical components, so the number of maintenance items is greatly reduced. The daily maintenance mainly includes checking the battery status, tire pressure and braking system, which can be completed by professional maintenance personnel according to the maintenance manual.
Q4: Can the vehicle be used normally in low-temperature environments?
A: The vehicle's battery is equipped with a heating system, which can work normally in the temperature range of -20℃ to 45℃. In low-temperature environments, the battery capacity may decrease slightly, which is a normal phenomenon. You can preheat the battery through the on-board system before driving to improve the battery performance.
