CAMC

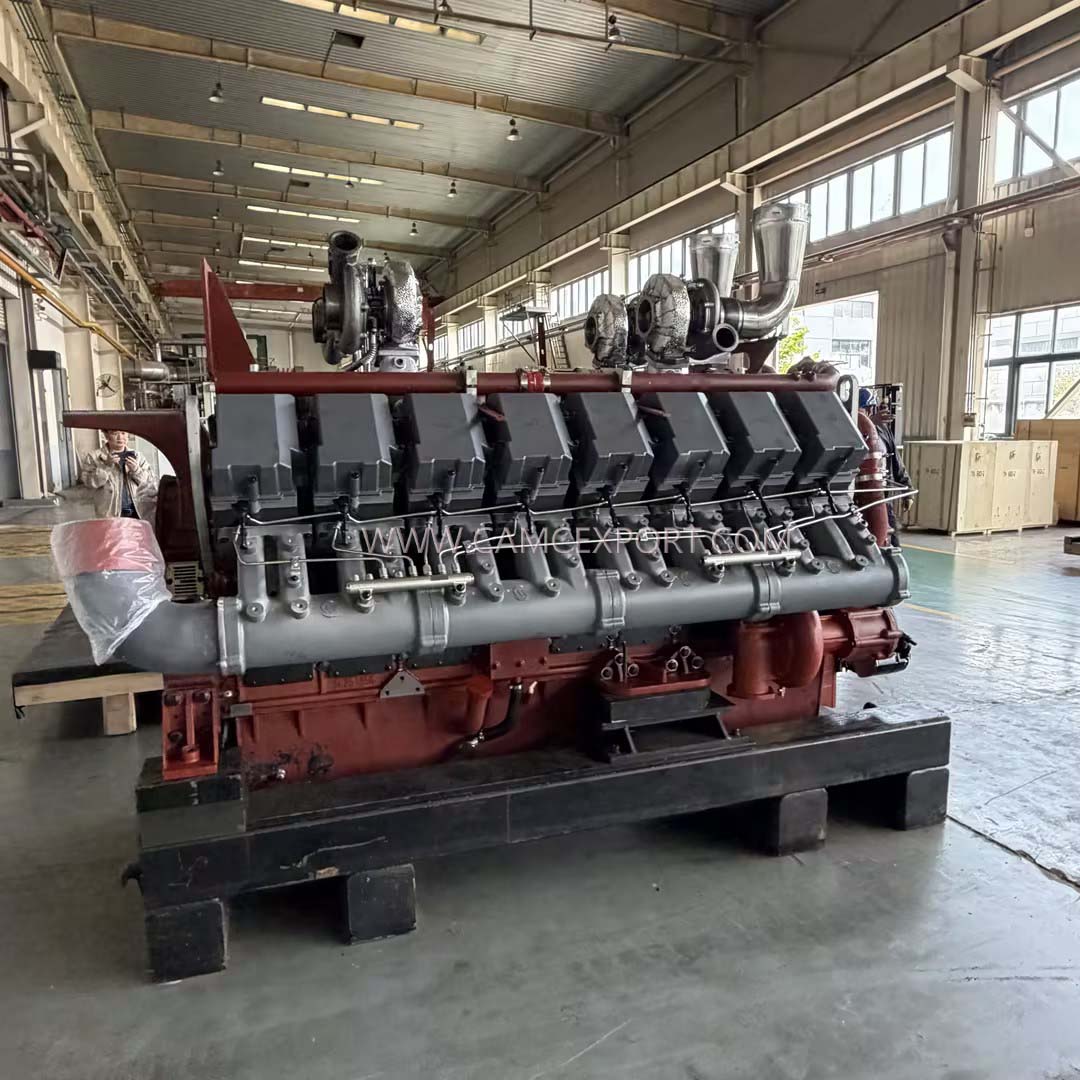

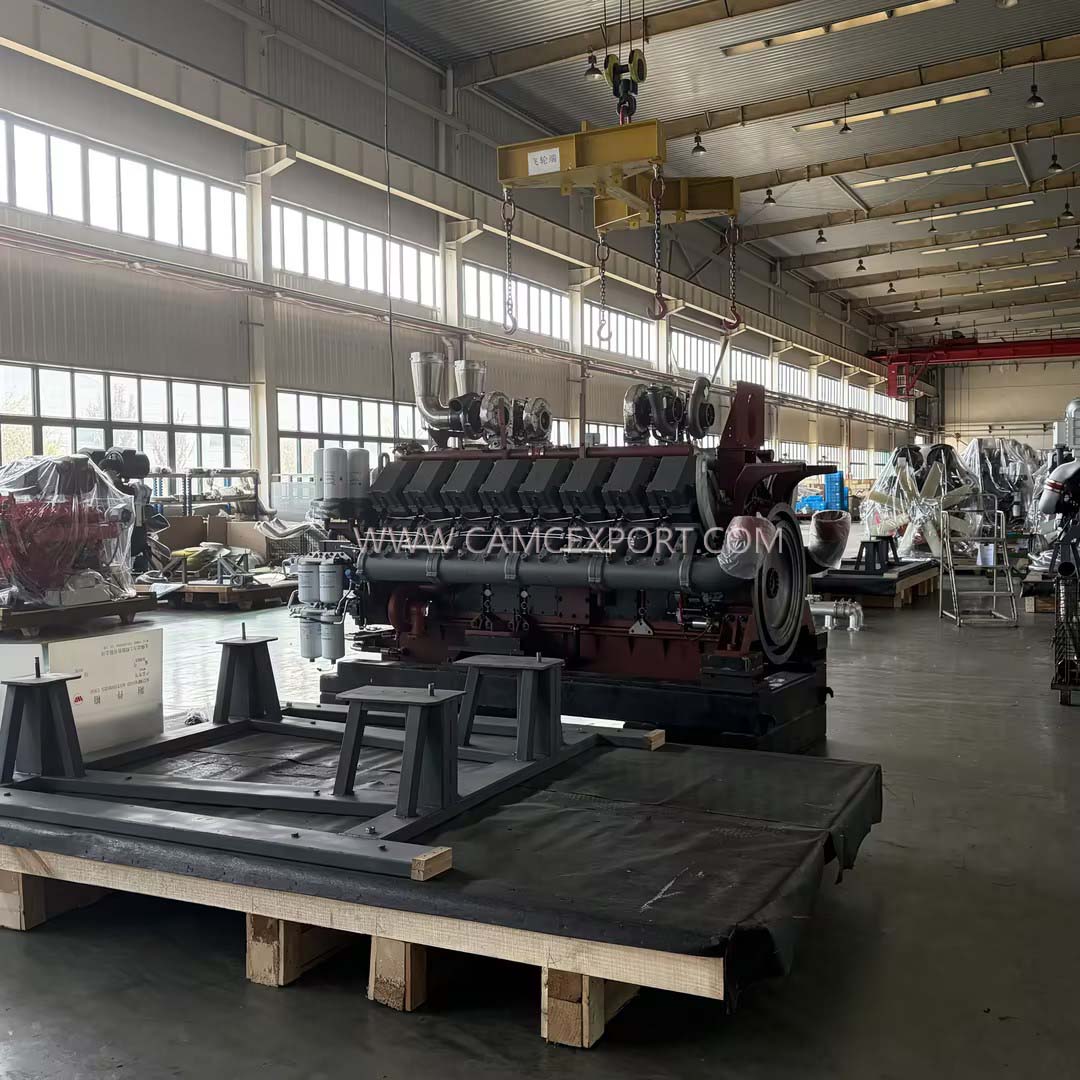

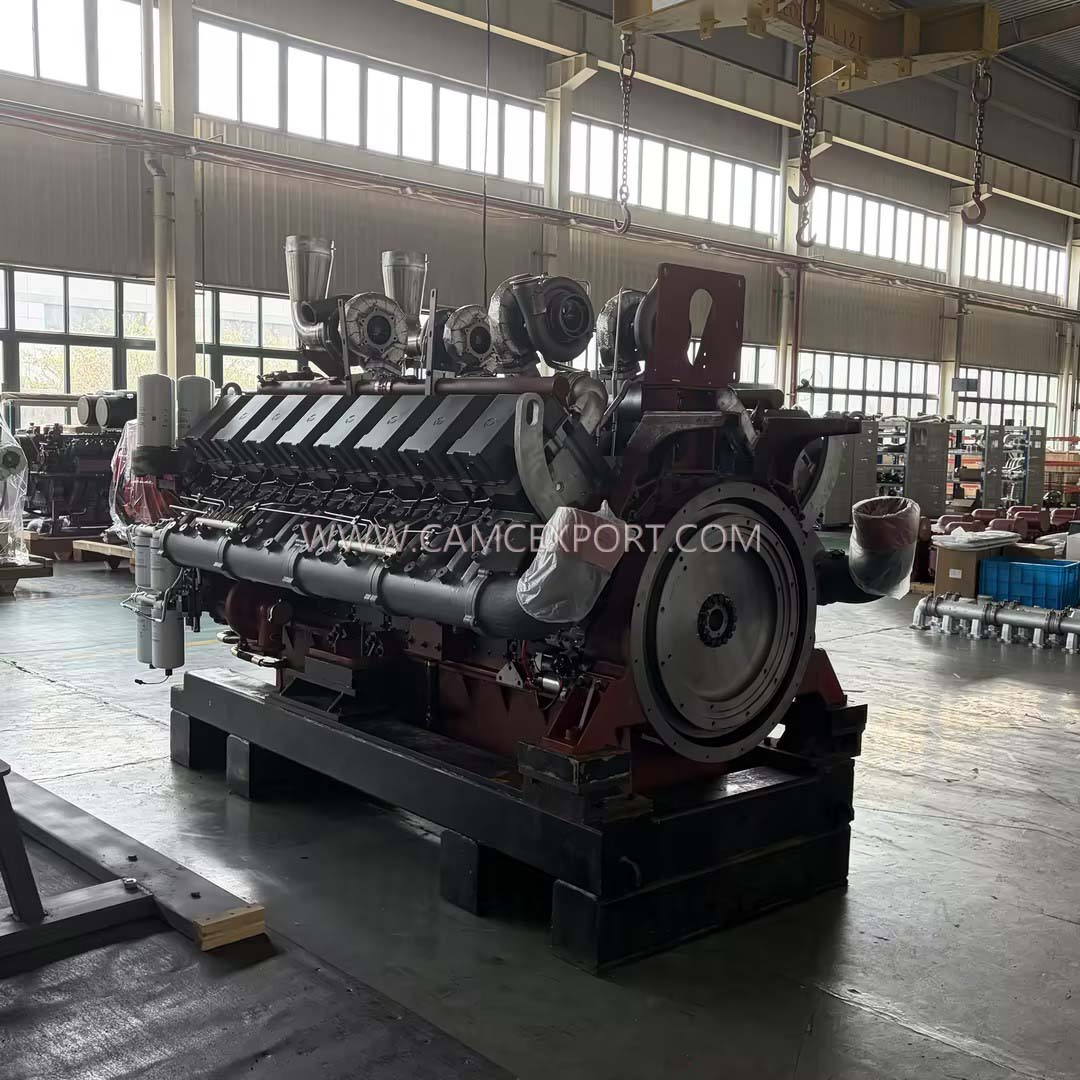

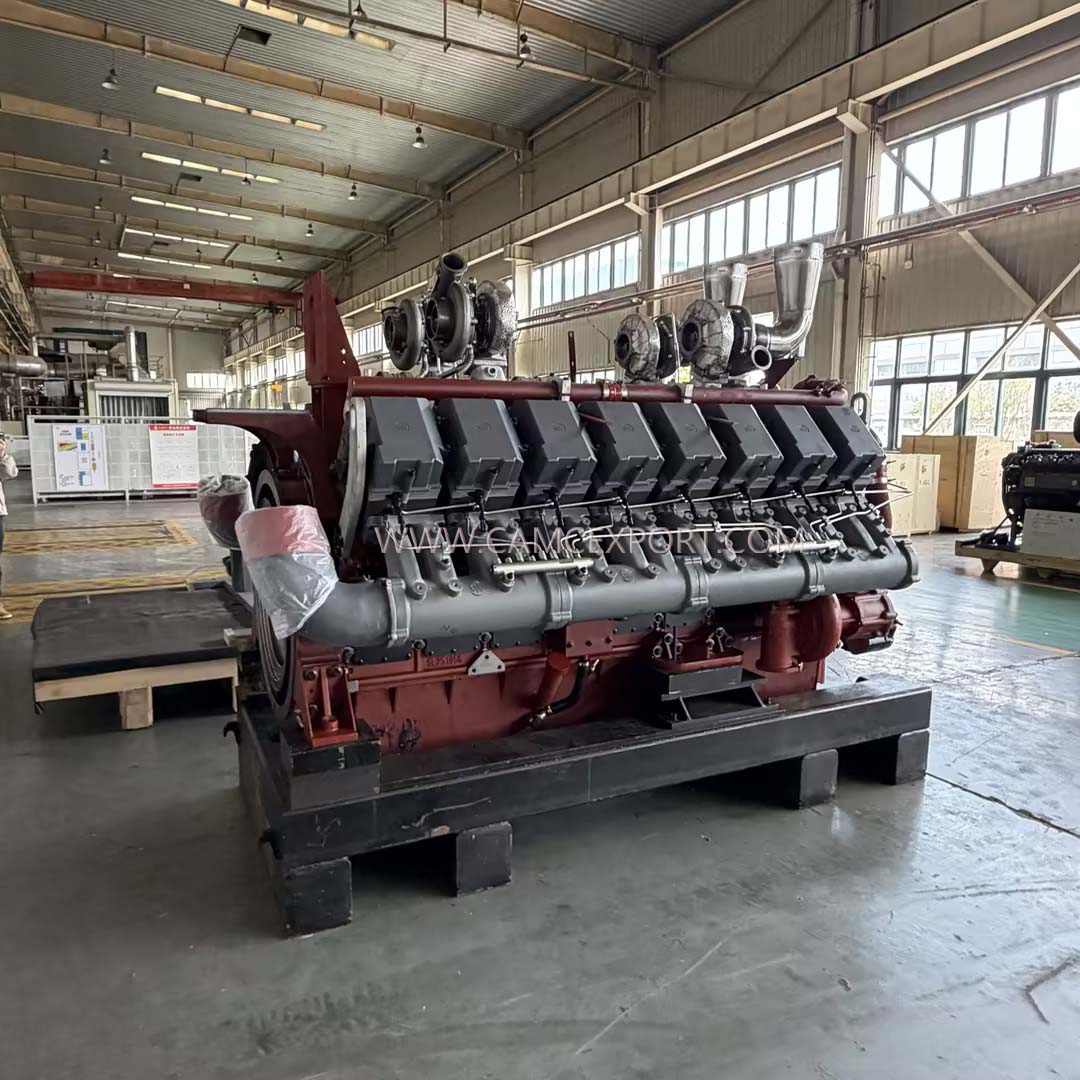

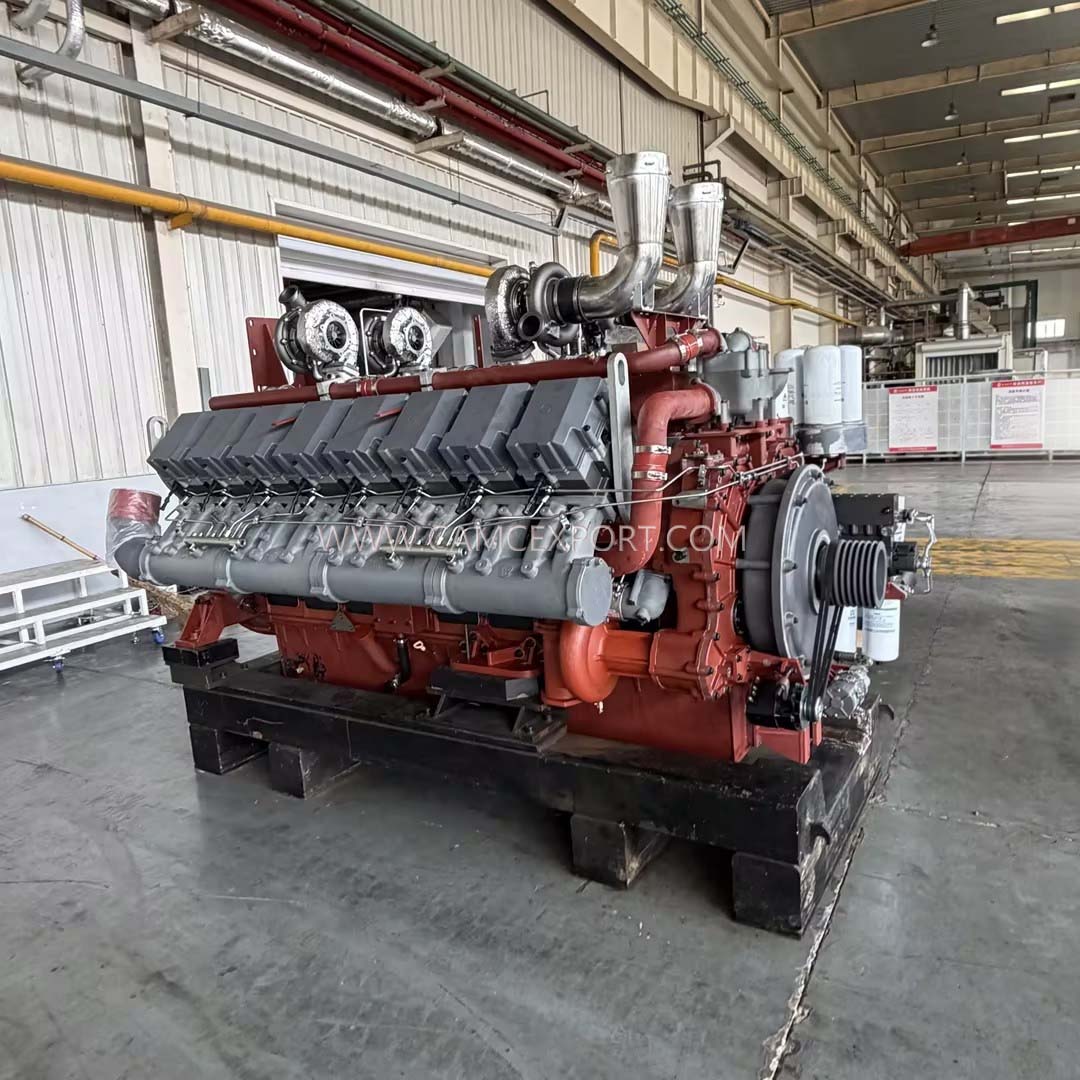

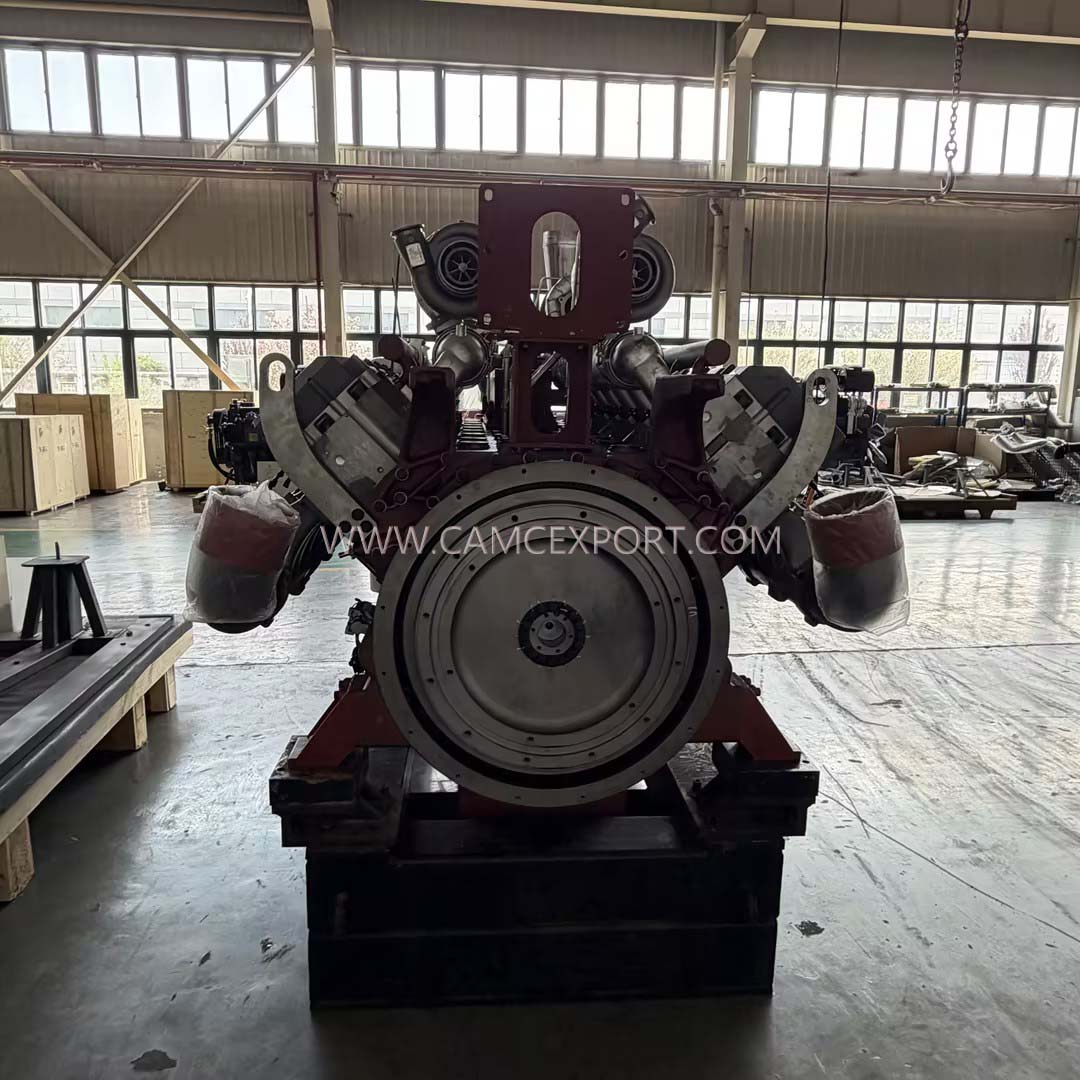

CAMC's new marine diesel engine is a high-performance power equipment designed specifically for the electricity needs of various large and medium-sized ships. With high power output, lightweight design, ultra quiet operation, and convenient practicality, it has become the core preferred power source for inner compartments of large and medium-sized cargo ships, engineering ships, and ocean going vessels. It provides stable and powerful power support for ship navigation, communication, power supply, and various auxiliary equipment, demonstrating CAMC's technological breakthroughs in the field of ship power. The engine adopts a 16 cylinder diesel engine design and is made of advanced lightweight materials. Compared with traditional bulky models, it is easier to transport, install, and maintain, which is in line with the spatial layout characteristics of ship engine rooms; The calibrated speed is stable at 1500r/min, coupled with an electronically controlled high-pressure common rail and turbocharging system, precise fuel injection, optimized intake efficiency, not only greatly improves power performance, but also achieves high efficiency and energy saving. The rated power can reach 1848-2660kW, which can easily meet the high load electricity needs of large and medium-sized ships. At the same time, it is equipped with 6 × 165AH, 12V batteries, which start smoothly and provide stable power supply, ensuring continuous and efficient operation of the equipment. The engine has been specially optimized for ultra quiet operation, with structural adjustments, sound insulation and noise reduction design, and precise component tuning to significantly reduce operating noise and minimize interference with crew life and ship environment, meeting the standards for ship quiet operation; The external dimensions are 4285 × 2400 × 2510mm, with a compact and orderly structure that can be neatly installed in the inner cabin of the ship without occupying too much space; As a brand new product, it has undergone rigorous factory testing and all performance indicators have reached high industry standards. After installation, it can provide power to ships without additional debugging. With mature manufacturing processes, it is suitable for complex operating environments such as high humidity and high salt spray on ships, and has outstanding durability, providing solid power guarantee for long-term stable navigation of ships.
| Model | WD628E3TWD168 | WD628E3TWD201 | WD708E3TWD222 | WD708E3TWD241 |
| Standby （kW） | 1848 | 2220 | 2442 | 2660 |
| Standby （kW） ICXN | 1680 | 2018 | 2220 | 2418 |
| Rated speed（r/min） | 1500 | 1500 | 1500 | 1500 |
| Cylinder bore×piston stroke(mm) | 160*195 | 160*195 | 170*195 | 170*195 |
| Number of cylinders | 16-cylinder V-type | 16-cylinder V-type | 16-cylinder V-type | 16-cylinder V-type |
| DBA | 126* | 127* | 127* | 127* |
| FSU | ≦1.5 | ≦1.5 | ≦1.5 | ≦1.5 |
| Displacement(L) | 62.7 | 62.7 | 70.8 | 70.8 |
| Compression ratio | 15 | 15 | 14.5 | 14.5 |
| Intake mode | Turbo | Turbo | Turbo | Turbo |
| Maximum inlet resistance（kPa） | 6.2 | 6.2 | 6.2 | 6.2 |
| Air combustion(m3/h） | 11350 | 13600 | 15000 | 16500 |
| Maximum exhaust back pressure(kPa) | 6 | 6 | 6 | 6 |
| Exhaust Flow(m3/h） | 24600 | 29600 | 32600 | 35800 |
| Exhaust gas temperature（℃） | ≦680 | ≦700 | ≦700 | ≦700 |
| Cooling | Radiator | Radiator | Radiator | Radiator |
| Fan exhaust flow（m3/h） | 125200 | 125200 | 136800 | 136800 |
| The total capacity of the cooling fluid（L） | 500 | 500 | 600 | 600 |
| The maximum water temperature（℃） | 95 | 95 | 95 | 95 |
| Thermostat thermostat range(℃) | 78～90 | 78～90 | 78～90 | 78～90 |
| The maximum oil temperature（℃） | 105 | 105 | 105 | 105 |
| The total capacity of lubricating oil(L) | 250 | 250 | 250 | 250 |
| Minimum fuel consumption（g/kW.h） | 195 | 195 | 195 | 195 |
| Specific oil consumption（g/kW.h） | ≦0.48 | ≦0.48 | ≦0.48 | ≦0.48 |
| Fuel system | Electric controlled high-pressure common rail | |||
| Flywheel teeth | 140 | 140 | 140 | 140 |
| Battery capacity（AH） | 6X165AH 12V | 6X165AH 12V | 6X165AH 12V | 6X165AH 12V |
| Dimensions(Length×Width×Height)mm | 4285*2400*2510 | 4285*2400*2510 | 4285*2400*2510 | 4285*2400*2510 |
| PACKING（CM） | 250*205*220 | 250*205*220 | 250*205*220 | 250*205*220 |
| Net weight of diesel engine (ton) | 10 | 10 | 10 | 10 |
| Oil （non-cold eare） | CF grade 15W/40 | CF grade 15W/40 | CF grade 15W/40 | CF grade 15W/40 |
| Fuel （non-cold eare） | Number 0 or -10 | Number 0 or -10 | Number 0 or -10 | Number 0 or -10 |
1. High power and efficient output, outstanding energy saving: The 16 cylinder design is matched with an electronically controlled high-pressure common rail and turbocharging system, with a calibrated speed of 1500r/min and a rated power of 1848-2660kW. The power is strong and stable, with precise fuel injection and optimized intake design, balancing efficient power and energy saving, and adapting to the high load electricity demand of large and medium-sized ships.
2. Lightweight design, convenient operation and maintenance: Made of advanced lightweight materials, it is lighter compared to traditional models, making it easier to transport, install, and maintain in the future; Equipped with 6 × 165AH, 12V batteries, the startup is smooth and stable, further reducing the difficulty and cost of operation and maintenance.
3. Ultra quiet operation, excellent adaptability: Specially optimized to achieve ultra quiet operation, multi-dimensional sound insulation and noise reduction design, significantly reducing operating noise and minimizing interference with crew members; The size is 4285 × 2400 × 2510mm, with a compact structure that can be neatly adapted to the inner cabin of ships and fits the layout of various large and medium-sized ship engine rooms.
4. Ready to use, stable and durable: The brand new product has undergone strict factory testing and can be powered without additional debugging after installation, making it convenient and efficient; Mature manufacturing processes are suitable for complex environments such as high humidity and high salt spray on ships, ensuring reliable quality and long-term stable operation of equipment, providing escort for ship navigation.
