Product Description

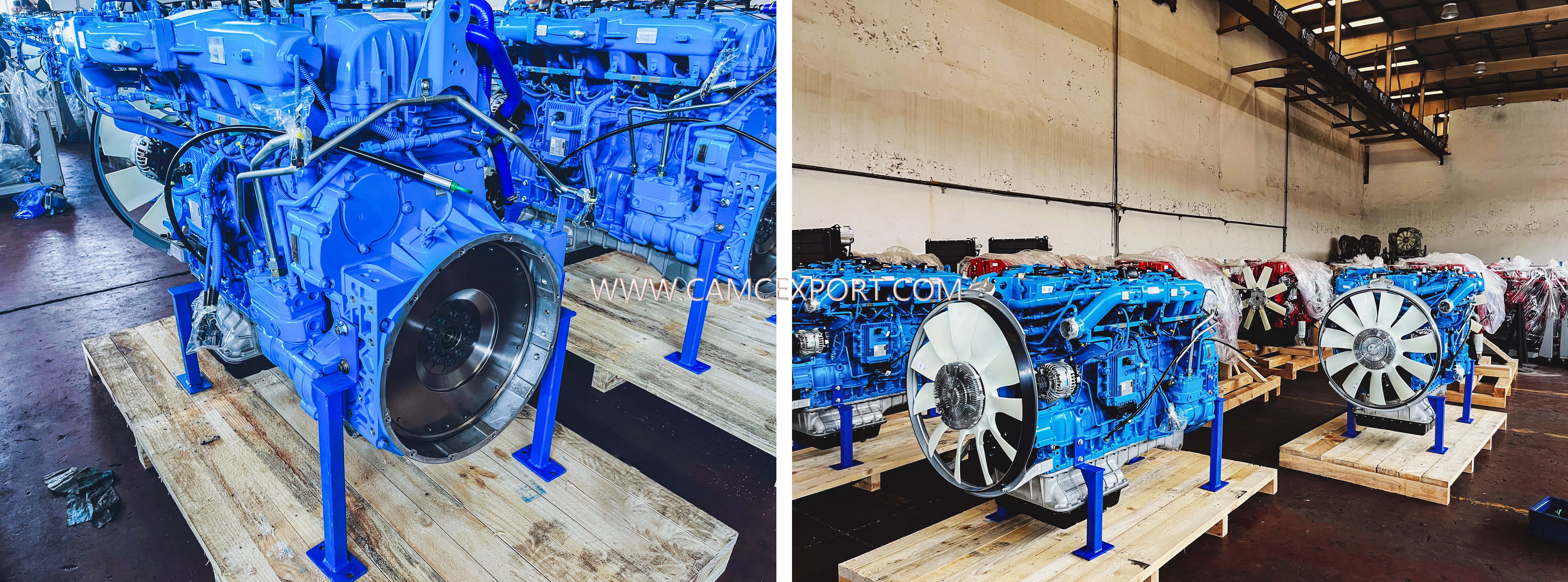

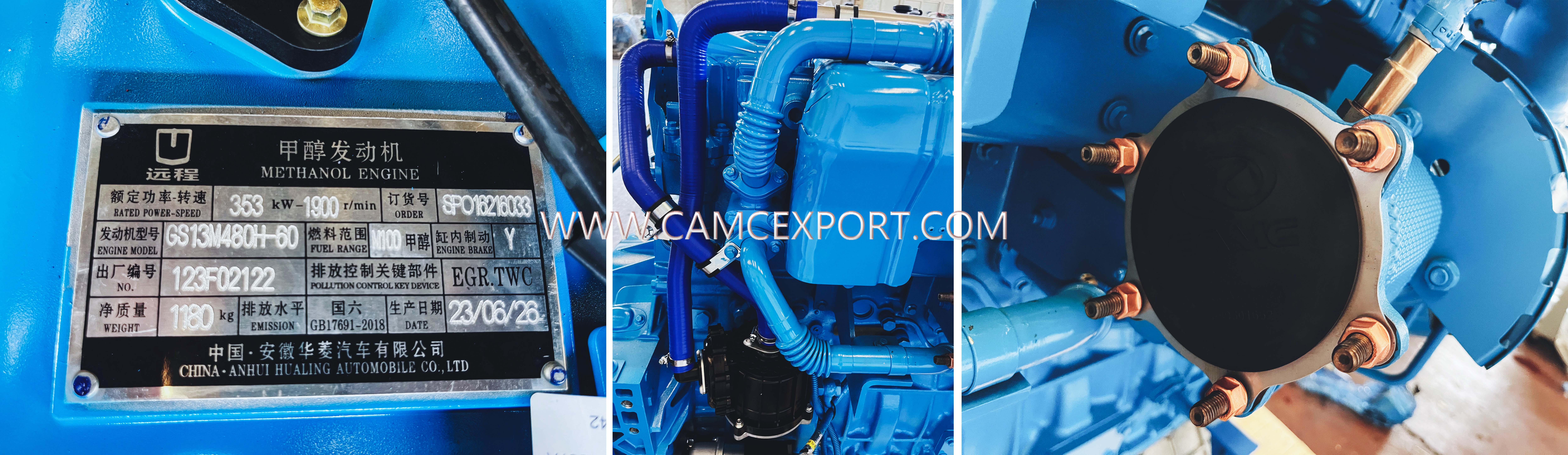

CAMC GS06M series is an efficient and clean methanol fuel engine, using M100 methanol as fuel, equipped with 6-cylinder in-line design, displacement 5.9L, maximum power 180kW (2200r/min), peak torque of 930Nm, strong power, environmental protection and energy conservation. The engine ensures stability and durability under heavy duty conditions by optimizing combustion control and cooling systems.
Provide all-around service support, including on-site installation and commissioning, multilingual video technical support, 24-hour overseas call center, online remote diagnosis, and promise free spare parts supply and global on-site maintenance, so as to guarantee user's worry-free operation. It is applicable to heavy truck, engineering machinery and power generation equipment and is a reliable choice for green power.
Technical Parameters
| Engine model | GS06M series |
| Engine arrangement type | In-line, four-stroke, liquid-cooled, supercharged intercooled |
| Type of fuel | M100 Methanol |
| Cylinder | 6 |
| Cylinder Bore x Stroke（mm） | 112*150 |
| Compression ratio | 12.5：1 |
| Engine displacement(L) | 5.9 |
Maximum power/Maximum speed(r/min) | 180/2200 |
| Maximum torque(N·m） | 930 |
| Max torque/rotation speed(r/min) | 1300/1600 |
| Electronic control system | Multi-point jet electronic control system |
| Idle speed(r/min) | 600±50 |
| the life of the B10 engines（km） | 1 million |
Advantages Of The Product
Efficient cleaning power
M100 methanol fuel technology is adopted, the combustion efficiency is increased by 15%, the carbon emission is reduced by 40% compared with the diesel engine, the strict environmental protection standard is met, the maximum power is 180kW (2200r/min), and the peak torque is 930Nm.
Reliable and durable design
With reinforced structure of 6 cylinders 5.9L, the key components have passed the 100000 hours bench test, and the failure rate is lower than the industry average value by 30%, which is suitable for extreme environment of - 30 ℃ to 50 ℃.
Intelligent operation and maintenance support
Equipped with remote monitoring system, combined with global 24-hour call center+online diagnosis, it realizes fault warning and accurate maintenance guidance, and the downtime is reduced by 60%.
Full-cycle service guarantee
Provide fast supply of spare parts, on-site technical training and lifetime maintenance programs, and significantly reduce user operating costs.
Customer Reviews
Technical Director, Northern Europe Logistics
"Our 20 GS06M engines have been outstanding in the Swedish - Norwegian trans-border transportation. -The success rate of cold start at 30 ℃ reaches 100%, and the cost of methanol fuel is 38% less than that of diesel. The most surprising is the remote diagnosis system. Chinese engineers directly guide us to troubleshoot, and the maintenance efficiency is improved by 50%."
Head of Equipment South America Mining Group
"GS06M has been in continuous operation for 15000 hours without overhaul at the Atacama Desert mine in Chile. The torque of 930Nm is perfectly suitable for heavy duty uphill working condition, and the tail gas is free of black smoke. The Spanish training team provided by CAMC enables us to quickly master the maintenance skills of methanol engine."
Our Factory
CAMC International Trade Co., Ltd. is a core subsidiary of China National Machinery Industry Corporation (ChemChina) that focuses on overseas markets. Leveraging the strong industrial resources of its parent company, CAMC is committed to global promotion and technical services for heavy-duty and specialized vehicles. As a national key R&D and production base for heavy-duty vehicles and components, the company has industry-leading technological strength and manufacturing capabilities. Its products cover multiple fields such as tractor, dump truck, and specialized vehicle, and are widely used in logistics, engineering, and special transportation markets.
The company is headquartered in Huashan District, Ma'anshan City, Anhui Province. With a complete supply chain system and international strategic layout, its products are exported to Southeast Asia, the Middle East, Africa, Latin America and other regions. As a key supported enterprise by national policies, CAMC always adheres to the principle of technological innovation and quality priority, providing high reliability and cost-effective transportation solutions for global customers, and continuously enhancing the competitiveness of Chinese manufacturing in the international market.
FAQ
Q: How many engines can your factory produce annually?
A: Hello, we can produce nearly 100000 units annually. Nearly 8500 units per month.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q: Do you have ISO certification?
A: Yes, we have ISO, CCC, BV certifications. Please contact us to obtain the certificate.
Q:How to choose the right model?
A:It depends on continuous output power, Voltage, Frequency and fuel type.
Q:How is the after sale service and maintenance ?
A : We offer installation, repair and maintain service abroad. And online quide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Q: How do you control the quality of the product?
A: Our factory has standard production workshops and our workers are well-trained. Every product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q: What's the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container, flat bed container, Ro-Ro ship or bulk
ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, North Africa, Southeast As
