CAMC

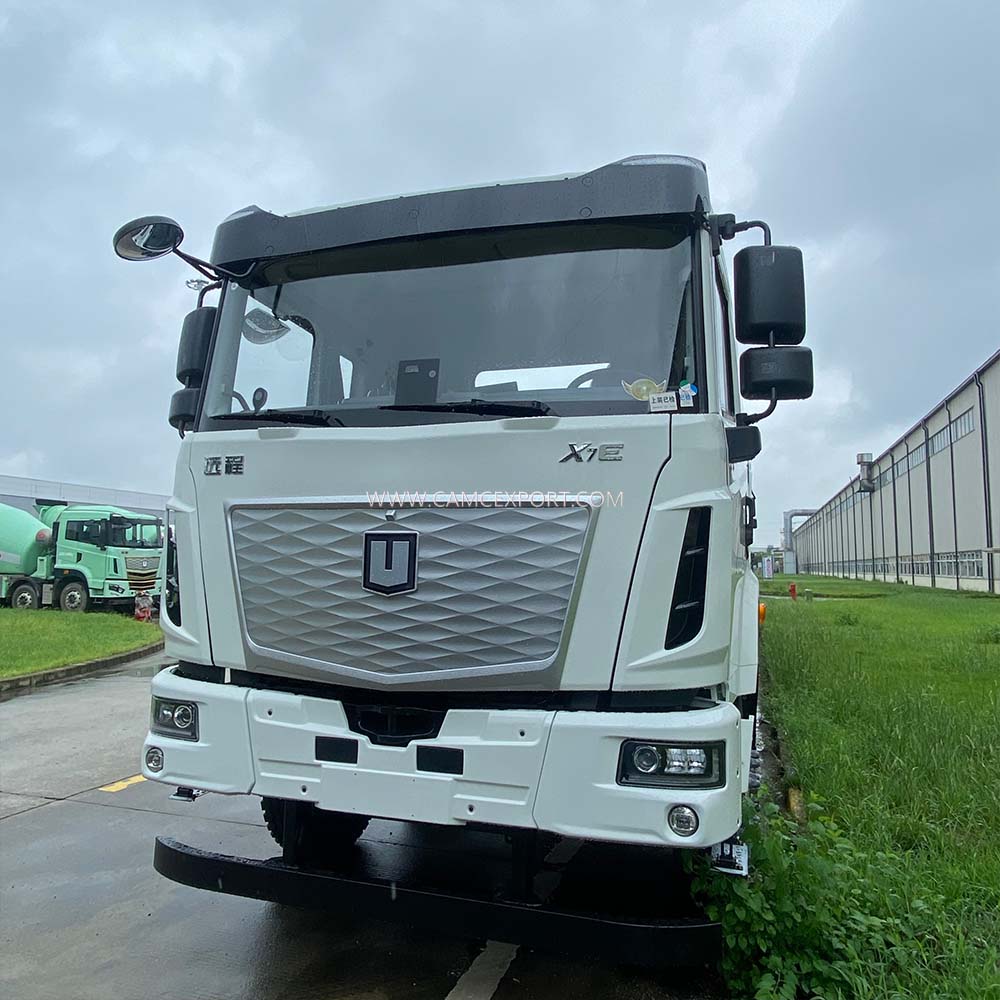

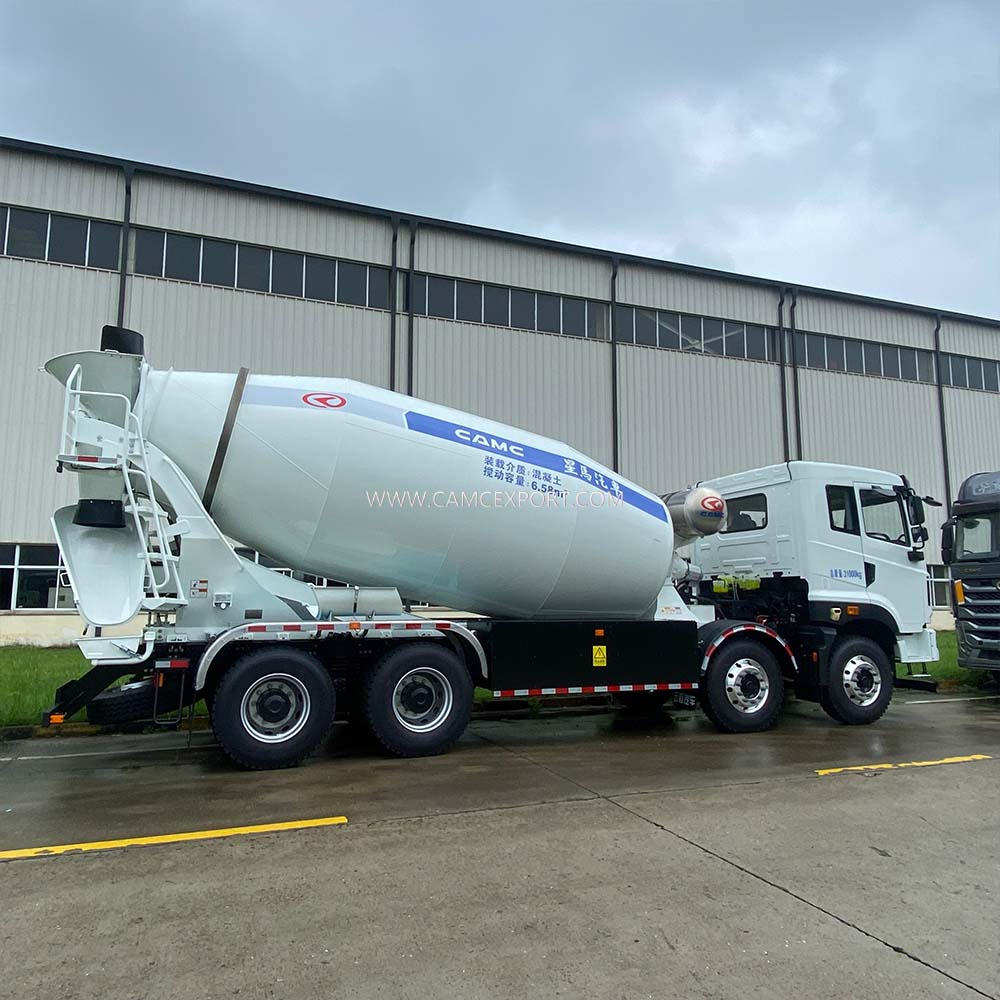

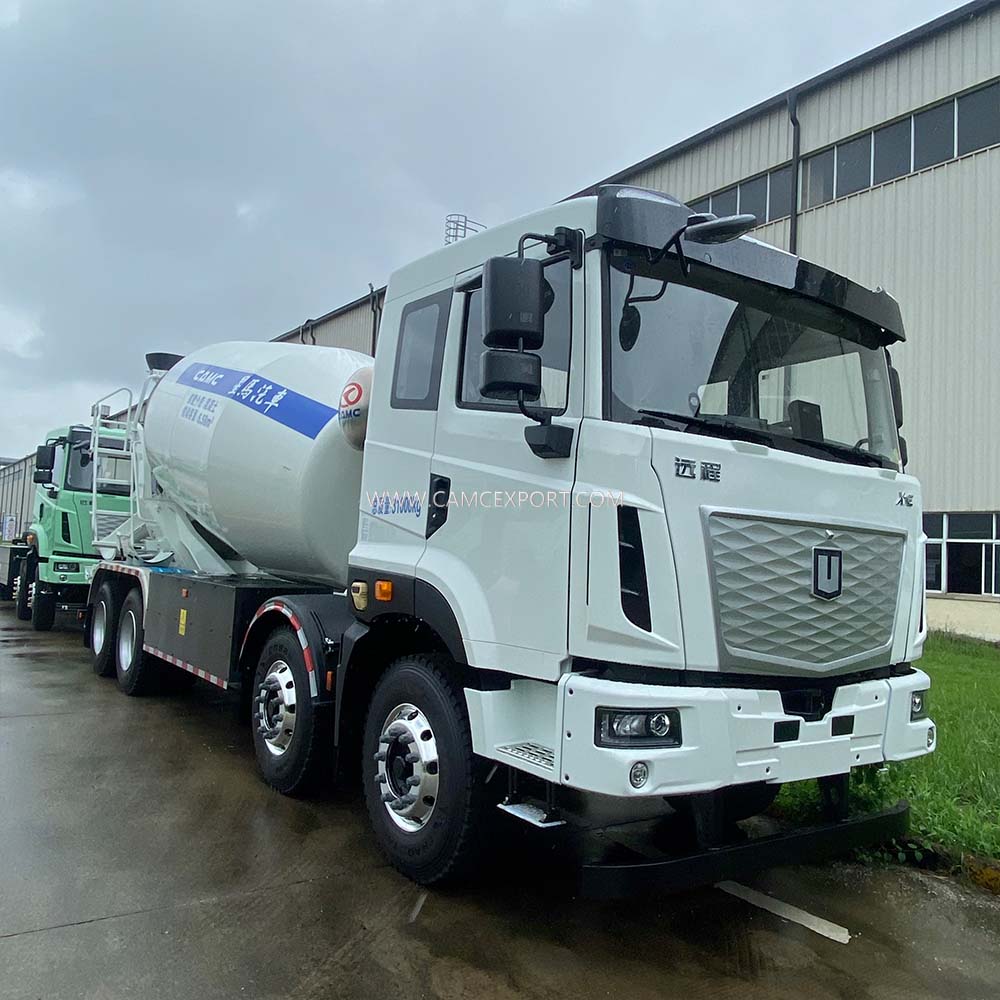

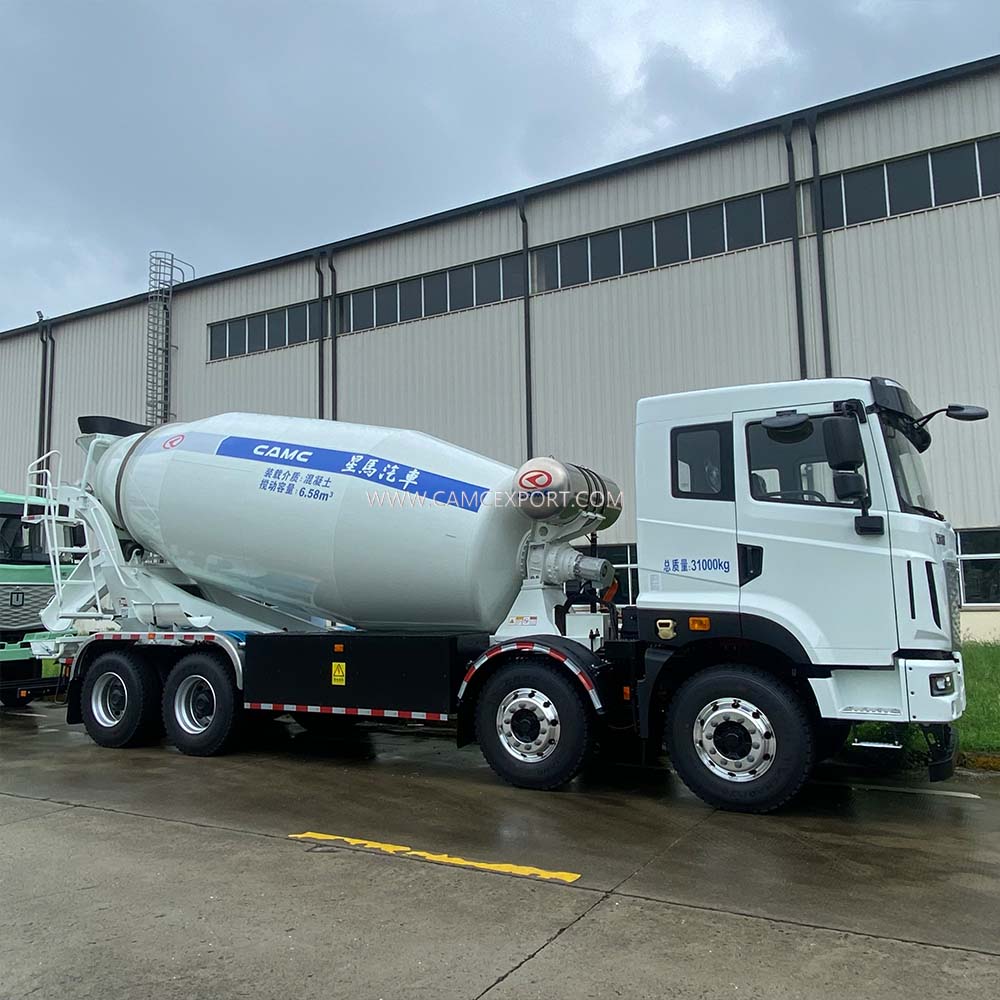

The CAMC X7E 8 × 4 left-hand drive pure electric concrete mixer truck is a zero emission engineering vehicle designed for the global municipal infrastructure and commercial concrete transportation market. It adopts a fully self-developed pure electric power chain and Xingma professional mixing and installation integrated design, and is widely suitable for concrete transportation scenarios such as urban construction sites, roads and bridges, and real estate development. The vehicle operates with zero exhaust emissions and low noise, and can enter urban construction areas with strict environmental control. It is not restricted by fuel vehicle restrictions and has served multiple zero carbon commercial concrete projects in China in bulk. It has also been exported to overseas markets such as Southeast Asia and the Middle East, becoming the preferred equipment for global green infrastructure transportation.
The vehicle is equipped with TZ460XSHME10 permanent magnet synchronous drive motor, with a rated power of 315 kW and a peak power of 450 kW. It has low-speed high torque output, excellent heavy-duty starting and construction site climbing performance, and power performance comparable to high horsepower diesel mixer trucks. Equipped with Xuanwu 400kWh lithium iron phosphate battery, the comprehensive range is about 200-240km, and one charge per day can meet high-frequency transportation throughout the day; Supports two energy replenishment modes: dual gun fast charging and battery swapping. SOC 20% -80% fast charging only takes about 30 minutes, greatly reducing the waiting time for energy replenishment. The three electric system has achieved IP68/IP6K9K protection level, with a ground clearance of 600mm for the battery, and can adapt to harsh working conditions such as mud and water on construction sites.

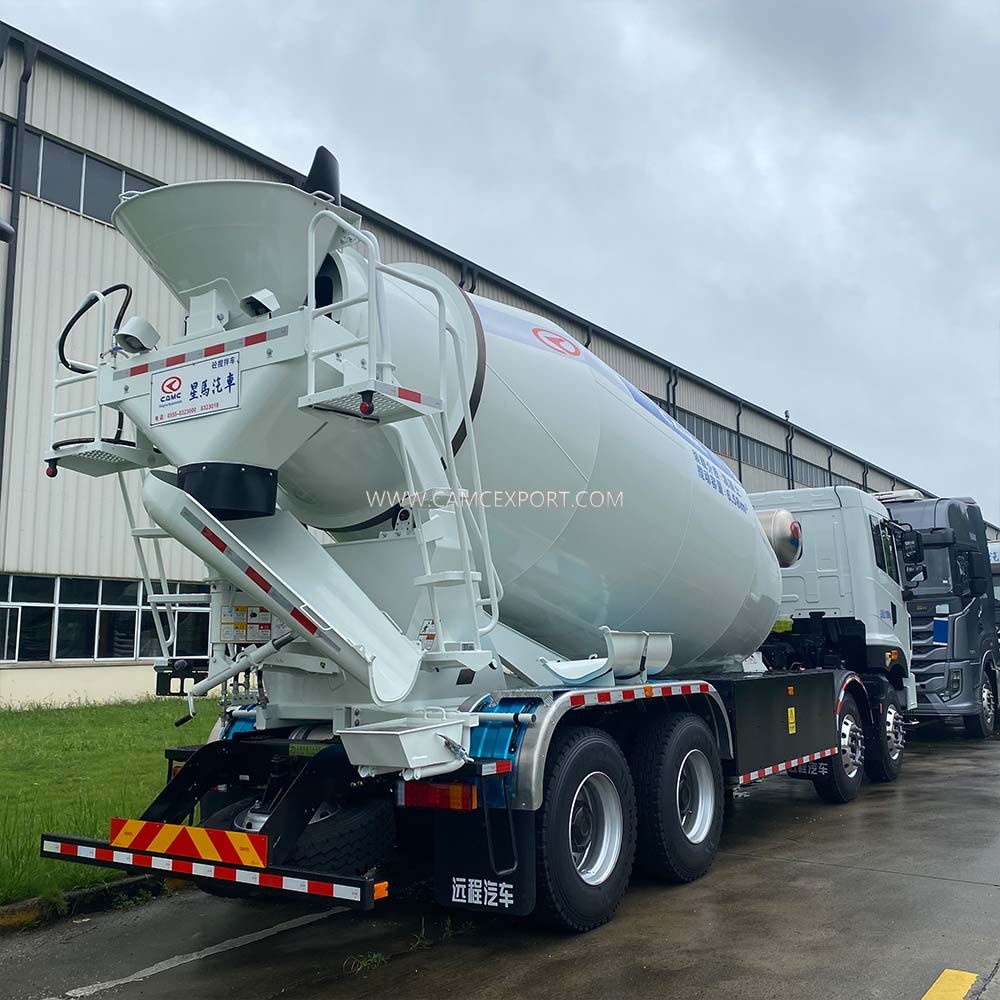

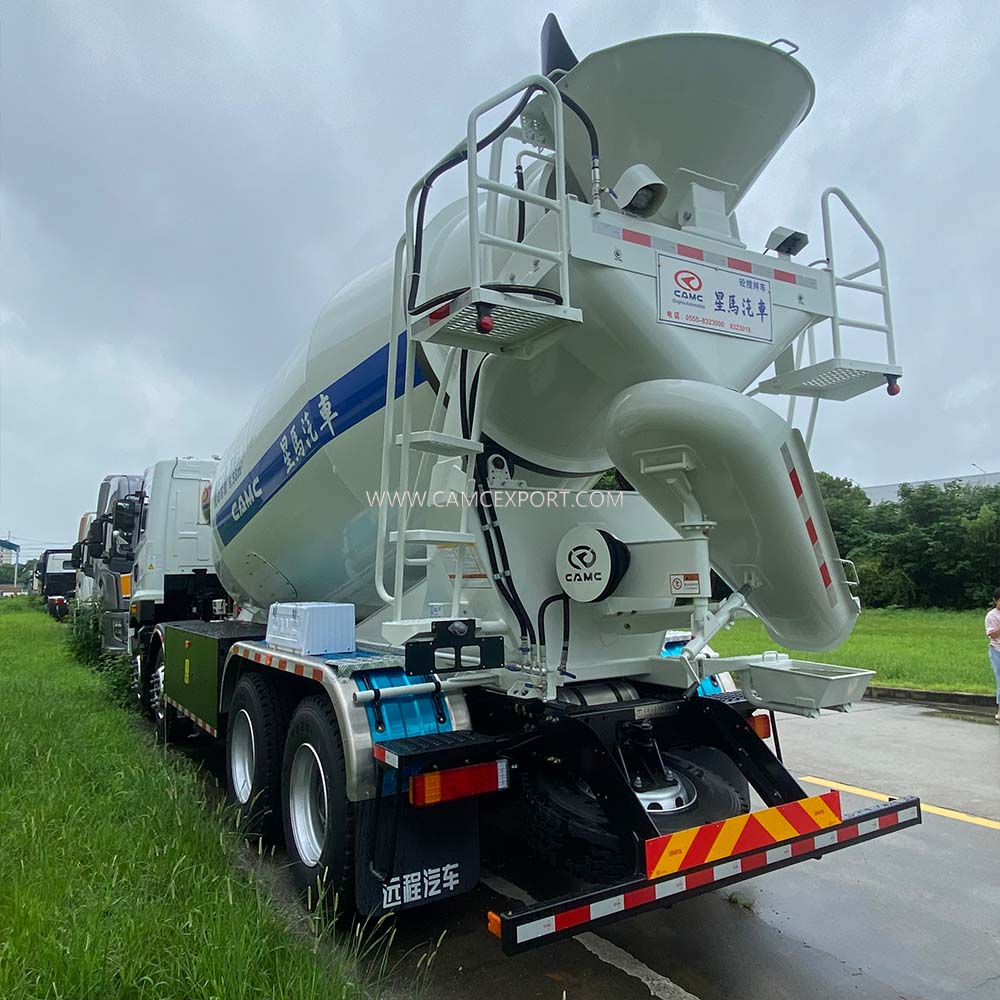

Adopting an 8 × 4 front dual steering axle and rear dual drive axle heavy-duty chassis, with a wheelbase of 1850+3500+1350mm, a body size of 10950 × 2550 × 3960mm, a curb weight of 15900kg, a rated load capacity of 14970kg, and a total weight of 31000kg, the vehicle has excellent load-bearing capacity. Equipped with Xingma professional mixing equipment, with a mixing capacity of 6.86m ³, the mixing tank is made of high-strength wear-resistant steel plate, the hydraulic drive system is stable and reliable, the forward and reverse switching is smooth, the concrete mixing uniformity is high, and the residual discharge rate is low; The tail operation platform and multi angle discharge chute design have strong construction adaptability.

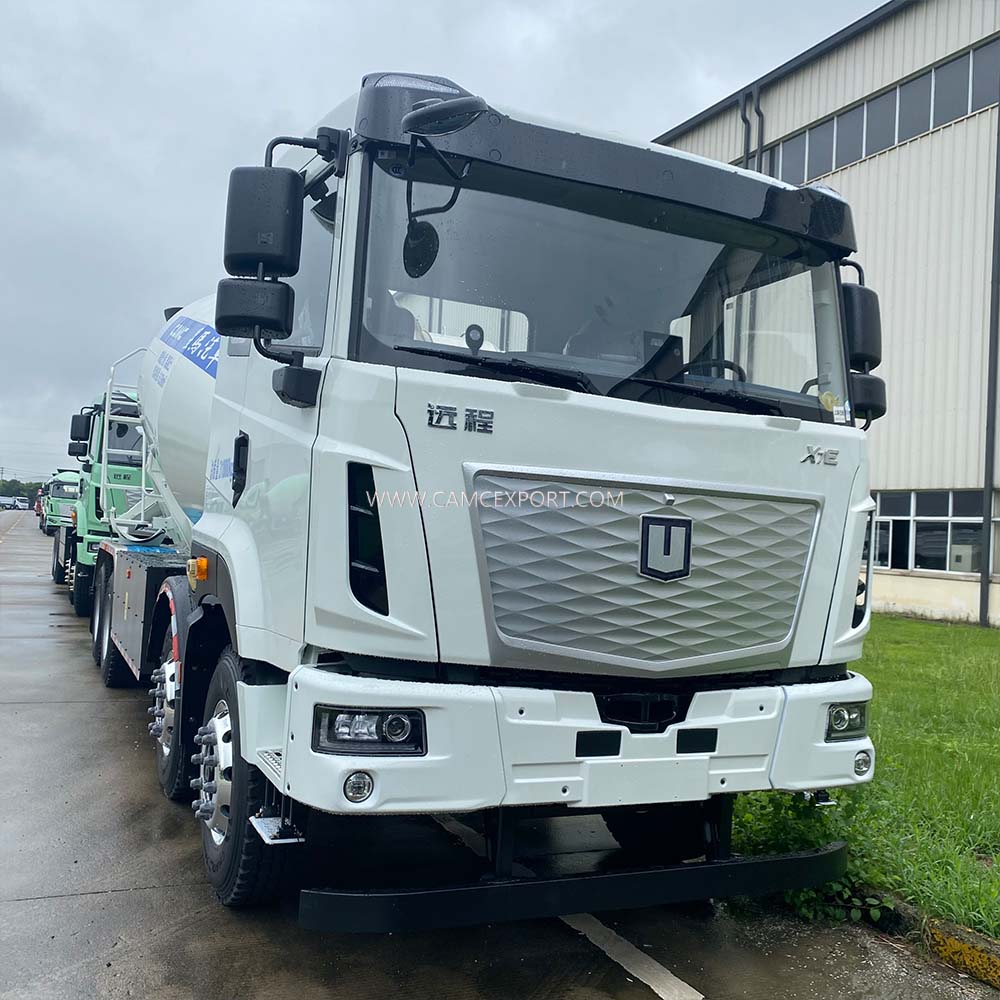

The X7 flat top cab is equipped with active safety features such as four-way imaging, BSD blind spot monitoring, AEBS automatic emergency braking, and ABS anti lock braking system as standard, fully ensuring driving safety in complex road conditions on construction sites. The energy consumption cost of pure electric operation is much lower than that of diesel, with fewer daily maintenance projects and significant advantages in operating costs throughout the entire lifecycle. Relying on CAMC's global after-sales network and professional service capabilities in the field of electrical engineering, we provide efficient, zero carbon, and reliable concrete transportation solutions for overseas concrete customers.
1.450kW powerful electric drive, worry free heavy-duty climbing
TZ460XSHME10 permanent magnet synchronous motor, rated at 315kW and peak at 450kW, with outstanding low-speed and high torque characteristics. It can handle full load starting and construction site climbing with ease, and its power performance is comparable to that of a high-power diesel mixer truck.
2.400kWh high battery capacity, dual efficient range and energy replenishment
Xuanwu 400kWh lithium iron phosphate battery, with a comprehensive range of 200-240km, can be charged once a day to meet all day operation requirements; Dual gun fast charging SOC 20% -80% only takes about 30 minutes, supports battery swapping mode, and has high energy replenishment efficiency.
3.8 × 4 heavy-duty chassis+Star Horse 6.86m ³ upper installation
Front dual wheel drive and rear dual wheel drive 8 × 4 chassis, with a total weight of 31 tons and strong load-bearing capacity; Xingma specializes in mixing and installation, with a mixing capacity of 6.86m ³, uniform mixing, thorough discharge, low residual rate, and high construction efficiency.
4.High protection three electricity, suitable for harsh working conditions on construction sites
The three electric system has a protection level of IP68/IP6K9K and a ground clearance of 600mm. It can adapt to harsh working conditions such as mud, water, and dust on construction sites, and its reliability and durability have been rigorously verified.
5.Zero carbon compliance, lower operating costs
Pure electric zero emissions, low noise, meeting environmental regulations and traffic restrictions in urban areas of various countries; The cost of electricity is much lower than that of diesel, with fewer maintenance projects and significantly reduced operating costs throughout the entire lifecycle, coupled with a global after-sales system to ensure high attendance.
Customer Review 1 | Southeast Asian Commercial Concrete Station Operations Director
“Our city's construction sites have strict environmental control measures, with restrictions on fuel vehicles. The X7E pure electric mixer truck can enter the site 24/7 for operation, and the 450kW motor can pull 6.86 cubic meters of concrete with great power to climb slopes. The 400 degree electric drive is sufficient for a day, and it can be recharged in half an hour with fast charging. The noise is low and does not disturb the public. The electricity bill is much cheaper than diesel, and I am very satisfied. "
Customer Review 2 | Middle East Infrastructure Contractors
“The construction site has poor road conditions and high temperatures. The X7E has a high level of three electric protection, a large ground clearance for the battery, and is not afraid of mud and water. The 8 × 4 chassis has stable load-bearing capacity, and the Star Horse can is stirred evenly and unloaded cleanly. The CAMC local after-sales response is timely, and it has become our main model for green construction. "
Q1: What motor does the CAMC X7E electric mixer truck use?
A: It is equipped with a TZ460XSHME10 permanent magnet synchronous motor with 315kW rated power and 450kW peak power, delivering strong low-speed torque for heavy-load starting and climbing.
Q2: What is the battery capacity and driving range?
A: It is equipped with a 400kWh Xuanwu LFP battery, achieving a comprehensive range of approximately 200–240km, sufficient for full-day high-frequency concrete transportation.
Q3: What charging and battery swapping solutions are available?
A: It supports dual-gun fast charging (SOC 20%–80% in about 30 minutes) and battery swapping, providing flexible and efficient energy replenishment.
Q4: What is the mixing drum capacity?
A: It is equipped with a Xingma professional mixing upper body with 6.86m³ agitating capacity, featuring high-strength wear-resistant steel drum, uniform mixing and low discharge residue.
Q5: What is the driving layout and load capacity?
A: It adopts an 8×4 heavy-duty chassis (dual steering front axles + dual drive rear axles) with left-hand drive (LHD), curb weight 15,900kg, rated load 14,970kg, and gross vehicle weight 31,000kg.
Q6: What are the vehicle dimensions and wheelbase?
A: Overall dimensions are 10950×2550×3960mm, wheelbase 1850+3500+1350mm, and maximum speed 85km/h.
Q7: How about the protection level for harsh construction sites?
A: The three-electric system achieves IP68/IP6K9K protection, with 600mm battery ground clearance, adapting to muddy, water-fording and dusty construction conditions.
Q8: What safety features does it have?
A: It is equipped with surround-view camera system, BSD blind-spot monitoring, AEBS automatic emergency braking and ABS as standard, ensuring comprehensive safety on complex construction roads.
Q9: What after-sales support does CAMC provide overseas?
A: CAMC offers multilingual technical support, global spare parts supply and professional three-electric system maintenance service to ensure high fleet uptime for overseas customers.
