CAMC

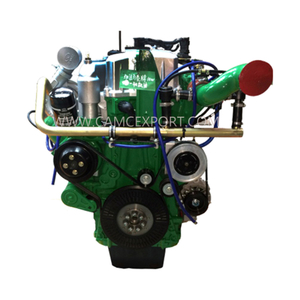

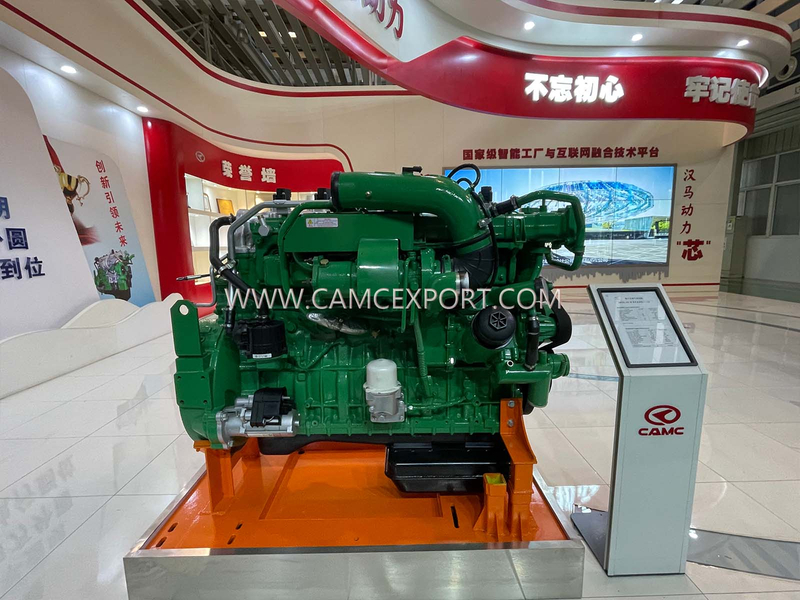

CAMC compact CNG generator engine, inline six cylinder four stroke, turbocharged intercooled, displacement 9.8L, cylinder diameter x stroke 128 x 153mm, rated power generation 220kW@1500rpm The net weight is 1180kg, and the overall size is 1480 × 720 × 1060mm. It is equipped with WOODWARD electronic control gas control system, single point intake manifold injection, suitable for 50Hz generator set, can use compressed natural gas CNG, compatible with methane content ≥ 85% gas source, meets non road emission requirements, and is suitable for industrial and mining backup power supply, off grid power station, and project site power supply scenarios.
Adopting lean combustion closed-loop electronic control technology, gas atomization and mixing are sufficient, with a minimum gas consumption of ≤ 195g/kW · h, effectively reducing operating costs. Independent high-pressure ignition module, fast response speed, excellent cold engine start-up performance, automatic adjustment of air-fuel ratio under high and low altitude conditions, ensuring stable output power, reducing detonation risk, and adapting to complex gas source conditions in multiple overseas regions.
High strength alloy cylinder body, B10 lifespan of 80000 hours, water-cooled heat dissipation structure, high temperature resistance and dust resistance. The overall layout of the machine is compact, occupying a small space, making it easy to integrate cabin type and containerized generator sets. Comes with multiple protections: overspeed, high temperature, low oil pressure, abnormal gas protection, automatic fault alarm and shutdown, reducing the risk of equipment damage, centralized maintenance points, and convenient maintenance.
It can be used as a main or backup power source, covering power supply for mines, construction sites, remote villages and towns, and oil and gas projects. It supports 50Hz overseas mainstream power grids and can be matched with parallel control cabinets to achieve multi machine parallel operation. The whole machine has undergone overseas reliability testing, with strong universality of components, complete supply of spare parts, and adaptability to projects in multiple regions around the world.
| 型号 Model | 单位Unit | HMT12F.38030 | HMT12F.408 32 | HMT13F.40B 30 | HMT13F.435 32 |
| 额定功率/转速 Rated power/Speed | kW/r/min | 280/1500 | 300/1800 | 300/1500 | 320/1800 |
| 超负荷功率 Overload power/Speed | kW/r/min | 308/1500 | 330/1800 | 330/1500 | 352/1800 |
| 型式 Type | 立式直列水冷四冲程 Vertical Inline Water-cooled four stroke | ||||
| 吸气方式 Intake way | 增压中冷 Turbo-charged&inter-cooled | ||||
| 缸数 Number of cylinders | 6 | 6 | 6 | 6 | |
| 缸径x行程BorexStroke | mmxmm | 128x153 | 128x153 | 130x161 | 130x161 |
| 压缩比 Compressionratio | 12:01 | 12:01 | 11.5:1 | 11.5:1 | |
| 排量 Displacement | L | 11.8 | 11.8 | 12.8 | 12.8 |
| 油耗 Specific fuel consumption | g/kW.h | ≤190 | ≤191 | ≤192 | ≤192 |
| 机油容量 Oil capacity | L | 38 | 38 | 41 | 41 |
| 噪声 Noise | ≤97dB(A) | ||||
| 排放水平 Emission level | GB20891 China Phase III | ||||
| 长x宽x高 LxWxH | mm | 1360x898x 1138 | 1360x898x 1138 | 1436x939x1479 | 1436x939x1479 |
| 重量 Weight | kg | 1065 | 1065 | 1078 | 1078 |
1. Compact and Lightweight: Optimized for volume and weight, convenient for unit cabin integration, reducing transportation and installation space costs.
2. Excellent gas economy: Closed loop lean combustion electronic control, excellent gas consumption performance, and lower fuel costs for long-term operation.
3. Strong adaptability to working conditions: Automatic air-fuel ratio adjustment, suitable for CNG gas sources with different methane concentrations, stable operation at high and low altitudes.
4. High durability and long lifespan: Strengthened cylinder block crankshaft design, B10 lifespan of 80000 hours, reducing downtime maintenance frequency.
5. Comprehensive security protection: Multiple fault warning protection, centralized maintenance points, simple and efficient overseas on-site maintenance.
Customer 1 (Procurement Manager for African Mining Projects): We have deployed CAMC compact CNG generator engines for off‑site mine power supply. Stable power output, good gas‑saving performance, and local technicians can complete routine maintenance easily.
Customer 2 (Southeast Asian power station integrator): Compact layout helps us shrink container genset dimension. Reliable performance under hot‑humid climate, spare parts delivery support is satisfactory for our project cycles.
Q1: What fuel gas can this CAMC compact CNG generator engine use?
A: It mainly runs on CNG, also compatible with gas where methane content ≥85%.
Q2: What is the rated speed and power for generator matching?
A: Rated speed 1500rpm, prime power 220kW for 50Hz generator set.
Q3: Can the engine work at high altitude?
A: Yes, the ECU automatically adjusts air fuel ratio to adapt high altitude conditions.
Q4: What is the B10 service life of this CNG engine?
A: B10 life reaches 80 000 working hours under standard operating conditions.
Q5: What’s your warranty term?
A: Standard warranty: 12 months or 3000 working hours, whichever comes first.
