ESSENTIAL DETAILS
| Type | Battery replacement type of dock tractor |
| Model | HN4180D20C8BEV |
| Driving model | 4×2 |
| Wheelbase (mm) | 3800 |
| Overall dimension (mm) | 6170×2550×3450 |
| Kerb weight (Kg) | 9500 |
| GVW (kg) | 42000 (Overload:75T) |
| Front/Rear radius of gyration (mm) | 1800/1600 |
| Ratio of driving axle | 16T（Optional:13T）/ Ratio:11.98 |
| Motor type | Permanent magnet synchronous moto |
| Motor rated/peak power (kW) | 220/360 |
| Motor rated/peak power (N.m) | 1500/2100 |
| Gearbox | 4shift, AMT |
| Power Battery | Lithium iron phosphate(CATL) |
| Power Battery specs | 618.24 V，281.92 kWh，141 kWh |
| 0~50km/h Acceleration time (s) | 20 |
| Maximum speed (km/h) | 40 |
| Maximum climbing grade (%) | 20 |
| Driving range under standard load combined condition (km) | 80~130 |
| Power on mode（charging/battery replacement | DC dual guns/battery replacement |
| Charging/battery replacement time | Charging 1h, Battery replacement＜6min |
PRODUCT Description
This is an on-site traction vehicle designed specifically for enclosed areas (e.g., ports, logistics parks, industrial factories), with core functions including on-site cargo turnover and container short-haul transportation. It features a short-wheelbase compact design, adapting to narrow passages in enclosed areas, and is equipped with a high-torque power system to efficiently tow heavy loads. It is a specialized device for improving on-site logistics turnover efficiency.
Site Adaptability: Short wheelbase + compact body, enabling flexible steering and U-turns in site passages ≤3 meters wide, adapting to dense operating environments in ports/parks.
Heavy-Load Efficiency: High-torque power system supports heavy-load traction, with stable power output during start-up and low-speed travel, adapting to short-haul needs of containers and heavy cargo units.

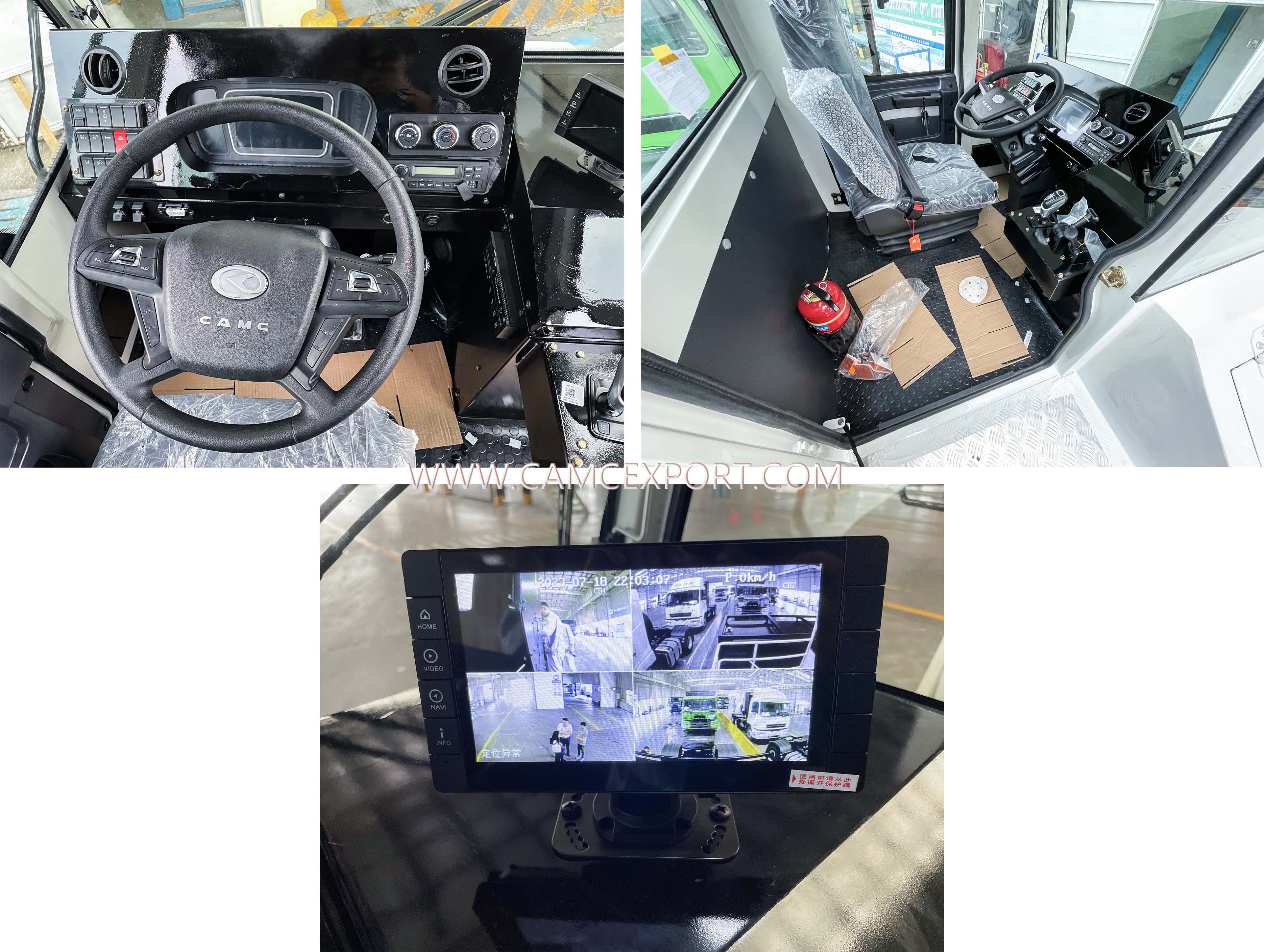

Safety Protection: Equipped with anti-collision warning lights and a wide-vision cab, covering blind spots more comprehensively during operation; reinforced front anti-collision guard reduces scratch risks in the site.
Low-Consumption & Durability: Adopts site-specific power calibration, with lower energy consumption under low-speed working conditions; key components use anti-corrosion materials, adapting to harsh environments such as high salt spray in ports.
Site Driving: Confirm no obstacles in the site passage before driving, and activate anti-collision warning lights; decelerate in advance when turning, and use the short wheelbase to turn with a small radius.
Traction Operation: Check the locking status of the traction device before hooking up cargo; step on the accelerator gently when starting with heavy loads, and maintain low-speed uniform travel (suggested speed ≤15km/h in the site).
Environment Adaptation: Rinse salt from the vehicle body after port operations, and clean chassis dust after industrial factory operations to avoid component corrosion/clogging.
Daily Inspection: Check tire pressure and brake system before daily operations; tighten the connecting bolts of the traction device weekly to ensure operational safety.
Body Dimensions: Short-wheelbase compact design, adapting to narrow site passages within 3 meters;
Power Configuration: High-torque site-specific power, supporting stable low-speed travel with heavy loads;
Protection Configuration: Anti-collision warning system + anti-collision guard, enhancing on-site operation safety;
Applicable Working Conditions: Traction weight covers 10-30 tons, adapting to enclosed sites such as ports and logistics parks.
"It can make a U-turn in narrow port passages in one go—much more efficient than the previous long vehicles."
"It doesn’t struggle to start with full loads; the power is stable when driving slowly in the site, and it has never broken down."
"After using it in a salt spray environment for over a year, the chassis hasn’t rusted much—it’s much more durable than ordinary vehicles."
COMPANY PROFILE
CAMC stands as a specialized enterprise dedicated to the automotive and transportation sector. We focus on delivering a versatile lineup of heavy-duty vehicles, featuring diverse drive configurations to cater to the unique operational demands of global clients.
Guided by a customer-centric philosophy, we are dedicated to delivering top-tier products and services, striving to maximize the value proposition for every client’s investment.
What sets us apart is our status as China’s sole manufacturer with full in-house capabilities to produce all truck components independently—a strength that underpins the exceptional reliability and efficiency of our vehicles. Beyond conventional models, we also pioneered the promotion of electric trucks across China, a forward-looking initiative that has garnered official endorsement and full compliance with industry certifications to fuel our ongoing innovation in this field.
Driven by an unwavering commitment to quality and technological advancement, CAMC is well-positioned to sustain its robust growth trajectory and secure lasting success in the global automotive and transportation landscape.
OUR FACTORY
Our company is committed to providing high-quality products and services to our customers. We have a team of experienced professionals who are dedicated to ensuring that our customers receive the best possible experience. We believe that our commitment to quality and innovation will help us continue to grow and succeed in the future.
FAQ
1.Q: Can the vehicle drive on open outdoor roads?
A: This is a site-specific vehicle, only suitable for enclosed site operations, and cannot be driven on public roads.
2.Q: Do parameters need to be adjusted when towing cargo of different weights?
A: No additional adjustment is required; the power system is already adapted to different loads within the rated range—just maintain low-speed travel.
3.Q: Can the anti-collision system identify moving obstacles?
A: It supports identifying moving/stationary obstacles within 10 meters, triggering sound and light warnings, and needs to be operated with the driver’s observation.
