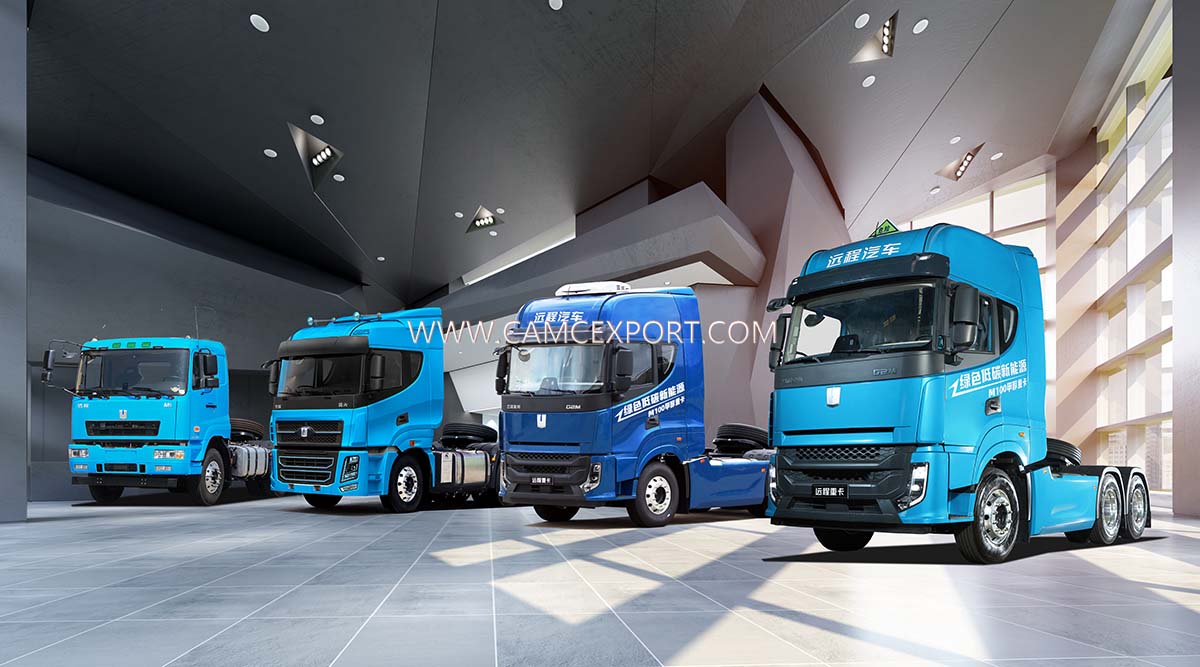

The CAMC M5 6 × 4 methanol tractor is a low-carbon, green and heavy-duty transportation equipment specially designed for the cold chain logistics industry. It focuses on the specialized transportation needs of temperature controlled goods and is widely suitable for urban distribution and long-distance cold chain transportation scenarios of fresh agricultural products, pharmaceutical products and other temperature controlled goods on intercity trunk lines. The vehicle is equipped with a GS11M380Y-60 professional methanol engine, with a rated power of up to 275kw. The power output is stable and abundant, and the operation is smooth and reliable, fully meeting the power needs of long-term continuous driving, high-speed cruising, and complex road conditions for cold chain transportation; The vehicle is equipped with dual sets of 360L+620L ultra large capacity methanol storage tanks, with sufficient total storage capacity, effectively extending the single driving range, reducing the frequency of refueling midway, and greatly improving the continuity and operational efficiency of long-distance transportation for cold chain fleets. Innovative integration of mature methanol clean energy powertrain and customized cold chain temperature control equipment ensures precise and stable temperature control throughout the entire cold chain transportation process while achieving low-carbon and zero sulfur emissions, green and compliant operation. It eliminates cargo loss caused by temperature control fluctuations and perfectly balances low-carbon transformation needs with high-quality cold chain transportation standards. Relying on a stable and reliable 6 × 4 heavy-duty chassis architecture, the vehicle has solid load-bearing performance and strong adaptability to working conditions, and can easily cope with diverse cold chain transportation scenarios such as long-distance trunk lines and urban traffic. With the comprehensive advantages of clean energy saving, long endurance, stable temperature control, and reliable operation, it has become the preferred main traction equipment for green upgrading, cost reduction, and efficiency improvement in the global cold chain logistics industry.
| Information about the truck | Model | JHC4250GM6N2 |
| Engine model | GS11M380Y-60 | |
| Engine power | 275 | |
| Geerbox | 12JSD180TA | |
| Type of fuel | Methanol | |
| Emission standards | GB14763-2005, GB17691-2018 | |
| Approach/departure angle | / | |
| Basic parameters | Overall dimension(mm) | 6860*2550*2950flat roof |
| Number of axles | 3 | |
| Wheelbase(mm) | 3400+1350 | |
| Wheel track(mm) | Front:2065 Rear:1860/1860 | |
| Front overhang/Rear overhang(mm) | / | |
| Drive form | 6*4 | |
| Kerb weight(Kg) | 8870 | |
| Maximum total mass(Kg) | 25000 | |
| Total mass of quasi-trailer(Kg) | 40000 | |
| Maximum speed(km/h) | 89Km/h | |
| Front Axle | 6T | |
| Middle rear Axle | HL439（3.7） | |
| Retarder | None | |
| Number of tires | 11(Spare tire included) | |
| Tire specifications | 12R22.5 18PR | |
| Methanol tank | 360L+620L | |
| Interior and exterior room arrangement | Skylight | None |
| Window | Power | |
| Main driver's seat | Airbag seats | |
| Rearview mirror | Normal | |
| Steering wheel | Multifunction steering wheel |
1. Exclusive methanol power, low-carbon compliant operation: Equipped with GS11M380Y-60 dedicated methanol engine, 275kw stable power output, abundant power and clean operation, zero sulfur and low emissions, in line with global cold chain logistics green and low-carbon transformation policies and environmental compliance requirements.
2. Extra large dual tank endurance, efficient long-distance operation: equipped with 360L+620L large capacity dual methanol storage tanks, with large liquid storage capacity and outstanding endurance, effectively reducing the number of intermediate refueling times, ensuring uninterrupted intercity long-distance cold chain transportation, and greatly improving the operational efficiency of the fleet.
3. Exclusive customization for cold chain, temperature control and stable cargo protection: Integrated with a customized temperature control matching system, it is precisely adapted to the methanol powertrain, with stable temperature locking throughout the process and high temperature control accuracy, effectively ensuring the transportation quality of temperature controlled goods such as fresh produce and drugs, and reducing the rate of cargo loss.
4. Full scenario cold chain adaptation with strong universality: Accurately adapting to the transportation of various temperature controlled goods such as agricultural products and pharmaceutical products, fully covering urban short distance distribution and intercity long-distance mainline cold chain scenarios, one vehicle is suitable for all categories of cold chain logistics operations.
5. Mature chassis architecture, stable, durable and reliable: 6 × 4 professional heavy-duty chassis design, solid load-bearing capacity, stable driving, suitable for long-term high-frequency continuous transportation conditions of cold chain, low failure rate, controllable operation and maintenance costs, suitable for long-term operation of large-scale fleets.
Temperature-Control Linkage: After starting the vehicle, you need to set the temperature-control parameters of the cold chain equipment synchronously through the central control terminal, and the system will automatically match the energy consumption strategy of power and temperature control;
Energy Replenishment Notes: When replenishing energy, confirm that the cold chain equipment is in low-power standby mode to avoid the impact of additional loads on energy replenishment efficiency;
Temperature-Control Inspection: During transportation, regularly check the cold chain cabin temperature data through the terminal to ensure the stable storage environment of the goods.
1. Southeast Asian cold chain logistics operator: “We mainly engage in long-distance cold chain transportation of fresh agricultural products, with high requirements for vehicle endurance, stability, and environmental compliance. The CAMC M5 methanol tractor has stable and sufficient power, and the dual methanol large fuel tank has strong endurance, fully meeting the needs of intercity long-distance uninterrupted transportation. The exclusive temperature control system has precise temperature control and maximizes the preservation of fresh goods quality. The methanol clean energy model complies with local environmental policies and has lower operating costs. It is the main model for our cold chain fleet's green upgrade. ”
2. International pharmaceutical cold chain purchaser: “Medical transportation has extremely high standards for temperature control stability and transportation safety. This M5 6 × 4 methanol tractor performs very well, with a smooth and stable powertrain operation and customized temperature control equipment that is precise and controllable, effectively ensuring the safety of pharmaceutical goods transportation. The vehicle has sufficient range, high attendance efficiency, low-carbon environmental protection, and significantly reduces long-term operating costs. It is suitable for urban distribution and long-distance mainline cold chain operations in all scenarios, with significant comprehensive cost-effectiveness advantages. ”
CAMC International is a leading enterprise in China's heavy-duty vehicle industry. As a national key R&D and production base for heavy-duty vehicles, specialized vehicles, and core components, the company has maintained a leading position in the industry since its establishment in the 1970s. As the only truck manufacturer in China with the ability to independently produce the entire industry chain including engines, transmissions, axles, chassis, and cab, CAMC has achieved complete autonomy and controllability from key components to the entire vehicle.
Relying on the research and development capabilities of national level technology centers, the company's products cover a full range of commercial vehicles such as heavy-duty trucks, engineering dump trucks, and special transport vehicles, which are widely used in infrastructure, mining, logistics, and other fields. With the advantage of a complete industrial chain and continuous technological innovation, CAMC not only occupies an important position in the domestic market, but also exports its products to more than 80 countries and regions around the world. As a high-end equipment manufacturing enterprise supported by national policies, the company is continuously promoting the upgrading and development of China's commercial vehicle industry towards intelligence and green direction.
Q: How do you control the quality of product?
A: Our facility operates a standardized production space and holds certifications like ISO, CCC, and BV. All staff are professionally trained, and every single product unit goes through a strict multi-step inspection before leaving the factory.
Q: What are the advantages of the new product？
A: It offers flexible system setups that balance weight, cost, and fuel efficiency perfectly. Plus, it integrates the engine with the generator directly, which boosts operational efficiency significantly.
Q: What are the smart features of this new product？
A: It includes blind-spot monitoring, driver behavior analysis, and connected-vehicle cloud services. Additional smart functions cover one-click activation of dust-suppression systems, real-time cargo tracking, remote automated replenishment, cylinder health checks, and monitoring of mileage, fuel use, and location.
Q: What's new about the new product?
A: It fully meets quality standards, resolving registration-related issues. Its dimensions and official declaration photos are fully compliant with regulatory requirements.
Q: How about your product after-sales service system?
A: We have dedicated after-sales support in most of our key export markets; for other regions, we partner with third-party service providers to ensure coverage.
Q: Why choose you?
A: Our brand has built a solid reputation over decades. We’re equipped with top-tier domestic technology, and our meticulous team ensures each product meets high-quality benchmarks—paired with reliable after-sales support.
Q: Do you accept custom order? What's is your MOQ order?
A: Customized orders are available, and our minimum order quantity is just 1 unit.
Q: What's the payment terms?
A: We accept telegraphic transfers (T/T) or sight letters of credit (L/C) as payment methods.
