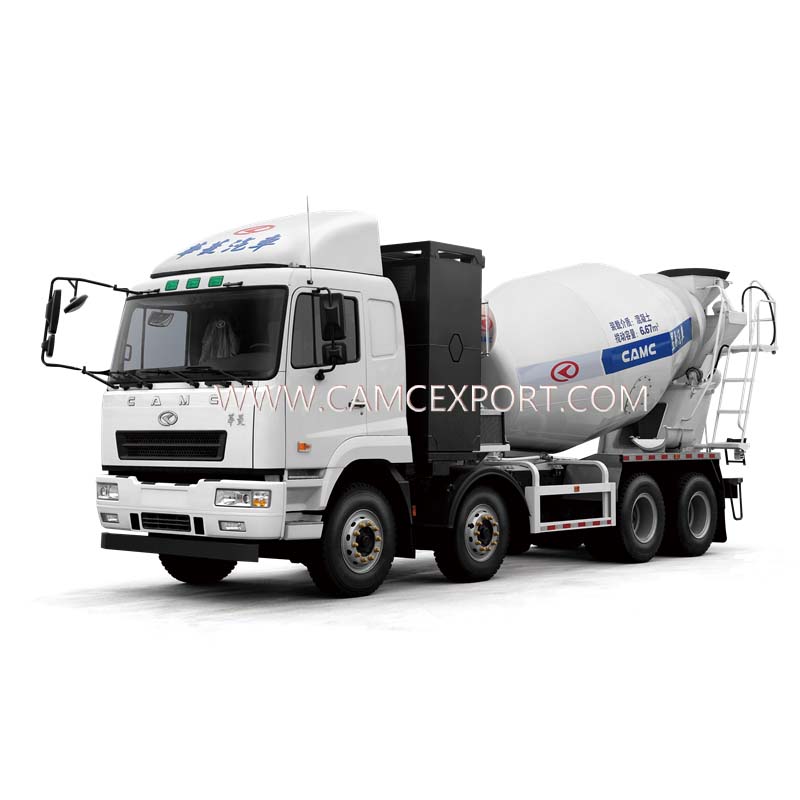

The CAMC 8 × 4 electric mixer truck adopts an efficient electric drive system, equipped with a 360kW high-power motor and an AMT 9-speed gearbox, with a peak torque of 2100N · m, strong power and fast response. Equipped with a 282kWh CATL high-density battery pack, it has a maximum range of 130km and a top speed of 85km/h, perfectly adapting to the high load requirements of concrete transportation.
The whole vehicle is designed with reinforced mixing drum and low center of gravity chassis, with a rated loading capacity of 12 cubic meters of concrete, and integrated with an intelligent temperature control system to ensure stable operation in all weather conditions from -30 ℃ to 50 ℃. Equipped with ABS+EBS electronic braking and 360 ° surround view monitoring as standard, ensuring safe operation in complex construction site environments. With zero emissions and low noise characteristics, it has become a benchmark model in the field of green building.
| Drive Mode | 8x4 |
| Battery brand | CATL |
| Battery power | 282kwh |
| Motor rated/peak power (kw) | 220/360 |
| Max. Speed (km/h) | 85 |
| Comprehensive driving range (km) | >100~130 |
| Gearbox | AMT 9 speed AMT |
| Transport Package | Standard Export |
| Trademark | CAMC |
| Production Capacity | 50000 |
| Fuel | Electric |
| Condition | New |
| Voltage and capacity | 618.24V,456Ah |
| Battery type | Lithium iron phosphate |
| Motor rated/peak torque (N.m) | 1500/2100 |
| Economic speed (km/h) | 40~60 |
| Replacement time | 3~5min |
| Charging time | 1h |
| Specification | 10950x2525x3960mm |
| Origin | China |
| PRODUCT NAME | Pure Electric Comfortable Heavy Duty Truck |
| COLOR | Red、White、Blue、Yellow and Others |
| TYPE | 8*4 |
Incorporating modular design concepts, using advanced design methods such as PRO/E three-dimensional software
The product has formed significant advantages of high efficiency, low residual rate, uniform mixing, longer service life, fuelsaving and environmental protection.
Super powerful performance
Equipped with a 360kW high-power motor and an AMT 9-speed gearbox, it has a peak torque of 2100Nm and a 30% increase in heavy-duty climbing ability compared to diesel vehicles. It can still maintain a high speed of 85km/h under full load conditions of 12 square concrete.
Long endurance and fast charging capability
Equipped with a 282kWh CATL high-density battery, it can travel up to 130km (full load) and supports dual gun fast charging (30% -80% battery only takes 40 minutes), perfectly matching the high-frequency transportation rhythm of the mixing plant.
Reliable operation across all climates
The intelligent temperature control system ensures stable battery performance in extreme environments ranging from -30 ℃ to 50 ℃. Key components have passed 500000 bench tests, with a failure rate below the industry standard of 40%.
Intelligent security protection
Integrated EBS electronic braking+360°surround view+blind spot monitoring system, reducing braking distance by 25%, with IP67 protection level suitable for dust and rain environments on construction sites.
Equipment Director of German Construction Group
"Our CAMC electric mixer truck has performed excellently in the Munich urban expansion project. When a 360kW motor drives a 12 square concrete tank, the noise is reduced by 65% compared to diesel vehicles, fully meeting the EU night construction standards. The 2100N · m torque provides no pressure for heavy-duty uphill driving, and the dual gun fast charging system perfectly matches the construction site's lunch break, increasing efficiency by 40%."
Operations Manager of Singapore Concrete Company
"Under the high temperature environment of the equator, this batch of mixer trucks has traveled a total of 80000 kilometers without any faults. The CATL battery pack maintains 95% capacity even after continuous operation at 35 ℃, and the automatic shifting strategy of the AMT gearbox reduces energy consumption by 18%. The most surprising thing is the intelligent scheduling system, which can automatically match the discharge rhythm of the mixing plant, and increase the daily transportation frequency of a single vehicle by 5 times."
CAMC International Trading Co., Ltd.is a branch company of CAMC, mainly in charge of overseas marketing. CAMC is the national priority production and research development base of heavy trucks, special purpose heavy vehicles and spare parts, which is also the state mainly supports enterprise.Located in Maanshan Economic and Technology Development Zone, Anhui, China, CAMC was found in 1970s and we are the only truck enterprise in China which is capable of producing everything on our own including engine, gearbox, axles, chassis, cabin and so on.Our company is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
For years, CAMC has been doing good and professional work in commercial vehicles. Our product covers a huge scope in this field, like tractor truck, dump truck, concrete mixers, pump truck, cargo truck, garbage truck, crane truck, bulk cement truck, tank-carrying truck, semitrailers and other special vehicles along with different driving form such as 4X2, 6X2, 6X4, 8X4, 10X4. The emission standard covers a range from EURO 2 to EURO 6.Besides,we are convinced that high-quality, systematic, comprehensive and efficient service are the foundation of our career development. With the goal of creating a domestic first-class service enterprise with strict management and advanced technology, we have formulated a "standardized management system, strict process control, guaranteed product management, and quality policy of customer satisfaction, adhered to the far side of customer first, and built good sales and series system, providing customers with high-quality pre-sale, in-sale and after-sale services.
Q: How do you control the quality of product?
A: Our facility operates a standardized production space and holds certifications like ISO, CCC, and BV. All staff are professionally trained, and every single product unit goes through a strict multi-step inspection before leaving the factory.
Q: What are the advantages of the new product？
A: It offers flexible system setups that balance weight, cost, and fuel efficiency perfectly. Plus, it integrates the engine with the generator directly, which boosts operational efficiency significantly.
Q: What are the smart features of this new product？
A: It includes blind-spot monitoring, driver behavior analysis, and connected-vehicle cloud services. Additional smart functions cover one-click activation of dust-suppression systems, real-time cargo tracking, remote automated replenishment, cylinder health checks, and monitoring of mileage, fuel use, and location.
Q: What's new about the new product?
A: It fully meets quality standards, resolving registration-related issues. Its dimensions and official declaration photos are fully compliant with regulatory requirements.
Q: How about your product after-sales service system?
A: We have dedicated after-sales support in most of our key export markets; for other regions, we partner with third-party service providers to ensure coverage.
Q: Why choose you?
A: Our brand has built a solid reputation over decades. We’re equipped with top-tier domestic technology, and our meticulous team ensures each product meets high-quality benchmarks—paired with reliable after-sales support.
Q: Do you accept custom order? What's is your MOQ order?
A: Customized orders are available, and our minimum order quantity is just 1 unit.
Q: What's the payment terms?
A: We accept telegraphic transfers (T/T) or sight letters of credit (L/C) as payment methods.
