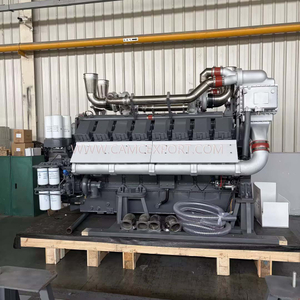

The CAMC CM6D28C.353 series diesel engine is a high-performance and high-power diesel engine under Hanma Power. It relies on CAMC's independent core technology and international advanced design concepts, and adopts advanced structural designs such as single overhead camshaft, integral cylinder head, symmetrical gantry cylinder block, inline six cylinder, four valve, four stroke, and rear gear chamber. The structure is compact and reasonable, and the operation is stable and reliable. It is widely suitable for various scenarios such as heavy trucks, engineering vehicles, ship power, generator sets, etc. It has passed international certifications such as China Classification Society and International Maritime Organization (IMO), and has been exported in batches to many countries and regions in Southeast Asia, Middle East, Africa, etc. It has been widely recognized by global users and demonstrates CAMC's technical strength in the field of diesel engines. Competitive edge in the global market. The core parameters of this engine are impressive, with a displacement of 11.8L, a rated power coverage of 160-320kw, a speed range of 1500-1800rpm, and equipped with Bosch high-pressure common rail fuel injection system. The maximum rail pressure can reach 1800Bar, and the fuel consumption rate is as low as 190g/kW · hour, balancing strong power and fuel economy. At the same time, it meets IMO II and Euro 4 and Euro 5 emission standards, and is suitable for environmental protection requirements in most regions around the world. The engine adopts modular design, with integrated layout of water pump, oil pump and other components for easy maintenance. The core components are selected from international first-class brands. After 70000 hours of bench durability testing, the B10 has a lifespan of over 1.5 million kilometers and outstanding durability, which can meet the needs of long-term high-intensity operation. At the same time, it has low-speed and high torque characteristics, good transient response, and can easily cope with complex working conditions such as heavy load and climbing. It provides efficient, reliable and environmentally friendly power solutions for users with various power needs around the world.
| Model | C6D28C.353 20(host) | CM6D28C.350.20 (auxiliary machine) |
| Type | Six-cylinder, in-line, water-cooled, In-cylinder direct injection | |
| Intake way | Turbocharging | |
| One of cylinders - Bore X Stroke (mm) | 6X128X153 | |
| Displacement (L) | 11.81 | |
| Compression ratio | 17±1 | |
| Rated power/speed (kw(Ps)/r/min) | 321/1800 | 318/1500 |
| One-hour power/speed (kw(Ps)/r/min) | 353/1800 | 350/1500 |
| Min specific fuel consumption (g/kw*h) | <190 | <198 |
| Oil fuel consumption ratio (%) | <0.1 | |
| Engine oil capacity (L) | 37L | |
| The Min steady operation speed | 600 | 1500 |
| Crankshaft rotation direction (see from power output oriented) | Anticlockwise | |
| Starting way | Electrical | |
| Net Weight (kg) | 1265 | |
| Overall dimensions (length X width X height) (mm) | 1780X984X1388 | |
| Certificate | CCS、IMO | |
1. Advanced structure, stable and efficient: Adopting advanced structures such as single overhead camshaft and integral cylinder head, with straight six cylinders and four valves matched with a rear gear chamber design, the structure is compact and runs smoothly. Combined with turbocharging intake method, it improves inflation efficiency and combustion adequacy, with outstanding transmission efficiency.
2. Strong power, adaptable to multiple scenarios: 11.8L large displacement, 160-320kw rated power, 1500-1800rpm speed range, abundant and stable power output, significant low-speed high torque characteristics, suitable for heavy vehicles, ships, generator sets and other diverse scenarios, strong ability to cope with complex working conditions.
3. Economic and environmentally friendly, durable and worry free: equipped with Bosch high-pressure common rail system, excellent fuel economy, with a minimum fuel consumption rate of less than 190 grams/kilowatt hour; Compliant with IMO II and multiple emission standards, environmentally friendly and pollution-free; B10 has a lifespan of 1.5 million kilometers, modular design, convenient operation and maintenance, and reduces long-term operating costs.
4. Global adaptability and reliable quality: Through international certifications such as international classification societies and IMO, we export in bulk to multiple overseas regions; International procurement of core components, rigorously tested and verified, with low failure rate, suitable for different regional working conditions and environmental requirements, and perfect after-sales service.
1. Technical Director of a Southeast Asian shipbuilding company: “Our ship propulsion system has extremely high requirements for engine reliability and power, and the CAMC CM6D28C.353 series diesel engine fully meets expectations. Advanced structures such as single overhead camshafts and integral cylinder heads operate smoothly, with a displacement of 11.8L and a power of 160-320kw covering our different ship needs. The stable operation at 1500-1800rpm meets IMO II emission requirements, with low fuel consumption and significantly reduced operating costs. It has also been certified by international ship classification societies and has been used in bulk with our ships. ”
2. The operation manager of a mine in Africa: “Our mine's generator sets and engineering vehicles have been operating at high intensity for a long time, and this CM6D28C.353 series engine performs outstandingly. The inline six cylinder and four valve design has strong power, with a rated power of 160-320kw that can easily meet heavy load requirements. The 1500-1800rpm speed is adapted to the working rhythm, and the modular design is easy to maintain. The B10 has a long service life and low failure rate, and has no obvious faults after long-term use. Coupled with comprehensive overseas after-sales support, it has become the core power equipment of our mine. ”
CAMC International Trading Co., Ltd.is a branch company of CAMC, mainly in charge of overseas marketing. CAMC is the national priority production and research development base of heavy trucks, special purpose heavy vehicles and spare parts, which is also the state mainly supports enterprise.Located in Maanshan Economic and Technology Development Zone, Anhui, China, CAMC was found in 1970s and we are the only truck enterprise in China which is capable of producing everything on our own including engine, gearbox, axles, chassis, cabin and so on.Our company is specialized in different kinds of products which can meet your multifarious demands. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.
For years, CAMC has been doing good and professional work in commercial vehicles. Our product covers a huge scope in this field, like tractor truck, dump truck, concrete mixers, pump truck, cargo truck, garbage truck, crane truck, bulk cement truck, tank-carrying truck, semitrailers and other special vehicles along with different driving form such as 4X2, 6X2, 6X4, 8X4, 10X4. The emission standard covers a range from EURO 2 to EURO 6.Besides,we are convinced that high-quality, systematic, comprehensive and efficient service are the foundation of our career development. With the goal of creating a domestic first-class service enterprise with strict management and advanced technology, we have formulated a "standardized management system, strict process control, guaranteed product management, and quality policy of customer satisfaction, adhered to the far side of customer first, and built good sales and series system, providing customers with high-quality pre-sale, in-sale and after-sale services.
Q: Do you have ISO certificate ?
A:Yes we have, please contact us to get our certificates
Q:How do you control the quality of your product?
A:Our factory has standard production worksho, gets ISO CCC BV certificates, our workers are well trained. Every unit of product undergoes a rigorous inspection process
Q:Besides diesel generator, what other products can buy ?
A:Diesel Truck,Electric Truck,Transmission,Charging Pile,Compressor.
Q:What's the payment?
A:By T/T or L/C at sight
Q:How about the after-sale service?
A:Our main export countries have accepted after-sales service,some countries use the third party service
Q:Why should you buy from us not from other suppliers?
CAMC is the national priority production and research development base of heavy truck, special purpose heavy vehicle and spare parts, which is also the state mainly supports enterprise.
Q:What services can we provide?
A:Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
