CAMC

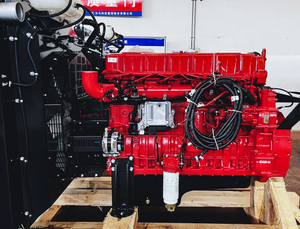

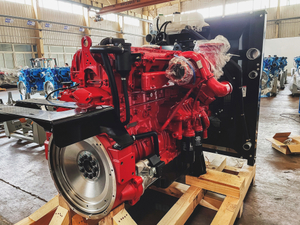

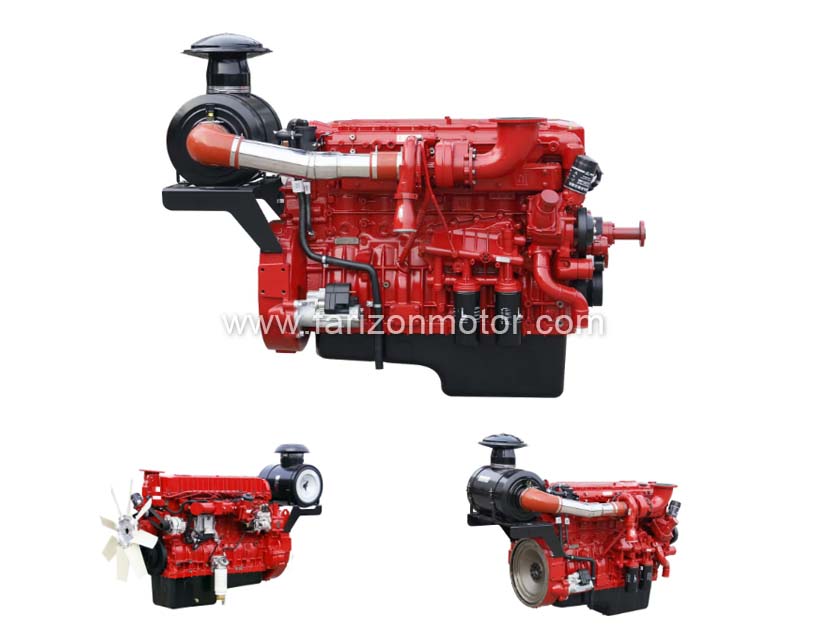

CAMC Hanma Power 11.81L marine engine is a new generation of high-end marine power product that integrates lightweight, intelligent, and green manufacturing. It has completely independent intellectual property rights and is specially designed for inland waterway and offshore operation ships. It has been adapted to the Yangtze River navigation and various types of offshore operation ships on a large scale. The rated power of the model is 321KW, the rated speed is 1800rpm, and the sustainable and stable output power is 380kW; The whole machine adopts aviation grade aluminum alloy material with modular structure design, which reduces weight by 25% compared to traditional marine engines. It is equipped with acoustic noise reduction optimization technology, and the operating noise is strictly controlled below 75dB, balancing strong power and quiet sailing experience. Relying on its self-developed hard core capabilities, Hanma Power has accumulated 43 invention patents, 135 utility model patents, and 25 appearance patents. With an international intelligent production base equipped with ABB industrial robots and Zeiss coordinate measuring machines, and four intelligent workshops for machining, assembly, thermal testing, and coating, Hanma Power has an annual production capacity of up to 50000 units and extremely high precision quality control. Equipped with a high-end intelligent common rail fuel system and variable geometry turbocharging technology, the fuel efficiency has increased by 15% year-on-year, significantly reducing the long-term shipping operating costs of ships; The whole machine has undergone 2000 hours of rigorous testing on a professional bench, and the core component B10 has a lifespan of up to 30000 hours. It is durable and adaptable to long-term water conditions, and equipped with a dedicated remote intelligent diagnostic system, it can achieve a 4-hour high-speed fault response, efficient and convenient operation and maintenance. With the advantages of lightweight, low noise, energy saving, and high reliability, it helps domestic high-end marine power to enter the global maritime market.
| Model | CM6D28C.353.20 | CM6D28C.350.20 |
| Type | Six-cylinder,in-line,water-cooled,In-cylinder direct injection | |
| Intake way | Turbocharging | |
| One of cylinders-Bore X Stroke (mm) | 6X128X153 | |
| Displacement (L) | 11.81 | |
| Compression ratio | 17±1 | |
| Rated power/speed (kw(Ps)/r/min) | 321/1800 | 318/1500 |
| One-hour power/speed (kw(Ps)/r/min) | 353/1800 | 350/1500 |
| Min specific fuel consumption (g/kw*h) | <190 | <198 |
| Oil fuel consumption ratio (%) | <0.1 | |
| engine oil capacity (L) | 37L | |
| The min steady operation speed (r/min) | 600 | 1500 |
| Crankshaft rotation direction (see from power output oriented) | Anticlockwise | |
| starting way | Electrical | |
| Net weight (kg) | 1265 | |
| Overall dimensions (length X width X height) (mm) | 1780X984X1388 | |
| Certificate | CCS,IMO | |
1. Self research and independent property rights, excellent precision and quality: With a complete set of independent intellectual property rights and multiple national patents, relying on an international intelligent factory equipped with ABB robots and Zeiss precision testing equipment, four digital workshops for closed-loop production, high precision and stable quality control of the whole machine, sufficient annual production capacity, and strong delivery capability.
2. Lightweight and low-noise design, high adaptability to ships: using aviation grade aluminum alloy fuselage and modular integrated structure, the whole machine reduces weight by 25%, effectively reducing ship load and saving installation space; Professional acoustic optimization and tuning, with a working noise level of less than 75dB, optimized navigation and riding environment, suitable for retrofitting and carrying ships in inland and offshore waters.
3. Abundant power and energy saving, reducing shipping costs and increasing efficiency: 11.81L golden displacement, rated power of 321KW, continuous power up to 380kW, stable power output suitable for complex water conditions; Equipped with intelligent common rail fuel system and variable cross-section turbine technology, the fuel efficiency is improved by 15%, and the long-term reduction of ship fuel operating expenses is achieved.
4. Ultimate durability and reliability, suitable for long-term water operations: After 2000 hours of full condition bench testing, the core component B10 has a service life of up to 30000 hours, is corrosion-resistant and anti bumpy, suitable for complex water conditions such as high humidity, high salt spray, and inland rivers, with an extremely low failure rate.
5. Intelligent operation and maintenance are worry free, and after-sales response is efficient: equipped with a dedicated remote intelligent diagnostic system, the engine operation data is monitored 24/7, achieving 4-hour high-speed fault diagnosis and response, reducing the length of ship downtime for maintenance, and ensuring uninterrupted navigation of ships in inland waterways and offshore areas.
1. Southeast Asian offshore shipping owners: “The salt spray corrosion in the Southeast Asian offshore waters is strong, and the durability requirements for marine engines are extremely high. CAMC Hanma marine engines have a lighter weight, lower sailing noise, continuous and stable power, and save a lot of fuel consumption compared to old models. Remote fault diagnosis is very convenient, and the downtime for maintenance is greatly reduced, which is suitable for our normal operation of offshore freight transportation. ”
2. Cross border inland waterway transportation operator: “We are equipped with this engine in bulk for cross-border inland waterway transportation. The whole machine is well crafted, easy to install, and runs smoothly for long-term water navigation. Its durability far exceeds that of imported models in the same price range. The brand has strong intelligent manufacturing capabilities, timely supply of overseas spare parts, energy-saving and fuel-efficient, and low-cost operation and maintenance, making it a cost-effective choice for marine power. ”
CAMC International Trade Co., Ltd. is located in Ma'anshan Economic and Technological Development Zone, Anhui Province. It is one of the first batch of national vehicle export base enterprises, fully responsible for the global market development, customized modification, cross-border delivery, and full cycle after-sales service of CAMC's entire range of vehicles, powertrains, industrial supporting equipment, and original parts. It has complete import and export qualifications for vehicles, engines, and industrial air compressors.
The group was founded in 1970 and has been deeply involved in the manufacturing of heavy equipment for more than 50 years. It is one of the few domestic enterprises that has achieved independent research and development and integrated production of the five core components of the cab, chassis, gearbox, axle, and engine. It has established a national enterprise technology center, industrial design center, and postdoctoral research workstation, and has built a complete automated intelligent production line and a strict quality inspection system throughout the entire process. The enterprise has established a dual core green technology route of pure electric and methanol alcohol hydrogen, and is also the only manufacturing base in the world to achieve full scenario mass production of methanol power. All products have undergone millions of kilometers of extreme working condition durability testing and are suitable for complex operating environments such as high temperature, high dust, and high humidity worldwide.
The company has built a complete product matrix covering land transportation, shipping, and powder industry transportation, fully matching overseas diversified heavy-duty needs:
1. Heavy commercial vehicles: H7 series 6 × 4 port zero emission electric tractor, G2 diesel/methanol long-distance tractor, engineering dump truck, concrete mixer truck, powder material tank truck, taking into account mainline logistics, port transportation, mining infrastructure, and urban construction;
2. Multi scenario power equipment: 11.81L, GS06M series marine diesel engines, M100 pure methanol engines, suitable for inland and offshore ships, generator sets, and engineering machinery matching;
3. Industrial specific supporting equipment: BDW-FUDA non lubricated swing air compressor, providing 100% oil-free clean compressed air for powder transportation, chemical, and food industries;
4. Simultaneously provide a complete set of original spare parts, supporting two cooperation modes: whole vehicle container export and CKD assembly of individual parts.
The company adheres to the concept of precision overseas and green win-win development, relying on Geely's global industrial and methanol power technology advantages, and continues to increase the overseas promotion of zero emission electric and low-carbon methanol equipment. Compared with traditional fuel equipment, the product has core advantages such as lower energy consumption, lower operation and maintenance costs, and strong environmental compliance, which greatly reduces costs and increases efficiency for overseas logistics, engineering, and shipping companies. In the future, CAMC International will continue to expand its global channel layout, improve its localized maintenance service ecosystem, create a trusted benchmark brand for China's heavy equipment exports, and work with domestic and foreign partners to build a new global industrial cooperation pattern of long-term stability and mutual benefit.
A: It is a 6-cylinder, inline, four-stroke, turbocharged intercooled marine diesel engine with a displacement of 11.81L. The power range covers 220kW to 330kW, matched with medium and small fishing vessels, cargo barges, passenger boats and marine generator sets.
A: It complies with IMO Tier II international marine emission regulations and has passed CCS China Classification Society certification. It meets the access requirements for inland waterway and coastal ships in most countries.
A: Multiple cooling solutions are available to match different ship installation conditions, including heat exchanger cooling, keel cooling and radiator forced air cooling. We can adjust the cooling system configuration according to customer hull layout.
A: It adopts reinforced crankshaft and cylinder block structure, strong torque at low speed, stable power output under long-term full-load operation. The fuel injection system optimizes combustion efficiency, lowering fuel consumption and operating cost. It has fewer vulnerable parts and simple daily maintenance.
A: Yes. We support matching various marine reduction gearboxes, remote throttle control systems and full digital monitoring panels. The instrument can display rotating speed, water temperature, oil pressure, exhaust temperature and fault alarm information in real time.
A: It adapts to fresh water and seawater cooling environments, stable operation under high humidity and bumpy marine conditions. It can run continuously for long hours, ideal for main propulsion power of coastal and inland vessels as well as auxiliary generator power.
A: The warranty period is 2 years or 2000 operating hours, whichever comes first. We supply original marine spare parts globally, provide 24/7 online technical consultation, and support on-site installation guidance and operation training upon request.
