Product Overview

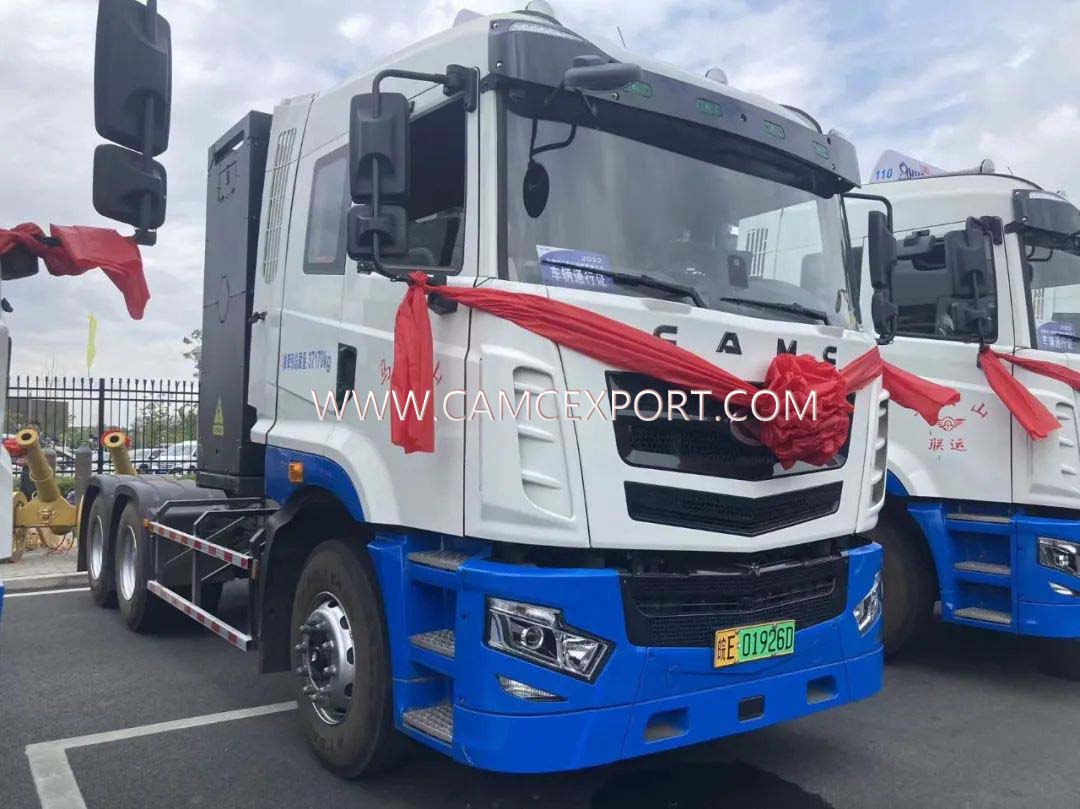

The CAMC H7 6 × 4 electric tractor is a new energy benchmark product specially designed for heavy-duty logistics transportation. It is equipped with a 360kW high-power permanent magnet synchronous motor and a Hanma 9-speed AMT intelligent transmission, with a peak torque of 2400N · m. Combined with CATL high-energy density lithium iron phosphate battery pack, it can achieve a single charge endurance of 400 kilometers (C-WTVC working condition). The whole vehicle has passed a rigorous road test of 700000 kilometers, and the three electric system maintains stable output even in extreme environments ranging from -30 ℃ to 50 ℃, supporting fast charging to 80% of battery capacity in 1 hour. Adopting a lightweight integrated frame design, with a rated load capacity of 49 tons, equipped with an intelligent dual stage braking energy recovery system (recovery efficiency ≥ 30%) and a four channel EBS+ESC electronic control system, the braking performance of heavy-duty downhill is improved by 35%. The driver's cabin is equipped with fully suspended air suspension and ergonomic seats, with a 12.3-inch full LCD instrument panel and a 15 inch intelligent central control screen. NVH optimization keeps the cabin noise within 58dB. This model has passed the latest EU ECE R100.03 electric vehicle safety certification, making it particularly suitable for high-intensity transportation scenarios such as port containers and steel plant short haul ships. Currently, it has achieved mass operation in markets such as Northern Europe and Southeast Asia.
Technical parameters
| Drive Wheel | 6×4 |
| Seats | ≤5 |
| Horsepower | 360kw |
| Engine Capacity | 282kwh |
| Tire Certification | ECE, GCC, ISO, DOT, ECE, GCC, ISO |
| Tire Design | Radial |
| Condition | New |
| Battery Brand | CATL |
| Voltage and Capacity | 618.24V, 456Ah |
| Battery Power | 282kwh |
| Battery Type | Lithium iron phosphate |
| Motor Rated/Peak Torque(N.m) | 1500/2100 |
| Comprehensive Driving Range (km) | 150~170 |
| Charging Time | 1.5h |
| Gearbox | 9 speed AMT with PTO |
| Kerb Weight(kg) | Standard 11000, overload 12500 |
| Wheelbase(mm) | 3800+1350 |
| Transport Package | Standard Export |
| Specification | 7390x2550x3835mm |
| Trademark | CAMC |
| Origin | China |
| Production Capacity | 50000 |
Our Advantage
Super Power System
Equipped with a 360kW high-power permanent magnet synchronous motor with a peak torque of 2400N · m, coupled with a Hanma 9-speed AMT intelligent transmission, it can accelerate from 0-50km/h in just 25 seconds and has a 30% ability to climb slopes under heavy loads
Excellent battery life performance
Adopting CATL high-density lithium iron phosphate battery, with a single charge range of 400 kilometers (C-WTVC working condition), supporting 1-hour fast charging to 80% of battery capacity, meeting the requirements of high-intensity continuous operation
Ultimate safety and reliability
Passed the latest EU ECE R100.03 safety certification, equipped with a four channel EBS+ESC electronic control system and an intelligent dual stage braking energy recovery system (recovery efficiency ≥ 30%)
Intelligent Comfort Experience
12.3-inch full LCD instrument panel+15 inch intelligent central control screen, integrated fleet management system, NVH optimization ensures cabin noise ≤ 58dB, fully suspended air suspension enhances driving comfort
Our Factory
CAMC International Trade Co., Ltd. is a core subsidiary of China National Machinery Industry Corporation (ChemChina) that focuses on overseas markets. Leveraging the strong industrial resources of its parent company, CAMC is committed to global promotion and technical services for heavy-duty and specialized vehicles. As a national key R&D and production base for heavy-duty vehicles and components, the company has industry-leading technological strength and manufacturing capabilities. Its products cover multiple fields such as tractor, dump truck, and specialized vehicle, and are widely used in logistics, engineering, and special transportation markets.
The company is headquartered in Huashan District, Ma'anshan City, Anhui Province. With a complete supply chain system and international strategic layout, its products are exported to Southeast Asia, the Middle East, Africa, Latin America and other regions. As a key supported enterprise by national policies, CAMC always adheres to the principle of technological innovation and quality priority, providing high reliability and cost-effective transportation solutions for global customers, and continuously enhancing the competitiveness of Chinese manufacturing in the international market.

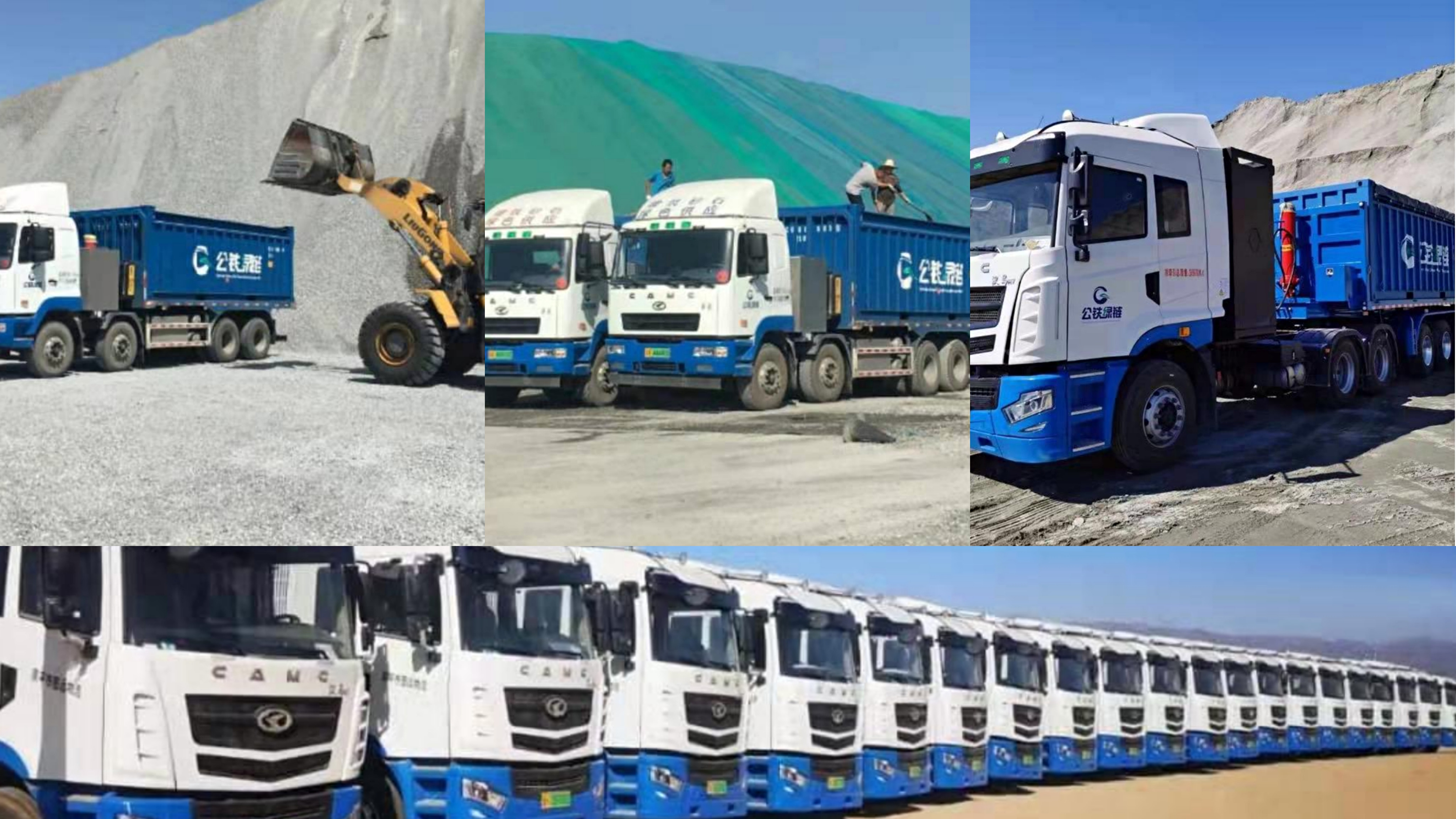

Successful Projects
Customer Reviews
Evaluation by the Operations Director of Nordic Logistics Company
“Our H7 fleet has performed excellently on the Sweden Norway extreme cold transport line, maintaining 92% of the nominal battery range in a -25 ℃ environment. Fast charging technology stabilizes the daily operating mileage at 380 kilometers, and the intelligent thermal management system completely solves the range anxiety in cold regions. Suggest adding charging interface options for Nordic languages."
Feedback from the Technical Director of Southeast Asia Port Group
“The 30 H7 electric tractors at Singapore port operate for an average of 20 hours per day, and after two years of cumulative operation, the battery health level still reaches 88%. The instantaneous torque of 2400N · m increases the efficiency of loading and unloading 40 foot containers by 25%, and the dual stage energy recovery system saves approximately SGD 12000 in electricity bills annually. It is recommended to strengthen the moisture-proof coating of the motor compartment during the rainy season."
FAQ
Q: How many engines can your factory produce annually?
A: Hello, we can produce nearly 100000 units annually. Nearly 8500 units per month.
Q: Do you accept custom order? What's is your MOQ order?
A:Yes, we do. Our MOQ is 1 unit.
Q: Do you have ISO certification?
A: Yes, we have ISO, CCC, BV certifications. Please contact us to obtain the certificate.
Q:How about the delivery time?
A: Most of our trucks have stock and we can deliver to you within 7 days. If specially ordered, normally we need around 30 days for production.
Q: What is the warranty?
A:Two years or 5 thousand hours. We offer all spare parts free of charge during warranty period. After this period, spare parts are not free. What's more, a set of spare parts will be shipped together with engine and generator set free of charge.
Q:How to choose the right model?
A:It depends on continuous output power, Voltage, Frequency and fuel type.
Q:How is the after sale service and maintenance ?
A : We offer installation, repair and maintain service abroad. And online quide service if needed anytime. Our before-sale, in-sale and after-sale service are all trustable, you can name it.
Q: How do you control the quality of the product?
A: Our factory has standard production workshops and our workers are well-trained. Every product undergoes a rigorous inspection process.
Q: How about your product after-sales service system?
A:Our main export countries have accepted after-sales service, some countries use the third party service.
Q: What's the payment terms?
A:By T/T or L/C at sight.
Q: How about shipment?
A:20FT container, 40FT container, 40FT high container, open-top container, flat bed container, Ro-Ro ship or bulk
ship according to the size the products.
Q:Which country do you have exported to?
A:We have exported to More than 60 countries and regions in Eastern Europe, North Africa, Southeast As
